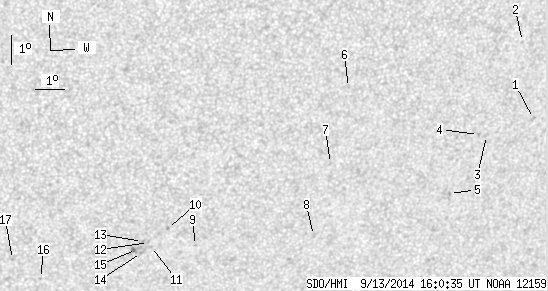

SDO HMI 2014-09-13 16:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 22.94 | 0.00 | 14.16 | -23.67 | 72.72 | 19.19 | 210.41 | 0.5974 | -105.7 | -145.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-13 16:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.69 | 0.00 | 1.09 | -21.09 | 81.89 | 28.36 | 223.93 | 0.6412 | 578.0 | 566.1 | |
| 0.00 | 0.80 | 0.00 | 0.50 | -18.44 | 80.99 | 27.46 | 226.20 | 0.6084 | -401.0 | -347.6 | |
| 0.00 | 1.51 | 0.00 | 0.96 | -21.57 | 80.27 | 26.74 | 221.74 | 0.6309 | 593.0 | 413.5 | |
| 0.00 | 1.07 | 0.00 | 0.68 | -21.52 | 79.97 | 26.44 | 221.48 | 0.6277 | 731.0 | 601.3 | |
| 0.00 | 0.98 | 0.00 | 0.63 | -23.52 | 79.32 | 25.79 | 218.61 | 0.6416 | 781.0 | 652.3 | |
| 0.00 | 0.71 | 0.00 | 0.43 | -19.65 | 75.07 | 21.54 | 217.94 | 0.5646 | 679.0 | 579.5 | |
| 0.00 | 0.98 | 0.00 | 0.60 | -22.23 | 74.83 | 21.30 | 214.81 | 0.5912 | 672.0 | 556.9 | |
| 0.00 | 2.13 | 0.00 | 1.34 | -24.74 | 74.65 | 21.12 | 212.11 | 0.6180 | 531.0 | 471.8 | |
| 0.00 | 0.98 | 0.00 | 0.60 | -24.90 | 70.52 | 17.00 | 206.72 | 0.5919 | -677.0 | -575.5 | |
| 0.00 | 1.16 | 0.00 | 0.70 | -24.26 | 69.47 | 15.94 | 205.81 | 0.5773 | -810.0 | -697.5 | |
| 0.00 | 1.16 | 0.00 | 0.70 | -24.88 | 69.00 | 15.47 | 204.65 | 0.5823 | -655.0 | -587.9 | |
| 0.00 | 0.53 | 0.00 | 0.32 | -24.73 | 68.87 | 15.35 | 204.60 | 0.5797 | -780.0 | -710.0 | |
| 0.00 | 1.42 | 0.00 | 0.86 | -24.69 | 68.66 | 15.13 | 204.33 | 0.5779 | -567.0 | -564.6 | |
| 0.00 | 1.24 | 0.00 | 0.76 | -25.08 | 68.68 | 15.15 | 204.05 | 0.5830 | -612.0 | -498.3 | |
| 0.00 | 4.62 | 0.00 | 2.81 | -24.97 | 68.49 | 14.96 | 203.88 | 0.5804 | -768.0 | -731.2 | |
| 0.00 | 0.89 | 0.00 | 0.54 | -25.90 | 65.30 | 11.77 | 198.64 | 0.5763 | -593.0 | -509.2 | |
| 0.00 | 1.07 | 0.00 | 0.64 | -25.19 | 64.28 | 10.75 | 197.54 | 0.5621 | -499.0 | -423.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
