SDO HMI 2014-09-13 18:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 88.44 | 400.68 | 65.18 | 294.07 | -14.89 | 94.90 | 42.48 | 242.11 | 0.7401 | -244.1 | -208.7 | |
|
previous
or next observation for the same group /

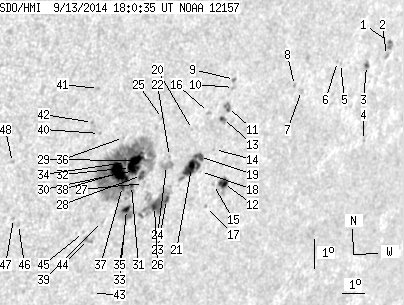

back to the solar disc SDO HMI 2014-09-13 18:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.71 | 4.71 | 0.62 | 4.13 | -11.78 | 104.91 | 52.48 | 250.33 | 0.8267 | 670.1 | 592.4 | |
| 0.00 | 2.67 | 0.00 | 2.34 | -12.19 | 104.87 | 52.44 | 249.85 | 0.8276 | 637.0 | 532.9 | |
| 1.33 | 2.67 | 1.15 | 2.30 | -12.41 | 103.92 | 51.50 | 249.25 | 0.8195 | 743.9 | 552.1 | |
| 0.00 | 1.16 | 0.00 | 1.03 | -14.87 | 104.53 | 52.11 | 246.66 | 0.8329 | 281.0 | 240.1 | |
| 0.00 | 1.07 | 0.00 | 0.89 | -12.21 | 102.59 | 50.16 | 248.97 | 0.8063 | 350.0 | 408.3 | |
| 0.00 | 0.80 | 0.00 | 0.66 | -12.13 | 102.42 | 50.00 | 249.00 | 0.8044 | 544.0 | 503.4 | |
| 0.00 | 2.58 | 0.00 | 2.08 | -12.90 | 100.91 | 48.49 | 247.48 | 0.7924 | 541.0 | 485.1 | |
| 0.00 | 1.16 | 0.00 | 0.93 | -12.70 | 100.53 | 48.11 | 247.55 | 0.7880 | 579.0 | 550.1 | |
| 0.00 | 1.69 | 0.00 | 1.28 | -12.24 | 97.71 | 45.28 | 246.86 | 0.7575 | -497.0 | -468.6 | |
| 0.00 | 1.33 | 0.00 | 1.01 | -12.50 | 97.72 | 45.30 | 246.55 | 0.7587 | -443.0 | -377.5 | |
| 0.00 | 5.33 | 0.00 | 4.05 | -13.12 | 97.60 | 45.18 | 245.72 | 0.7600 | -688.0 | -567.1 | |
| 6.22 | 12.27 | 4.86 | 9.59 | -15.61 | 98.07 | 45.65 | 242.95 | 0.7755 | 607.6 | 93.6 | |
| 1.33 | 3.91 | 1.01 | 2.97 | -13.46 | 97.46 | 45.04 | 245.24 | 0.7600 | -588.3 | -429.8 | |
| 0.00 | 0.89 | 0.00 | 0.68 | -14.45 | 97.35 | 44.93 | 243.99 | 0.7632 | 680.0 | 596.8 | |
| 0.00 | 0.98 | 0.00 | 0.76 | -15.60 | 97.62 | 45.19 | 242.74 | 0.7710 | 587.0 | 510.8 | |
| 0.00 | 1.69 | 0.00 | 1.26 | -13.21 | 96.79 | 44.36 | 245.23 | 0.7520 | -635.0 | -532.9 | |
| 0.00 | 1.24 | 0.00 | 0.97 | -16.30 | 97.46 | 45.04 | 241.83 | 0.7727 | 409.0 | 357.4 | |
| 0.00 | 0.27 | 0.00 | 0.20 | -15.11 | 96.91 | 44.49 | 242.96 | 0.7618 | 278.0 | 226.3 | |
| 4.09 | 29.87 | 3.09 | 22.54 | -14.61 | 96.73 | 44.31 | 243.48 | 0.7578 | 793.5 | 511.5 | |
| 0.00 | 0.80 | 0.00 | 0.59 | -13.70 | 96.21 | 43.78 | 244.33 | 0.7482 | -578.0 | -475.6 | |
| 14.40 | -19.00 | 10.87 | -19.00 | -14.94 | 96.47 | 44.05 | 242.94 | 0.7566 | 770.6 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.66 | -14.49 | 95.41 | 42.98 | 242.93 | 0.7436 | 485.0 | 418.8 | |
| 2.31 | 68.81 | 1.73 | 50.94 | -15.90 | 95.64 | 43.22 | 241.34 | 0.7528 | 566.8 | 56.7 | |
| 0.00 | 9.87 | 0.00 | 7.29 | -14.78 | 95.35 | 42.93 | 242.55 | 0.7444 | -97.0 | -108.0 | |
| 0.00 | 1.24 | 0.00 | 0.90 | -13.22 | 94.82 | 42.40 | 244.20 | 0.7314 | -573.0 | -481.3 | |
| 2.76 | -23.00 | 2.05 | -23.00 | -16.09 | 95.17 | 42.75 | 240.86 | 0.7490 | -324.8 | 999999 | |
| 0.00 | 2.49 | 0.00 | 1.82 | -15.28 | 94.50 | 42.07 | 241.46 | 0.7381 | -429.0 | -286.2 | |
| 3.02 | 224.11 | 2.20 | 160.80 | -15.01 | 94.34 | 41.92 | 241.71 | 0.7351 | -581.6 | -409.6 | |
| 11.11 | -28.00 | 8.01 | -28.00 | -14.50 | 94.01 | 41.59 | 242.16 | 0.7291 | -951.9 | 999999 | |
| 5.07 | -28.00 | 3.66 | -28.00 | -14.82 | 94.00 | 41.58 | 241.76 | 0.7306 | -708.2 | 999999 | |
| 1.51 | -28.00 | 1.10 | -28.00 | -15.30 | 93.99 | 41.57 | 241.15 | 0.7330 | -250.8 | 999999 | |
| 3.64 | -28.00 | 2.62 | -28.00 | -14.70 | 93.81 | 41.39 | 241.79 | 0.7280 | -983.0 | 999999 | |
| 3.02 | -23.00 | 2.21 | -23.00 | -16.08 | 93.98 | 41.56 | 240.19 | 0.7369 | 722.8 | 999999 | |
| 3.29 | -28.00 | 2.36 | -28.00 | -14.52 | 93.56 | 41.14 | 241.88 | 0.7244 | -960.3 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.72 | -16.58 | 94.07 | 41.64 | 239.64 | 0.7404 | -730.0 | -559.7 | |
| 0.00 | 0.89 | 0.00 | 0.63 | -13.69 | 93.30 | 40.87 | 242.77 | 0.7174 | -646.0 | -566.4 | |
| 1.96 | -28.00 | 1.41 | -28.00 | -15.30 | 93.62 | 41.20 | 240.94 | 0.7291 | -518.9 | 999999 | |
| 22.67 | -28.00 | 16.23 | -28.00 | -14.83 | 93.38 | 40.96 | 241.39 | 0.7241 | -1038.0 | 999999 | |
| 0.00 | 1.42 | 0.00 | 1.03 | -16.39 | 93.05 | 40.63 | 239.26 | 0.7291 | -248.0 | -281.4 | |
| 0.00 | 1.07 | 0.00 | 0.74 | -13.48 | 92.27 | 39.85 | 242.45 | 0.7051 | -707.0 | -612.4 | |
| 0.00 | 0.98 | 0.00 | 0.67 | -12.02 | 91.96 | 39.53 | 244.17 | 0.6940 | -687.0 | -586.6 | |
| 0.00 | 0.80 | 0.00 | 0.55 | -13.10 | 91.91 | 39.49 | 242.73 | 0.6992 | -609.0 | -507.4 | |
| 0.00 | 0.89 | 0.00 | 0.66 | -18.78 | 93.29 | 40.87 | 236.54 | 0.7448 | -507.0 | -383.5 | |
| 0.00 | 3.64 | 0.00 | 2.62 | -16.94 | 92.61 | 40.19 | 238.32 | 0.7277 | -490.0 | -508.9 | |
| 0.00 | 0.98 | 0.00 | 0.70 | -16.69 | 92.34 | 39.92 | 238.46 | 0.7235 | -627.0 | -517.7 | |
| 0.00 | 1.78 | 0.00 | 1.22 | -16.20 | 89.61 | 37.18 | 237.28 | 0.6922 | -458.0 | -450.5 | |
| 0.00 | 1.24 | 0.00 | 0.85 | -15.98 | 89.36 | 36.94 | 237.38 | 0.6882 | -677.0 | -517.3 | |
| 0.00 | 1.51 | 0.00 | 1.01 | -14.14 | 88.95 | 36.53 | 239.48 | 0.6723 | -698.0 | -622.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
