SDO HMI 2014-09-13 18:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 36.19 | 0.00 | 22.42 | -24.09 | 71.98 | 19.56 | 210.63 | 0.6031 | -28.0 | -164.7 | |
|
previous
or next observation for the same group /

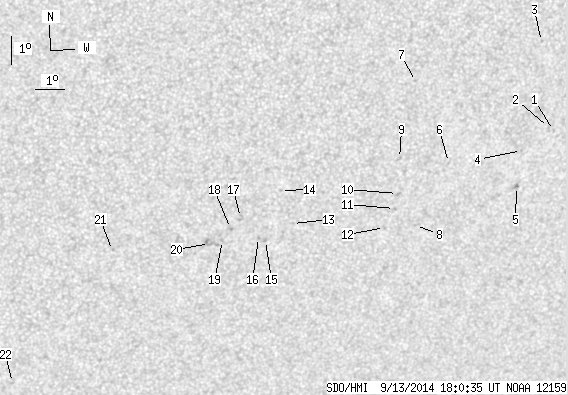

back to the solar disc SDO HMI 2014-09-13 18:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.98 | 0.00 | 0.63 | -21.66 | 80.21 | 27.78 | 222.69 | 0.6412 | 525.0 | 488.5 | |
| 0.00 | 0.80 | 0.00 | 0.51 | -21.55 | 80.00 | 27.58 | 222.62 | 0.6382 | 554.0 | 500.9 | |
| 0.00 | 0.71 | 0.00 | 0.44 | -18.59 | 79.19 | 26.77 | 225.29 | 0.6029 | -651.0 | -550.6 | |
| 0.00 | 0.71 | 0.00 | 0.46 | -22.28 | 79.16 | 26.74 | 220.93 | 0.6377 | 700.0 | 549.9 | |
| 0.00 | 2.13 | 0.00 | 1.39 | -23.54 | 79.25 | 26.82 | 219.66 | 0.6505 | 780.0 | 657.4 | |
| 0.00 | 1.07 | 0.00 | 0.67 | -22.55 | 76.57 | 24.15 | 217.85 | 0.6181 | 260.0 | 416.5 | |
| 0.00 | 0.98 | 0.00 | 0.59 | -19.69 | 74.93 | 22.51 | 219.10 | 0.5738 | 632.0 | 516.7 | |
| 0.00 | 0.71 | 0.00 | 0.45 | -24.71 | 75.80 | 23.38 | 214.76 | 0.6346 | 619.0 | 492.5 | |
| 0.00 | 1.87 | 0.00 | 1.15 | -22.31 | 74.79 | 22.37 | 216.02 | 0.6008 | 616.0 | 529.3 | |
| 0.00 | 1.42 | 0.00 | 0.89 | -23.53 | 74.93 | 22.51 | 214.93 | 0.6153 | 588.0 | 580.0 | |
| 0.00 | 1.33 | 0.00 | 0.84 | -24.06 | 74.92 | 22.50 | 214.39 | 0.6209 | 671.0 | 499.1 | |
| 0.00 | 1.51 | 0.00 | 0.96 | -24.72 | 74.69 | 22.26 | 213.47 | 0.6262 | 577.0 | 474.9 | |
| 0.00 | 1.07 | 0.00 | 0.66 | -24.41 | 71.37 | 18.95 | 209.70 | 0.5989 | -673.0 | -549.7 | |
| 0.00 | 0.98 | 0.00 | 0.59 | -23.23 | 70.78 | 18.35 | 210.01 | 0.5806 | -656.0 | -515.4 | |
| 0.00 | 1.96 | 0.00 | 1.21 | -24.98 | 70.51 | 18.09 | 208.09 | 0.5999 | -679.0 | -485.5 | |
| 0.00 | 1.16 | 0.00 | 0.71 | -24.86 | 70.25 | 17.83 | 207.85 | 0.5967 | -686.0 | -594.4 | |
| 0.00 | 2.84 | 0.00 | 1.73 | -24.12 | 69.52 | 17.09 | 207.51 | 0.5829 | -472.0 | -655.9 | |
| 0.00 | 1.69 | 0.00 | 1.03 | -24.50 | 69.22 | 16.80 | 206.79 | 0.5857 | -809.0 | -666.2 | |
| 0.00 | 1.33 | 0.00 | 0.82 | -24.91 | 69.00 | 16.58 | 206.15 | 0.5895 | -865.0 | -661.3 | |
| 0.00 | 8.71 | 0.00 | 5.32 | -25.00 | 68.56 | 16.14 | 205.48 | 0.5879 | -580.0 | -626.9 | |
| 0.00 | 1.07 | 0.00 | 0.64 | -25.13 | 65.24 | 12.82 | 200.67 | 0.5711 | -647.0 | -495.1 | |
| 0.00 | 1.16 | 0.00 | 0.73 | -29.90 | 62.26 | 9.84 | 193.83 | 0.6221 | -421.0 | -407.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
