SDO HMI 2014-09-13 18:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.93 | 81.70 | 23.61 | 85.95 | 13.57 | 349.74 | -62.68 | 78.44 | 0.8815 | 34.0 | 167.0 | |
|
previous
or next observation for the same group /

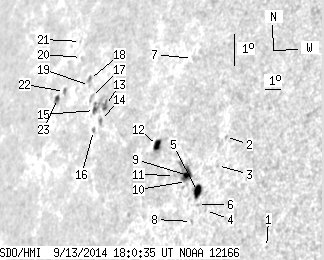

back to the solar disc SDO HMI 2014-09-13 18:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.98 | 0.00 | 0.81 | 11.16 | 358.32 | -54.10 | 81.43 | 0.8059 | -488.0 | -400.5 | |
| 0.00 | 1.07 | 0.00 | 0.96 | 14.23 | 355.04 | -57.38 | 77.68 | 0.8378 | -454.0 | -388.7 | |
| 0.00 | 1.07 | 0.00 | 0.96 | 13.33 | 354.92 | -57.50 | 78.77 | 0.8388 | -384.0 | -298.8 | |
| 0.00 | 0.98 | 0.00 | 0.89 | 11.93 | 354.72 | -57.70 | 80.44 | 0.8408 | -359.0 | -359.6 | |
| 7.20 | 10.31 | 6.66 | 9.54 | 12.44 | 354.07 | -58.35 | 79.82 | 0.8467 | -549.0 | -299.1 | |
| 0.00 | 1.16 | 0.00 | 1.06 | 12.06 | 354.21 | -58.21 | 80.28 | 0.8455 | -500.0 | -445.2 | |
| 0.00 | 0.89 | 0.00 | 0.87 | 16.34 | 352.08 | -60.35 | 75.26 | 0.8643 | -504.0 | -470.4 | |
| 0.00 | 1.33 | 0.00 | 1.23 | 11.52 | 354.04 | -58.39 | 80.91 | 0.8472 | -350.0 | -312.5 | |
| 3.73 | 17.60 | 3.53 | 16.71 | 12.85 | 353.32 | -59.10 | 79.32 | 0.8534 | -366.9 | 77.3 | |
| 0.00 | 1.24 | 0.00 | 1.17 | 12.67 | 353.33 | -59.09 | 79.54 | 0.8533 | -140.0 | -135.1 | |
| 0.00 | 1.16 | 0.00 | 1.11 | 12.77 | 352.55 | -59.87 | 79.41 | 0.8601 | 400.0 | 388.5 | |
| 5.24 | 10.40 | 5.27 | 10.45 | 13.55 | 351.15 | -61.27 | 78.49 | 0.8720 | 568.2 | 381.3 | |
| 2.31 | 14.93 | 2.65 | 17.30 | 14.34 | 347.13 | -65.29 | 77.52 | 0.9032 | 509.7 | 391.7 | |
| 0.71 | 2.67 | 0.82 | 3.06 | 13.86 | 347.02 | -65.41 | 78.05 | 0.9042 | 484.2 | 446.6 | |
| 1.78 | -13.00 | 2.09 | -13.00 | 14.10 | 346.43 | -66.00 | 77.76 | 0.9084 | 520.5 | 999999 | |
| 0.00 | 2.04 | 0.00 | 2.38 | 13.51 | 346.67 | -65.75 | 78.42 | 0.9067 | 316.0 | 240.5 | |
| 0.00 | 2.84 | 0.00 | 3.39 | 14.46 | 345.99 | -66.44 | 77.36 | 0.9114 | 362.0 | 266.0 | |
| 0.00 | 2.76 | 0.00 | 3.34 | 14.96 | 345.52 | -66.91 | 76.79 | 0.9145 | 228.0 | 165.3 | |
| 0.00 | 0.89 | 0.00 | 1.07 | 14.79 | 345.63 | -66.80 | 76.99 | 0.9138 | 402.0 | 362.9 | |
| 0.00 | 0.71 | 0.00 | 0.90 | 15.53 | 344.48 | -67.94 | 76.15 | 0.9213 | 401.0 | 354.8 | |
| 0.00 | 0.27 | 0.00 | 0.34 | 15.99 | 344.08 | -68.34 | 75.65 | 0.9239 | 366.0 | 356.3 | |
| 0.00 | 2.31 | 0.00 | 3.00 | 14.39 | 343.80 | -68.62 | 77.36 | 0.9260 | 525.0 | 362.7 | |
| 1.96 | 4.09 | 2.59 | 5.41 | 14.13 | 343.37 | -69.06 | 77.63 | 0.9288 | 250.2 | 254.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
