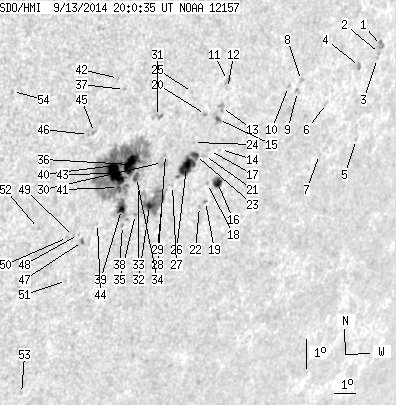

SDO HMI 2014-09-13 20:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 79.11 | 383.75 | 59.26 | 287.24 | -14.85 | 94.97 | 43.65 | 242.79 | 0.7520 | -165.1 | -200.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-13 20:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.18 | 0.00 | 3.77 | -11.90 | 104.97 | 53.65 | 250.60 | 0.8377 | 688.0 | 575.4 | |
| 0.00 | 0.53 | 0.00 | 0.48 | -12.15 | 104.94 | 53.62 | 250.30 | 0.8381 | 589.0 | 473.7 | |
| 0.00 | 0.89 | 0.00 | 0.80 | -12.30 | 104.88 | 53.56 | 250.11 | 0.8380 | 521.0 | 437.8 | |
| 0.00 | 2.76 | 0.00 | 2.44 | -12.46 | 103.99 | 52.67 | 249.61 | 0.8305 | 778.0 | 611.9 | |
| 0.00 | 1.33 | 0.00 | 1.22 | -14.86 | 104.61 | 53.29 | 247.12 | 0.8432 | 370.0 | 303.7 | |
| 0.00 | 1.87 | 0.00 | 1.61 | -13.50 | 102.63 | 51.31 | 247.91 | 0.8213 | 564.0 | 452.0 | |
| 0.00 | 0.27 | 0.00 | 0.23 | -15.15 | 102.81 | 51.49 | 246.09 | 0.8284 | 421.0 | 404.0 | |
| 0.00 | 2.04 | 0.00 | 1.70 | -12.62 | 101.15 | 49.84 | 248.36 | 0.8045 | 580.0 | 481.8 | |
| 0.00 | 2.31 | 0.00 | 1.92 | -12.96 | 101.05 | 49.74 | 247.92 | 0.8047 | 601.0 | 471.5 | |
| 0.00 | 1.60 | 0.00 | 1.31 | -12.75 | 100.57 | 49.25 | 247.97 | 0.7993 | 670.0 | 608.3 | |
| 0.00 | 3.02 | 0.00 | 2.33 | -12.27 | 97.63 | 46.31 | 247.29 | 0.7683 | -547.0 | -415.9 | |
| 0.00 | 1.33 | 0.00 | 1.03 | -12.53 | 97.69 | 46.37 | 247.00 | 0.7699 | -513.0 | -429.0 | |
| 0.00 | 4.71 | 0.00 | 3.65 | -13.12 | 97.56 | 46.25 | 246.22 | 0.7710 | -707.0 | -562.2 | |
| 0.00 | 0.53 | 0.00 | 0.42 | -14.50 | 97.87 | 46.56 | 244.71 | 0.7797 | 472.0 | 378.3 | |
| 1.33 | 4.62 | 1.03 | 3.58 | -13.50 | 97.52 | 46.20 | 245.74 | 0.7721 | -624.2 | -331.9 | |
| 6.22 | 8.89 | 4.96 | 7.09 | -15.58 | 98.05 | 46.73 | 243.51 | 0.7859 | 600.3 | 352.1 | |
| 0.00 | 0.80 | 0.00 | 0.62 | -14.48 | 97.37 | 46.05 | 244.49 | 0.7747 | 665.0 | 581.9 | |
| 0.00 | 1.51 | 0.00 | 1.19 | -15.57 | 97.58 | 46.27 | 243.30 | 0.7814 | 598.0 | 521.9 | |
| 0.00 | 1.60 | 0.00 | 1.27 | -16.16 | 97.67 | 46.35 | 242.65 | 0.7847 | 376.0 | 312.7 | |
| 0.00 | 1.60 | 0.00 | 1.22 | -13.28 | 96.89 | 45.57 | 245.71 | 0.7648 | -631.0 | -535.3 | |
| 0.00 | 2.31 | 0.00 | 1.80 | -14.63 | 97.18 | 45.87 | 244.23 | 0.7734 | 445.0 | 388.2 | |
| 0.00 | 1.60 | 0.00 | 1.27 | -16.30 | 97.44 | 46.12 | 242.37 | 0.7831 | 534.0 | 328.8 | |
| 3.64 | 28.62 | 2.81 | 22.03 | -14.59 | 96.77 | 45.45 | 244.08 | 0.7691 | 810.8 | 524.6 | |
| 0.00 | 1.07 | 0.00 | 0.82 | -14.15 | 96.57 | 45.25 | 244.51 | 0.7652 | -96.0 | -87.8 | |
| 0.00 | 0.98 | 0.00 | 0.73 | -12.51 | 96.13 | 44.82 | 246.30 | 0.7538 | -530.0 | -441.0 | |
| 16.18 | -23.00 | 12.45 | -23.00 | -14.91 | 96.46 | 45.14 | 243.53 | 0.7674 | 726.2 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.75 | -15.48 | 95.99 | 44.67 | 242.61 | 0.7654 | 463.0 | 399.9 | |
| 0.00 | 1.16 | 0.00 | 0.87 | -14.43 | 95.41 | 44.09 | 243.59 | 0.7547 | 433.0 | 373.3 | |
| 0.98 | 43.74 | 0.75 | 33.20 | -15.84 | 95.65 | 44.33 | 242.01 | 0.7636 | 650.1 | 120.4 | |
| 0.00 | 8.44 | 0.00 | 6.36 | -14.68 | 95.34 | 44.02 | 243.25 | 0.7551 | 53.0 | 26.5 | |
| 0.00 | 4.98 | 0.00 | 3.67 | -13.15 | 94.76 | 43.44 | 244.83 | 0.7422 | -559.0 | -423.8 | |
| 2.76 | -29.00 | 2.09 | -29.00 | -16.05 | 95.14 | 43.82 | 241.48 | 0.7596 | -292.9 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.93 | -15.37 | 94.48 | 43.16 | 241.95 | 0.7497 | -456.0 | -333.9 | |
| 3.02 | 224.99 | 2.24 | 164.52 | -15.07 | 94.32 | 43.00 | 242.23 | 0.7465 | -577.2 | -402.1 | |
| 0.00 | 1.42 | 0.00 | 1.07 | -16.29 | 94.60 | 43.28 | 240.90 | 0.7554 | -634.0 | -535.5 | |
| 16.36 | -34.00 | 12.01 | -34.00 | -14.62 | 93.95 | 42.63 | 242.59 | 0.7406 | -914.4 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.57 | -12.15 | 93.16 | 41.84 | 245.27 | 0.7203 | -494.0 | -375.8 | |
| 0.00 | 1.16 | 0.00 | 0.87 | -16.61 | 94.12 | 42.80 | 240.26 | 0.7522 | -535.0 | -462.5 | |
| 4.44 | -34.00 | 3.30 | -34.00 | -16.07 | 93.93 | 42.62 | 240.80 | 0.7476 | 754.4 | 999999 | |
| 0.27 | -34.00 | 0.19 | -34.00 | -14.58 | 93.56 | 42.24 | 242.42 | 0.7363 | -1046.0 | 999999 | |
| 0.98 | -34.00 | 0.72 | -34.00 | -15.33 | 93.61 | 42.30 | 241.53 | 0.7406 | -555.9 | 999999 | |
| 0.00 | 1.42 | 0.00 | 1.00 | -11.77 | 92.84 | 41.52 | 245.59 | 0.7150 | -424.0 | -308.3 | |
| 22.22 | -34.00 | 16.19 | -34.00 | -14.85 | 93.37 | 42.05 | 241.97 | 0.7357 | -1035.9 | 999999 | |
| 0.00 | 0.44 | 0.00 | 0.33 | -16.45 | 93.01 | 41.69 | 239.82 | 0.7402 | -434.0 | -418.4 | |
| 0.00 | 1.96 | 0.00 | 1.38 | -13.43 | 92.18 | 40.86 | 243.09 | 0.7159 | -684.0 | -567.5 | |
| 0.00 | 0.89 | 0.00 | 0.63 | -13.47 | 91.94 | 40.62 | 242.90 | 0.7136 | -586.0 | -562.6 | |
| 0.71 | 2.31 | 0.52 | 1.69 | -16.99 | 92.52 | 41.21 | 238.88 | 0.7383 | -608.0 | -491.0 | |
| 0.00 | 0.89 | 0.00 | 0.65 | -16.74 | 92.29 | 40.97 | 239.04 | 0.7345 | -442.0 | -473.7 | |
| 0.00 | 1.07 | 0.00 | 0.77 | -16.79 | 92.09 | 40.78 | 238.86 | 0.7328 | -455.0 | -397.6 | |
| 0.00 | 0.98 | 0.00 | 0.71 | -16.80 | 91.85 | 40.53 | 238.70 | 0.7304 | -610.0 | -503.8 | |
| 0.00 | 0.53 | 0.00 | 0.39 | -18.25 | 92.20 | 40.88 | 237.17 | 0.7420 | -555.0 | -530.0 | |
| 0.00 | 1.07 | 0.00 | 0.75 | -16.40 | 90.55 | 39.23 | 238.39 | 0.7148 | -495.0 | -408.5 | |
| 0.00 | 0.80 | 0.00 | 0.60 | -21.98 | 91.46 | 40.14 | 232.39 | 0.7569 | -523.0 | -408.4 | |
| 0.00 | 1.51 | 0.00 | 1.00 | -11.83 | 88.61 | 37.29 | 243.07 | 0.6675 | -638.0 | -437.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
