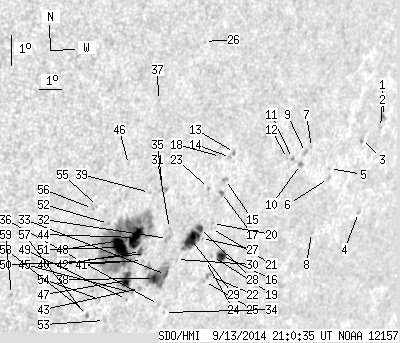

SDO HMI 2014-09-13 21:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 89.88 | 360.95 | 68.11 | 273.60 | -14.89 | 95.16 | 44.40 | 243.12 | 0.7597 | -139.7 | -201.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-13 21:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.62 | 3.91 | 0.57 | 3.57 | -11.83 | 104.93 | 54.16 | 250.86 | 0.8420 | 661.4 | 551.8 | |
| 0.00 | 1.96 | 0.00 | 1.79 | -12.17 | 104.87 | 54.10 | 250.45 | 0.8424 | 560.0 | 440.0 | |
| 0.00 | 2.76 | 0.00 | 2.47 | -12.45 | 103.96 | 53.19 | 249.81 | 0.8351 | 714.0 | 556.5 | |
| 0.00 | 1.78 | 0.00 | 1.65 | -14.85 | 104.59 | 53.82 | 247.32 | 0.8477 | 410.0 | 298.0 | |
| 0.00 | 0.89 | 0.00 | 0.77 | -13.23 | 102.55 | 51.79 | 248.40 | 0.8248 | 601.0 | 477.2 | |
| 0.00 | 1.96 | 0.00 | 1.71 | -13.55 | 102.60 | 51.83 | 248.05 | 0.8262 | 512.0 | 463.4 | |
| 0.00 | 0.71 | 0.00 | 0.60 | -12.44 | 101.43 | 50.67 | 248.89 | 0.8119 | 422.0 | 290.1 | |
| 0.00 | 1.24 | 0.00 | 1.10 | -15.25 | 102.29 | 51.53 | 245.99 | 0.8291 | 77.0 | 116.8 | |
| 0.00 | 2.93 | 0.00 | 2.46 | -12.58 | 101.18 | 50.41 | 248.63 | 0.8099 | 605.0 | 425.7 | |
| 0.44 | 2.67 | 0.37 | 2.24 | -12.94 | 101.03 | 50.27 | 248.14 | 0.8097 | 576.8 | 454.1 | |
| 0.00 | 1.42 | 0.00 | 1.18 | -12.71 | 100.58 | 49.82 | 248.24 | 0.8046 | 689.0 | 628.2 | |
| 0.00 | 0.53 | 0.00 | 0.44 | -12.68 | 100.33 | 49.57 | 248.17 | 0.8022 | 585.0 | 570.8 | |
| 0.00 | 1.87 | 0.00 | 1.46 | -12.24 | 97.75 | 46.99 | 247.62 | 0.7750 | -443.0 | -373.3 | |
| 0.00 | 1.07 | 0.00 | 0.83 | -12.38 | 97.60 | 46.84 | 247.38 | 0.7741 | -555.0 | -413.2 | |
| 0.00 | 2.67 | 0.00 | 2.09 | -13.08 | 97.54 | 46.78 | 246.52 | 0.7762 | -654.0 | -558.1 | |
| 6.85 | 10.05 | 5.52 | 8.10 | -15.57 | 98.05 | 47.28 | 243.78 | 0.7911 | 578.2 | 271.9 | |
| 0.62 | 2.58 | 0.49 | 2.02 | -13.49 | 97.47 | 46.70 | 245.99 | 0.7770 | -617.6 | -494.5 | |
| 0.00 | 1.42 | 0.00 | 1.10 | -12.31 | 97.13 | 46.37 | 247.27 | 0.7690 | -588.0 | -502.2 | |
| 0.00 | 1.16 | 0.00 | 0.92 | -15.56 | 97.63 | 46.86 | 243.60 | 0.7871 | 609.0 | 563.0 | |
| 0.00 | 0.98 | 0.00 | 0.77 | -14.46 | 97.31 | 46.55 | 244.75 | 0.7795 | 637.0 | 502.5 | |
| 0.00 | 0.98 | 0.00 | 0.77 | -14.63 | 97.31 | 46.55 | 244.55 | 0.7802 | 384.0 | 366.5 | |
| 0.00 | 3.11 | 0.00 | 2.50 | -16.18 | 97.63 | 46.87 | 242.88 | 0.7897 | 405.0 | 291.7 | |
| 0.00 | 0.89 | 0.00 | 0.69 | -13.30 | 96.83 | 46.07 | 245.92 | 0.7699 | -636.0 | -593.5 | |
| 0.00 | 0.80 | 0.00 | 0.64 | -15.66 | 97.34 | 46.57 | 243.34 | 0.7847 | 443.0 | 454.3 | |
| 0.00 | 0.53 | 0.00 | 0.43 | -16.36 | 97.50 | 46.74 | 242.60 | 0.7893 | 348.0 | 253.2 | |
| 0.00 | 0.89 | 0.00 | 0.65 | -8.56 | 95.72 | 44.96 | 251.36 | 0.7397 | -290.0 | -355.4 | |
| 0.00 | 1.78 | 0.00 | 1.40 | -14.91 | 96.94 | 46.17 | 244.04 | 0.7777 | 131.0 | 168.3 | |
| 3.38 | 29.16 | 2.63 | 22.68 | -14.57 | 96.76 | 45.99 | 244.35 | 0.7744 | 779.9 | 484.7 | |
| 15.29 | -28.00 | 11.90 | -28.00 | -14.90 | 96.48 | 45.72 | 243.83 | 0.7732 | 725.2 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.69 | -15.50 | 95.98 | 45.21 | 242.86 | 0.7708 | 496.0 | 413.9 | |
| 0.00 | 0.71 | 0.00 | 0.54 | -14.44 | 95.39 | 44.62 | 243.84 | 0.7602 | 486.0 | 406.1 | |
| 0.00 | 3.11 | 0.00 | 2.37 | -14.76 | 95.38 | 44.62 | 243.44 | 0.7616 | -154.0 | -151.6 | |
| 2.13 | 39.74 | 1.65 | 30.46 | -15.95 | 95.62 | 44.85 | 242.14 | 0.7693 | 529.0 | 84.9 | |
| 0.00 | 0.62 | 0.00 | 0.49 | -17.22 | 95.95 | 45.19 | 240.82 | 0.7784 | 548.0 | 476.6 | |
| 0.00 | 3.64 | 0.00 | 2.71 | -13.14 | 94.77 | 44.00 | 245.13 | 0.7480 | -600.0 | -429.9 | |
| 0.00 | 1.16 | 0.00 | 0.90 | -16.93 | 95.59 | 44.83 | 240.97 | 0.7736 | 603.0 | 493.9 | |
| 0.00 | 0.71 | 0.00 | 0.51 | -10.25 | 94.03 | 43.26 | 248.42 | 0.7275 | -296.0 | -303.5 | |
| 5.07 | -33.00 | 3.88 | -33.00 | -16.04 | 95.15 | 44.39 | 241.80 | 0.7651 | -212.9 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.65 | -13.18 | 94.22 | 43.45 | 244.80 | 0.7424 | -530.0 | -434.5 | |
| 0.00 | 0.27 | 0.00 | 0.20 | -15.17 | 94.53 | 43.76 | 242.51 | 0.7548 | -378.0 | -368.3 | |
| 0.00 | 1.07 | 0.00 | 0.80 | -15.39 | 94.45 | 43.69 | 242.21 | 0.7551 | -260.0 | -331.1 | |
| 2.58 | 5.24 | 1.93 | 3.93 | -15.08 | 94.29 | 43.52 | 242.49 | 0.7520 | -594.6 | -402.7 | |
| 0.00 | 2.04 | 0.00 | 1.55 | -16.31 | 94.57 | 43.81 | 241.17 | 0.7607 | -640.0 | -470.3 | |
| 19.56 | 205.62 | 14.50 | 151.61 | -14.60 | 93.95 | 43.18 | 242.90 | 0.7462 | -881.7 | -428.5 | |
| 0.00 | 1.16 | 0.00 | 0.87 | -16.41 | 94.25 | 43.49 | 240.87 | 0.7580 | -488.0 | -490.9 | |
| 0.00 | 0.80 | 0.00 | 0.57 | -12.19 | 93.12 | 42.36 | 245.48 | 0.7261 | -511.0 | -415.0 | |
| 9.07 | -44.00 | 6.79 | -44.00 | -15.99 | 93.92 | 43.15 | 241.20 | 0.7526 | 464.1 | 999999 | |
| 2.04 | -44.00 | 1.51 | -44.00 | -14.63 | 93.57 | 42.81 | 242.66 | 0.7425 | -1008.1 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.60 | -16.62 | 94.09 | 43.33 | 240.53 | 0.7575 | -481.0 | -443.1 | |
| 1.87 | -44.00 | 1.39 | -44.00 | -15.35 | 93.67 | 42.90 | 241.83 | 0.7469 | -507.2 | 999999 | |
| 20.36 | -44.00 | 14.98 | -44.00 | -14.87 | 93.37 | 42.61 | 242.26 | 0.7416 | -1019.4 | 999999 | |
| 0.00 | 1.51 | 0.00 | 1.09 | -14.03 | 92.67 | 41.91 | 242.91 | 0.7301 | -772.0 | -634.5 | |
| 0.00 | 1.96 | 0.00 | 1.47 | -17.24 | 93.32 | 42.55 | 239.36 | 0.7530 | -424.0 | -354.3 | |
| 0.00 | 0.80 | 0.00 | 0.59 | -16.52 | 92.90 | 42.14 | 239.99 | 0.7451 | -432.0 | -430.1 | |
| 0.00 | 0.53 | 0.00 | 0.38 | -13.44 | 92.08 | 41.32 | 243.34 | 0.7209 | -720.0 | -603.7 | |
| 0.00 | 1.51 | 0.00 | 1.07 | -13.48 | 91.89 | 41.12 | 243.17 | 0.7190 | -523.0 | -541.8 | |
| 0.00 | 1.87 | 0.00 | 1.38 | -17.00 | 92.48 | 41.72 | 239.16 | 0.7435 | -617.0 | -536.9 | |
| 0.00 | 0.62 | 0.00 | 0.46 | -16.82 | 92.31 | 41.54 | 239.28 | 0.7408 | -649.0 | -495.6 | |
| 0.00 | 0.98 | 0.00 | 0.68 | -16.03 | 89.15 | 38.38 | 238.29 | 0.7038 | -589.0 | -498.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
