SDO HMI 2014-09-13 21:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.90 | 76.89 | 13.89 | 42.84 | -15.61 | 66.00 | 15.24 | 213.38 | 0.4619 | 851.9 | 533.1 | |
|
previous
or next observation for the same group /

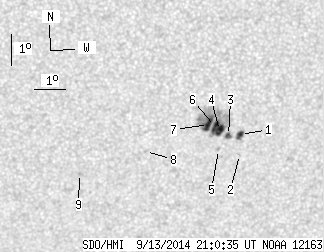

back to the solar disc SDO HMI 2014-09-13 21:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.47 | 5.51 | 1.95 | 3.09 | -15.80 | 66.86 | 16.10 | 214.62 | 0.4715 | 837.8 | 551.3 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -16.46 | 66.88 | 16.12 | 213.85 | 0.4800 | 635.0 | 529.7 | |
| 2.13 | 3.73 | 1.19 | 2.09 | -15.82 | 66.47 | 15.71 | 213.94 | 0.4684 | 848.3 | 600.5 | |
| 6.85 | 63.38 | 3.82 | 35.28 | -15.64 | 66.17 | 15.40 | 213.64 | 0.4635 | 943.9 | 558.1 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -16.27 | 66.18 | 15.42 | 212.91 | 0.4716 | 801.0 | 694.1 | |
| 5.78 | -4.00 | 3.22 | -4.00 | -15.51 | 66.03 | 15.26 | 213.57 | 0.4606 | 1050.2 | 999999 | |
| 6.67 | -4.00 | 3.71 | -4.00 | -15.43 | 65.79 | 15.03 | 213.26 | 0.4577 | 1172.4 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.69 | -16.25 | 63.81 | 13.05 | 208.74 | 0.4527 | 678.0 | 466.6 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -16.92 | 61.73 | 10.97 | 204.10 | 0.4476 | -854.0 | -715.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
