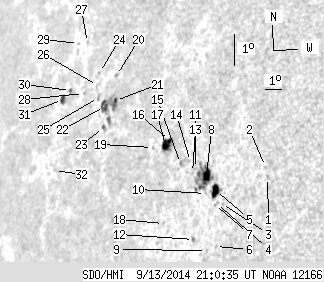

SDO HMI 2014-09-13 21:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.05 | 113.80 | 33.82 | 113.23 | 13.47 | 349.86 | -60.91 | 78.59 | 0.8669 | 63.7 | 158.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-13 21:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.87 | 0.00 | 1.55 | 13.11 | 356.83 | -53.93 | 79.01 | 0.8042 | -409.0 | -408.4 | |
| 0.00 | 0.98 | 0.00 | 0.82 | 13.43 | 356.62 | -54.14 | 78.62 | 0.8064 | -587.0 | -529.2 | |
| 0.00 | 0.44 | 0.00 | 0.39 | 12.10 | 354.66 | -56.11 | 80.26 | 0.8257 | -468.0 | -510.8 | |
| 0.00 | 1.24 | 0.00 | 1.09 | 12.07 | 354.39 | -56.38 | 80.29 | 0.8283 | -621.0 | -518.0 | |
| 7.11 | 10.76 | 6.28 | 9.50 | 12.45 | 354.21 | -56.56 | 79.83 | 0.8300 | -639.8 | -434.1 | |
| 0.00 | 0.71 | 0.00 | 0.62 | 10.79 | 354.72 | -56.05 | 81.86 | 0.8253 | -545.0 | -470.0 | |
| 0.00 | 0.36 | 0.00 | 0.31 | 12.03 | 354.29 | -56.48 | 80.34 | 0.8292 | -549.0 | -548.8 | |
| 7.47 | 31.65 | 6.70 | 28.52 | 12.84 | 353.56 | -57.21 | 79.35 | 0.8361 | -496.3 | 30.1 | |
| 0.00 | 0.80 | 0.00 | 0.71 | 10.62 | 354.27 | -56.50 | 82.05 | 0.8297 | -488.0 | -388.8 | |
| 0.00 | 0.27 | 0.00 | 0.24 | 12.30 | 353.69 | -57.08 | 80.00 | 0.8349 | -300.0 | -244.0 | |
| 0.00 | 2.40 | 0.00 | 2.19 | 12.99 | 352.87 | -57.90 | 79.18 | 0.8425 | 407.0 | 305.3 | |
| 0.00 | 1.87 | 0.00 | 1.68 | 10.87 | 353.46 | -57.31 | 81.72 | 0.8373 | -482.0 | -373.4 | |
| 0.00 | 0.53 | 0.00 | 0.49 | 12.85 | 352.74 | -58.02 | 79.34 | 0.8436 | 444.0 | 389.3 | |
| 0.00 | 0.36 | 0.00 | 0.33 | 13.16 | 352.51 | -58.26 | 78.97 | 0.8458 | 187.0 | 210.5 | |
| 0.00 | 1.16 | 0.00 | 1.08 | 13.04 | 351.96 | -58.81 | 79.10 | 0.8507 | 594.0 | 519.5 | |
| 2.22 | 11.73 | 2.13 | 11.31 | 13.66 | 351.04 | -59.73 | 78.38 | 0.8588 | 701.3 | 422.7 | |
| 6.05 | -16.00 | 5.83 | -16.00 | 13.48 | 350.86 | -59.90 | 78.58 | 0.8604 | 679.0 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.76 | 11.16 | 351.60 | -59.16 | 81.31 | 0.8542 | -176.0 | -152.8 | |
| 0.00 | 0.62 | 0.00 | 0.61 | 13.34 | 350.10 | -60.66 | 78.74 | 0.8669 | 397.0 | 331.9 | |
| 0.00 | 1.42 | 0.00 | 1.56 | 15.20 | 346.76 | -64.00 | 76.58 | 0.8936 | 490.0 | 432.2 | |
| 1.07 | 25.51 | 1.16 | 27.92 | 14.46 | 347.09 | -63.67 | 77.42 | 0.8911 | 257.6 | 419.5 | |
| 5.42 | -21.00 | 6.00 | -21.00 | 14.20 | 346.44 | -64.33 | 77.70 | 0.8961 | 557.9 | 999999 | |
| 0.80 | 3.11 | 0.88 | 3.41 | 13.58 | 346.68 | -64.08 | 78.40 | 0.8944 | 352.1 | 290.0 | |
| 0.00 | 1.07 | 0.00 | 1.22 | 15.16 | 345.53 | -65.23 | 76.62 | 0.9027 | -227.0 | -138.7 | |
| 0.00 | 1.96 | 0.00 | 2.21 | 14.42 | 345.88 | -64.88 | 77.44 | 0.9002 | 308.0 | 223.9 | |
| 0.00 | 2.04 | 0.00 | 2.33 | 14.76 | 345.61 | -65.15 | 77.06 | 0.9021 | 389.0 | 310.9 | |
| 0.00 | 1.07 | 0.00 | 1.28 | 15.93 | 344.12 | -66.65 | 75.74 | 0.9126 | 486.0 | 384.2 | |
| 0.00 | 0.89 | 0.00 | 1.04 | 14.42 | 344.75 | -66.02 | 77.42 | 0.9084 | 401.0 | 329.3 | |
| 0.00 | 0.80 | 0.00 | 0.98 | 15.83 | 343.46 | -67.30 | 75.84 | 0.9171 | 253.0 | 248.6 | |
| 0.71 | 2.04 | 0.87 | 2.49 | 14.40 | 343.73 | -67.03 | 77.42 | 0.9155 | 427.2 | 345.6 | |
| 3.20 | 4.36 | 3.97 | 5.40 | 14.07 | 343.28 | -67.48 | 77.76 | 0.9186 | 306.3 | 261.5 | |
| 0.00 | 0.98 | 0.00 | 1.19 | 11.93 | 343.81 | -66.95 | 80.11 | 0.9156 | 463.0 | 359.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
