groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

12158 114.41 580.99 72.08 364.86 15.49 88.09 37.88 285.94 0.6180 501.6 360.0


previous   or   next   observation for the same group / back to the solar disc

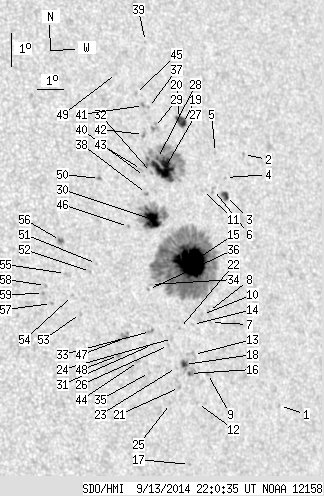

SDO HMI 2014-09-13 22:00:35 UT
No observation available
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 0.00 0.89 0.00 0.58 10.23 91.13 40.92 277.30 0.6521 -372.0 -457.9
2 0.00 1.16 0.00 0.76 17.91 91.33 41.12 288.95 0.6639 344.0 382.9
3 3.38 5.51 2.19 3.58 16.73 90.26 40.05 287.41 0.6481 699.6 449.5
4 0.00 1.07 0.00 0.69 17.27 90.40 40.19 288.21 0.6510 340.0 269.8
5 0.00 1.16 0.00 0.75 18.06 90.20 39.99 289.46 0.6503 571.0 408.9
6 0.00 2.84 0.00 1.84 16.95 89.83 39.61 287.85 0.6430 473.0 399.2
7 0.00 1.07 0.00 0.67 12.94 88.83 38.61 281.73 0.6234 -227.0 -207.0
8 0.00 0.80 0.00 0.51 13.28 88.81 38.60 282.28 0.6236 -325.0 -254.4
9 0.00 1.69 0.00 1.06 11.42 88.44 38.23 279.31 0.6169 -516.0 -439.4
10 0.00 1.07 0.00 0.67 13.21 88.56 38.34 282.20 0.6202 -273.0 -179.5
11 0.00 1.33 0.00 0.85 16.95 89.38 39.16 287.96 0.6373 654.0 553.0
12 0.00 0.62 0.00 0.39 10.55 87.92 37.71 277.92 0.6093 -392.0 -246.4
13 0.00 2.84 0.00 1.78 12.03 87.99 37.78 280.35 0.6114 -529.0 -423.4
14 0.00 1.07 0.00 0.67 12.94 88.11 37.90 281.82 0.6139 -246.0 -211.2
15 54.14 334.19 34.14 210.15 14.81 88.44 38.23 284.79 0.6210 1245.2 498.0
16 0.71 12.27 0.44 7.63 11.47 87.75 37.53 279.46 0.6075 -637.6 -616.5
17 0.00 0.71 0.00 0.44 8.74 87.37 37.16 274.94 0.6015 -547.0 -513.1
18 2.40 -16.00 1.49 -16.00 11.76 87.60 37.39 279.94 0.6057 -895.1 999999
19 3.56 8.98 2.29 5.77 19.05 89.12 38.90 291.28 0.6393 -720.8 -426.1
20 2.84 -19.00 1.83 -19.00 19.18 89.03 38.82 291.50 0.6386 -528.2 999999
21 0.00 1.42 0.00 0.88 11.08 87.30 37.09 278.85 0.6011 -494.0 -424.1
22 0.00 0.80 0.00 0.50 12.85 87.59 37.38 281.76 0.6068 -373.0 -374.4
23 0.00 0.98 0.00 0.60 11.69 87.28 37.07 279.87 0.6013 -499.0 -362.1
24 0.00 0.98 0.00 0.61 12.57 87.27 37.06 281.34 0.6021 -425.0 -345.3
25 0.00 0.53 0.00 0.33 10.63 86.89 36.67 278.11 0.5952 -495.0 -487.7
26 0.00 0.98 0.00 0.60 12.37 87.08 36.87 281.03 0.5993 -603.0 -575.2
27 27.83 93.44 17.56 59.09 17.73 88.03 37.82 289.55 0.6221 903.0 319.3
28 0.80 -27.00 0.50 -27.00 18.06 87.84 37.62 290.13 0.6204 756.9 999999
29 0.00 5.16 0.00 3.26 19.01 87.96 37.75 291.59 0.6248 645.0 538.7
30 17.60 53.96 10.95 33.60 16.22 87.20 36.99 287.36 0.6075 1014.7 426.5
31 0.00 0.89 0.00 0.54 12.45 86.48 36.26 281.24 0.5911 -628.0 -531.6
32 0.00 1.42 0.00 0.89 17.65 87.49 37.28 289.58 0.6149 873.0 757.2
33 0.00 3.02 0.00 1.85 12.85 86.46 36.25 281.91 0.5914 -614.0 -555.4
34 0.00 1.42 0.00 0.88 14.26 86.72 36.51 284.24 0.5971 250.0 236.3
35 0.00 1.24 0.00 0.76 11.62 86.23 36.02 279.85 0.5868 -718.0 -619.1
36 0.00 0.80 0.00 0.49 14.12 86.61 36.40 284.02 0.5954 638.0 510.7
37 0.00 0.89 0.00 0.56 19.64 87.89 37.68 292.60 0.6258 491.0 433.6
38 0.00 1.51 0.00 0.94 17.03 87.15 36.93 288.68 0.6087 798.0 698.5
39 0.00 0.98 0.00 0.63 21.67 88.37 38.16 295.54 0.6386 583.0 440.2
40 0.00 0.62 0.00 0.39 17.55 87.19 36.98 289.51 0.6107 731.0 594.7
41 0.00 1.87 0.00 1.18 19.71 87.71 37.50 292.78 0.6238 793.0 617.0
42 0.00 2.58 0.00 1.62 18.83 87.47 37.26 291.47 0.6180 727.0 626.7
43 0.00 1.87 0.00 1.16 17.77 87.13 36.91 289.89 0.6105 655.0 636.4
44 0.00 1.69 0.00 1.03 11.98 85.87 35.65 280.51 0.5821 -755.0 -659.4
45 0.00 1.78 0.00 1.12 20.11 87.50 37.28 293.47 0.6224 590.0 515.8
46 0.00 0.89 0.00 0.55 16.08 86.23 36.02 287.39 0.5943 746.0 643.1
47 0.44 4.36 0.27 2.64 12.73 85.53 35.32 281.87 0.5784 -822.2 -676.6
48 0.00 1.33 0.00 0.80 12.21 85.14 34.93 281.02 0.5723 -831.0 -733.6
49 0.00 1.16 0.00 0.73 20.77 86.92 36.71 294.74 0.6176 596.0 419.8
50 0.00 1.60 0.00 0.98 17.61 85.44 35.23 290.19 0.5880 873.0 760.6
51 0.00 0.89 0.00 0.54 15.05 84.79 34.58 286.03 0.5724 -517.0 -387.5
52 0.00 0.89 0.00 0.53 14.82 84.52 34.31 285.71 0.5682 -655.0 -535.6
53 0.00 1.24 0.00 0.74 13.58 83.93 33.72 283.66 0.5575 -619.0 -507.0
54 0.00 1.07 0.00 0.63 14.14 83.73 33.52 284.71 0.5557 -607.0 -465.1
55 0.00 0.80 0.00 0.48 14.82 83.58 33.37 285.97 0.5552 -664.0 -522.0
56 0.71 2.93 0.42 1.75 15.84 83.58 33.37 287.77 0.5578 -790.6 -686.9
57 0.00 1.16 0.00 0.68 13.95 82.92 32.70 284.58 0.5439 -699.0 -629.9
58 0.00 1.24 0.00 0.73 14.51 82.79 32.57 285.64 0.5433 -618.0 -535.1
59 0.00 1.33 0.00 0.78 14.27 82.67 32.46 285.24 0.5412 -741.0 -666.9


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
