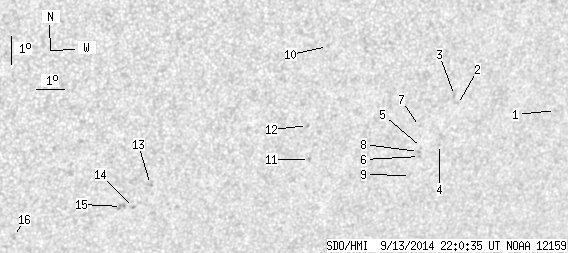

SDO HMI 2014-09-13 22:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 21.76 | 0.00 | 13.91 | -23.58 | 74.10 | 23.89 | 216.02 | 0.6311 | 184.8 | 24.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-13 22:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.33 | 0.00 | 0.93 | -22.46 | 84.08 | 33.86 | 227.28 | 0.7033 | 158.0 | 77.9 | |
| 0.00 | 0.98 | 0.00 | 0.65 | -21.97 | 80.18 | 29.97 | 224.45 | 0.6639 | 492.0 | 544.0 | |
| 0.00 | 1.24 | 0.00 | 0.82 | -21.65 | 80.00 | 29.78 | 224.64 | 0.6594 | 603.0 | 525.8 | |
| 0.00 | 0.89 | 0.00 | 0.59 | -23.33 | 79.83 | 29.62 | 222.61 | 0.6726 | 298.0 | 340.5 | |
| 0.00 | 0.53 | 0.00 | 0.35 | -23.39 | 79.16 | 28.95 | 221.91 | 0.6674 | 343.0 | 411.7 | |
| 0.00 | 0.89 | 0.00 | 0.59 | -23.70 | 79.16 | 28.95 | 221.57 | 0.6702 | 561.0 | 536.6 | |
| 0.00 | 0.62 | 0.00 | 0.41 | -22.64 | 78.91 | 28.70 | 222.49 | 0.6585 | 478.0 | 403.6 | |
| 0.00 | 1.16 | 0.00 | 0.77 | -23.52 | 79.08 | 28.87 | 221.69 | 0.6679 | 641.0 | 564.8 | |
| 0.00 | 0.44 | 0.00 | 0.30 | -24.36 | 78.98 | 28.77 | 220.71 | 0.6746 | 360.0 | 266.8 | |
| 0.00 | 1.33 | 0.00 | 0.82 | -19.67 | 75.00 | 24.78 | 221.80 | 0.5945 | 617.0 | 503.2 | |
| 0.00 | 1.78 | 0.00 | 1.14 | -23.55 | 75.06 | 24.85 | 217.55 | 0.6343 | 706.0 | 518.7 | |
| 0.00 | 1.24 | 0.00 | 0.78 | -22.35 | 74.76 | 24.54 | 218.49 | 0.6195 | 367.0 | 428.6 | |
| 0.00 | 1.42 | 0.00 | 0.88 | -24.14 | 69.50 | 19.29 | 210.39 | 0.5982 | -383.0 | -508.1 | |
| 0.00 | 1.51 | 0.00 | 0.94 | -24.93 | 69.03 | 18.82 | 209.07 | 0.6043 | -686.0 | -443.2 | |
| 0.00 | 4.00 | 0.00 | 2.47 | -24.87 | 68.60 | 18.39 | 208.56 | 0.6007 | -909.0 | -655.9 | |
| 0.00 | 2.40 | 0.00 | 1.47 | -25.80 | 64.97 | 14.75 | 202.95 | 0.5901 | -690.0 | -484.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
