groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

12158 117.10 580.62 74.25 367.18 15.43 88.07 38.41 285.74 0.6249 420.1 303.4


previous   or   next   observation for the same group / back to the solar disc

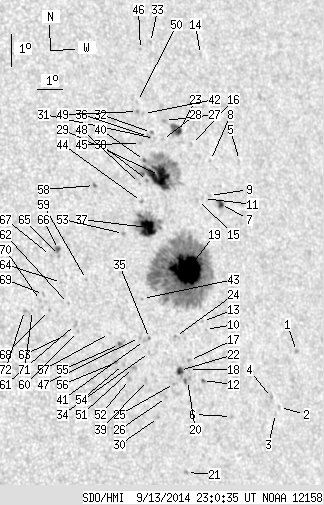

SDO HMI 2014-09-13 23:00:35 UT
No observation available
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 0.00 1.60 0.00 1.07 12.00 92.35 42.69 279.91 0.6755 -518.0 -481.3
2 0.00 1.33 0.00 0.88 10.38 91.34 41.68 277.52 0.6621 -411.0 -342.4
3 0.00 0.89 0.00 0.58 10.22 91.15 41.49 277.27 0.6596 -256.0 -370.8
4 0.00 1.87 0.00 1.23 10.71 91.07 41.41 278.02 0.6586 -634.0 -503.1
5 0.00 0.44 0.00 0.30 17.96 91.39 41.73 288.87 0.6715 451.0 373.2
6 0.00 1.42 0.00 0.91 10.27 89.38 39.72 277.39 0.6363 -326.0 -313.8
7 2.76 4.45 1.80 2.91 16.69 90.25 40.58 287.23 0.6547 652.1 423.6
8 0.00 0.71 0.00 0.47 18.05 90.20 40.54 289.30 0.6570 516.0 385.9
9 0.00 1.07 0.00 0.69 17.00 89.87 40.21 287.78 0.6506 449.0 388.1
10 0.00 0.36 0.00 0.23 12.97 88.80 39.14 281.70 0.6305 -10.0 -151.0
11 0.00 0.36 0.00 0.23 16.92 89.60 39.94 287.74 0.6471 560.0 559.8
12 0.36 1.69 0.22 1.07 11.44 88.41 38.75 279.31 0.6239 -476.0 -486.3
13 0.00 0.98 0.00 0.62 13.22 88.73 39.07 282.11 0.6298 -404.0 -299.0
14 0.00 1.07 0.00 0.71 21.32 90.79 41.13 293.96 0.6729 312.0 301.8
15 0.00 1.60 0.00 1.03 16.88 89.34 39.68 287.73 0.6438 645.0 597.3
16 0.00 1.33 0.00 0.87 18.60 89.56 39.90 290.30 0.6505 -382.0 -480.3
17 0.00 1.60 0.00 1.01 12.08 88.01 38.35 280.38 0.6190 -596.0 -490.2
18 0.00 1.33 0.00 0.84 11.82 87.92 38.26 279.95 0.6176 -495.0 -481.9
19 54.77 333.60 34.80 211.34 14.83 88.46 38.80 284.71 0.6285 1198.9 481.1
20 0.00 3.82 0.00 2.40 11.49 87.83 38.17 279.43 0.6161 -731.0 -582.1
21 0.00 1.96 0.00 1.22 8.73 87.40 37.74 274.93 0.6095 -651.0 -498.4
22 3.02 6.05 1.89 3.78 11.81 87.57 37.91 279.98 0.6129 -766.8 -625.9
23 2.67 10.85 1.73 7.02 19.04 89.14 39.48 291.08 0.6465 -772.9 -439.3
24 0.00 1.07 0.00 0.67 12.85 87.59 37.93 281.67 0.6142 -379.0 -316.2
25 0.00 1.69 0.00 1.05 11.44 87.31 37.65 279.39 0.6091 -755.0 -576.0
26 0.00 0.89 0.00 0.55 11.04 86.94 37.28 278.76 0.6037 -633.0 -610.6
27 0.00 1.87 0.00 1.20 19.42 88.67 39.01 291.81 0.6417 -216.0 -178.8
28 0.00 0.89 0.00 0.57 18.84 88.43 38.77 291.00 0.6371 339.0 332.5
29 33.43 94.69 21.25 60.32 17.76 88.02 38.36 289.44 0.6290 864.8 254.7
30 0.00 0.89 0.00 0.55 10.46 86.55 36.89 277.82 0.5980 -740.0 -665.3
31 0.00 0.71 0.00 0.45 18.90 88.12 38.46 291.19 0.6333 544.0 454.2
32 0.00 1.24 0.00 0.79 19.09 88.05 38.39 291.50 0.6330 475.0 410.9
33 0.00 1.07 0.00 0.69 21.85 88.84 39.18 295.42 0.6515 436.0 401.5
34 0.00 0.89 0.00 0.55 12.44 86.50 36.84 281.14 0.5990 -589.0 -437.4
35 0.00 0.98 0.00 0.60 12.86 86.58 36.92 281.84 0.6005 -539.0 -436.2
36 0.00 1.51 0.00 0.96 18.98 87.90 38.23 291.38 0.6307 652.0 571.8
37 18.14 46.77 11.36 29.31 16.22 87.17 37.51 287.22 0.6143 982.3 468.9
38 0.00 1.42 0.00 0.90 17.64 87.51 37.84 289.40 0.6221 901.0 724.4
39 0.00 0.80 0.00 0.49 11.61 86.29 36.63 279.77 0.5953 -608.0 -636.3
40 0.53 -29.00 0.34 -29.00 18.26 87.54 37.88 290.37 0.6242 569.0 999999
41 0.00 1.07 0.00 0.66 12.82 86.38 36.71 281.79 0.5977 -671.0 -573.1
42 0.00 1.07 0.00 0.68 19.70 87.89 38.23 292.49 0.6329 516.0 465.0
43 0.00 0.71 0.00 0.44 14.09 86.53 36.87 283.88 0.6016 674.0 520.6
44 0.00 1.78 0.00 1.12 17.02 87.11 37.45 288.53 0.6155 797.0 670.3
45 0.00 1.07 0.00 0.68 18.79 87.52 37.86 291.21 0.6255 736.0 667.5
46 0.00 0.80 0.00 0.52 21.67 88.36 38.70 295.32 0.6452 564.0 451.8
47 0.00 1.24 0.00 0.77 12.92 86.20 36.54 281.99 0.5955 -342.0 -414.4
48 0.00 0.89 0.00 0.56 17.58 87.17 37.51 289.40 0.6176 683.0 536.1
49 0.00 1.16 0.00 0.74 19.77 87.67 38.01 292.69 0.6303 686.0 546.1
50 0.00 0.36 0.00 0.23 20.08 87.76 38.10 293.13 0.6324 606.0 529.8
51 0.00 1.96 0.00 1.20 12.04 85.82 36.16 280.55 0.5892 -781.0 -683.5
52 0.00 2.13 0.00 1.30 11.69 85.62 35.96 279.98 0.5860 -635.0 -488.9
53 0.00 1.60 0.00 0.99 16.11 86.20 36.53 287.29 0.6012 692.0 524.4
54 0.00 1.33 0.00 0.81 12.15 85.46 35.80 280.80 0.5843 -705.0 -608.5
55 0.44 3.82 0.27 2.33 12.77 85.41 35.74 281.85 0.5843 -863.0 -729.1
56 0.00 1.24 0.00 0.76 12.24 85.17 35.51 280.98 0.5804 -801.0 -685.8
57 0.00 0.27 0.00 0.16 13.13 85.08 35.42 282.52 0.5804 -667.0 -678.3
58 0.00 1.60 0.00 0.98 17.64 85.41 35.74 290.06 0.5949 790.0 709.2
59 0.00 0.71 0.00 0.43 14.82 84.51 34.85 285.56 0.5756 -639.0 -524.1
60 0.00 1.16 0.00 0.69 13.27 83.94 34.27 282.99 0.5647 -604.0 -486.7
61 0.00 2.49 0.00 1.49 13.49 83.86 34.20 283.39 0.5640 -573.0 -493.3
62 0.00 0.98 0.00 0.59 14.14 83.71 34.04 284.58 0.5631 -559.0 -454.5
63 0.00 1.24 0.00 0.74 13.18 83.40 33.74 282.95 0.5570 -752.0 -628.5
64 0.00 1.07 0.00 0.64 14.79 83.56 33.90 285.77 0.5624 -574.0 -426.6
65 0.00 1.42 0.00 0.85 15.61 83.63 33.97 287.19 0.5655 -579.0 -495.1
66 0.98 3.38 0.59 2.03 15.80 83.63 33.97 287.51 0.5659 -770.6 -622.1
67 0.00 0.98 0.00 0.58 15.64 83.30 33.64 287.33 0.5609 -505.0 -501.4
68 0.00 1.07 0.00 0.63 13.98 82.97 33.31 284.47 0.5524 -745.0 -615.5
69 0.00 1.33 0.00 0.79 14.48 82.83 33.17 285.40 0.5516 -628.0 -508.4
70 0.00 1.07 0.00 0.63 14.30 82.69 33.02 285.13 0.5492 -782.0 -684.2
71 0.00 0.62 0.00 0.37 14.02 82.34 32.68 284.71 0.5437 -603.0 -493.9
72 0.00 1.24 0.00 0.73 14.04 82.05 32.39 284.82 0.5397 -789.0 -693.6


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
