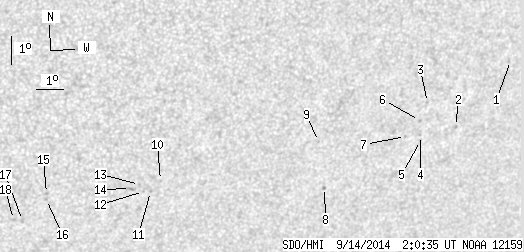

SDO HMI 2014-09-14 02:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 19.84 | 0.00 | 12.82 | -24.31 | 72.42 | 24.41 | 215.77 | 0.6428 | -6.4 | -56.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-14 02:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.71 | 0.00 | 0.49 | -21.17 | 81.89 | 33.88 | 228.76 | 0.6936 | 429.0 | 397.8 | |
| 0.00 | 1.16 | 0.00 | 0.80 | -23.32 | 80.32 | 32.31 | 225.02 | 0.6961 | 603.0 | 491.4 | |
| 0.00 | 0.98 | 0.00 | 0.66 | -22.39 | 79.00 | 30.99 | 224.90 | 0.6767 | 686.0 | 543.5 | |
| 0.00 | 0.62 | 0.00 | 0.42 | -23.54 | 79.02 | 31.01 | 223.65 | 0.6866 | 651.0 | 582.1 | |
| 0.00 | 1.33 | 0.00 | 0.91 | -23.72 | 79.07 | 31.06 | 223.50 | 0.6885 | 580.0 | 393.2 | |
| 0.00 | 1.07 | 0.00 | 0.72 | -23.00 | 78.85 | 30.84 | 224.08 | 0.6805 | 489.0 | 536.5 | |
| 0.00 | 0.98 | 0.00 | 0.66 | -23.53 | 78.45 | 30.44 | 223.14 | 0.6815 | 671.0 | 535.3 | |
| 0.00 | 1.33 | 0.00 | 0.89 | -25.15 | 75.78 | 27.77 | 218.91 | 0.6737 | 609.0 | 465.4 | |
| 0.00 | 0.71 | 0.00 | 0.46 | -23.49 | 75.16 | 27.15 | 220.04 | 0.6529 | 634.0 | 517.6 | |
| 0.00 | 0.36 | 0.00 | 0.22 | -24.54 | 69.64 | 21.63 | 212.89 | 0.6197 | -537.0 | -618.2 | |
| 0.00 | 1.07 | 0.00 | 0.67 | -24.92 | 69.35 | 21.34 | 212.19 | 0.6217 | -498.0 | -421.6 | |
| 0.00 | 0.62 | 0.00 | 0.39 | -24.90 | 69.09 | 21.09 | 211.90 | 0.6198 | -622.0 | -519.1 | |
| 0.00 | 0.89 | 0.00 | 0.56 | -24.65 | 68.91 | 20.90 | 211.91 | 0.6155 | -592.0 | -472.8 | |
| 0.00 | 2.49 | 0.00 | 1.56 | -24.77 | 68.61 | 20.60 | 211.43 | 0.6148 | -737.0 | -650.2 | |
| 0.00 | 1.07 | 0.00 | 0.66 | -24.81 | 65.66 | 17.65 | 207.65 | 0.5952 | -706.0 | -577.9 | |
| 0.00 | 0.62 | 0.00 | 0.38 | -25.03 | 65.69 | 17.68 | 207.51 | 0.5980 | -710.0 | -621.0 | |
| 0.00 | 1.87 | 0.00 | 1.16 | -25.75 | 64.96 | 16.95 | 205.95 | 0.6022 | -736.0 | -617.9 | |
| 0.00 | 1.96 | 0.00 | 1.21 | -25.70 | 64.63 | 16.62 | 205.56 | 0.5996 | -330.0 | -349.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
