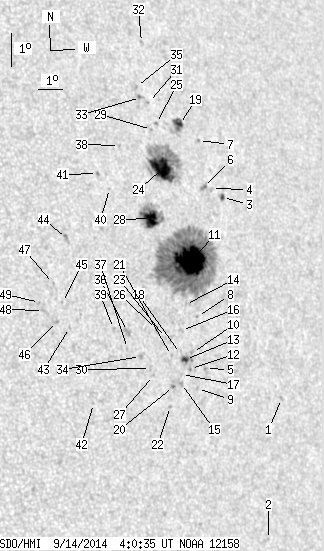

SDO HMI 2014-09-14 04:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 108.00 | 535.84 | 71.20 | 352.27 | 15.43 | 88.13 | 41.22 | 285.21 | 0.6608 | 479.2 | 294.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-14 04:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.60 | 0.00 | 1.10 | 10.35 | 91.39 | 44.48 | 277.44 | 0.6974 | -426.0 | -367.3 | |
| 0.00 | 0.80 | 0.00 | 0.54 | 6.17 | 90.24 | 43.33 | 271.32 | 0.6847 | -430.0 | -351.6 | |
| 1.33 | 2.67 | 0.91 | 1.82 | 16.61 | 90.30 | 43.39 | 286.58 | 0.6891 | 663.0 | 482.8 | |
| 0.00 | 1.42 | 0.00 | 0.96 | 16.92 | 89.91 | 43.00 | 287.10 | 0.6849 | 498.0 | 418.9 | |
| 0.00 | 1.16 | 0.00 | 0.76 | 11.52 | 88.40 | 41.49 | 279.26 | 0.6600 | -668.0 | -525.1 | |
| 0.00 | 3.47 | 0.00 | 2.34 | 16.98 | 89.58 | 42.67 | 287.25 | 0.6810 | 739.0 | 616.0 | |
| 0.00 | 1.16 | 0.00 | 0.79 | 18.42 | 89.79 | 42.88 | 289.29 | 0.6864 | -669.0 | -564.1 | |
| 0.00 | 0.98 | 0.00 | 0.64 | 13.11 | 88.38 | 41.47 | 281.67 | 0.6608 | -438.0 | -318.3 | |
| 0.00 | 0.89 | 0.00 | 0.58 | 10.95 | 87.97 | 41.06 | 278.41 | 0.6542 | -567.0 | -508.4 | |
| 0.00 | 1.60 | 0.00 | 1.05 | 12.05 | 87.96 | 41.05 | 280.09 | 0.6546 | -587.0 | -499.3 | |
| 52.04 | 316.17 | 34.39 | 208.35 | 14.82 | 88.51 | 41.60 | 284.23 | 0.6644 | 1168.7 | 462.0 | |
| 0.00 | 2.14 | 0.00 | 1.39 | 11.57 | 87.79 | 40.88 | 279.38 | 0.6521 | -744.0 | -589.9 | |
| 2.40 | 7.03 | 1.56 | 4.58 | 11.86 | 87.64 | 40.73 | 279.83 | 0.6503 | -854.4 | -639.8 | |
| 0.00 | 0.44 | 0.00 | 0.29 | 13.51 | 87.97 | 41.05 | 282.33 | 0.6560 | 183.0 | 160.4 | |
| 0.00 | 2.31 | 0.00 | 1.50 | 11.15 | 87.35 | 40.44 | 278.75 | 0.6462 | -607.0 | -495.0 | |
| 0.00 | 1.96 | 0.00 | 1.27 | 12.75 | 87.65 | 40.73 | 281.19 | 0.6511 | -377.0 | -340.0 | |
| 0.00 | 0.80 | 0.00 | 0.52 | 11.42 | 87.40 | 40.49 | 279.17 | 0.6469 | -737.0 | -634.2 | |
| 0.00 | 1.07 | 0.00 | 0.69 | 12.06 | 87.47 | 40.56 | 280.14 | 0.6483 | -365.0 | -382.1 | |
| 2.85 | 12.90 | 1.92 | 8.67 | 18.97 | 89.14 | 42.23 | 290.25 | 0.6798 | -695.6 | -304.8 | |
| 0.00 | 1.25 | 0.00 | 0.80 | 11.09 | 87.02 | 40.11 | 278.67 | 0.6418 | -811.0 | -734.8 | |
| 0.00 | 0.71 | 0.00 | 0.46 | 12.03 | 87.10 | 40.19 | 280.13 | 0.6434 | -604.0 | -523.6 | |
| 0.00 | 1.07 | 0.00 | 0.69 | 10.50 | 86.80 | 39.89 | 277.75 | 0.6387 | -702.0 | -633.7 | |
| 0.00 | 0.71 | 0.00 | 0.46 | 12.59 | 86.96 | 40.05 | 281.01 | 0.6421 | -570.0 | -523.5 | |
| 32.74 | 94.12 | 21.61 | 62.26 | 17.69 | 88.04 | 41.12 | 288.63 | 0.6635 | 872.0 | 222.9 | |
| 0.00 | 1.69 | 0.00 | 1.12 | 19.08 | 88.19 | 41.28 | 290.65 | 0.6686 | 477.0 | 396.4 | |
| 0.00 | 1.60 | 0.00 | 1.03 | 12.86 | 86.65 | 39.74 | 281.47 | 0.6382 | -550.0 | -465.4 | |
| 0.00 | 0.89 | 0.00 | 0.57 | 11.48 | 86.28 | 39.37 | 279.34 | 0.6322 | -610.0 | -497.7 | |
| 16.64 | 40.66 | 10.81 | 26.43 | 16.22 | 87.19 | 40.27 | 286.59 | 0.6500 | 945.6 | 435.2 | |
| 0.00 | 0.80 | 0.00 | 0.53 | 18.92 | 87.93 | 41.02 | 290.48 | 0.6650 | 701.0 | 624.8 | |
| 0.00 | 2.14 | 0.00 | 1.36 | 11.70 | 86.20 | 39.29 | 279.69 | 0.6313 | -587.0 | -561.3 | |
| 0.00 | 0.62 | 0.00 | 0.41 | 19.75 | 88.06 | 41.14 | 291.67 | 0.6687 | 549.0 | 461.1 | |
| 0.00 | 1.60 | 0.00 | 1.08 | 21.61 | 88.38 | 41.47 | 294.28 | 0.6777 | 533.0 | 456.1 | |
| 0.00 | 1.69 | 0.00 | 1.12 | 19.93 | 87.77 | 40.86 | 292.01 | 0.6657 | 775.0 | 618.3 | |
| 0.00 | 2.14 | 0.00 | 1.36 | 12.09 | 85.87 | 38.96 | 280.34 | 0.6272 | -787.0 | -675.1 | |
| 0.00 | 0.98 | 0.00 | 0.65 | 20.28 | 87.71 | 40.80 | 292.55 | 0.6660 | 685.0 | 589.4 | |
| 0.00 | 4.18 | 0.00 | 2.64 | 12.89 | 85.50 | 38.58 | 281.65 | 0.6230 | -833.0 | -677.9 | |
| 0.00 | 0.98 | 0.00 | 0.62 | 12.37 | 85.40 | 38.49 | 280.84 | 0.6212 | -681.0 | -514.0 | |
| 0.00 | 1.07 | 0.00 | 0.69 | 18.53 | 86.48 | 39.56 | 290.30 | 0.6462 | 566.0 | 461.3 | |
| 0.00 | 1.33 | 0.00 | 0.84 | 13.02 | 84.97 | 38.05 | 281.94 | 0.6161 | -644.0 | -559.0 | |
| 0.00 | 1.25 | 0.00 | 0.80 | 17.26 | 85.73 | 38.81 | 288.54 | 0.6336 | 658.0 | 571.6 | |
| 0.00 | 1.51 | 0.00 | 0.96 | 17.75 | 85.36 | 38.45 | 289.41 | 0.6302 | 712.0 | 628.5 | |
| 0.00 | 0.98 | 0.00 | 0.60 | 10.82 | 83.83 | 36.91 | 278.43 | 0.5986 | -709.0 | -556.6 | |
| 0.00 | 1.25 | 0.00 | 0.77 | 13.18 | 83.28 | 36.37 | 282.46 | 0.5935 | -586.0 | -530.5 | |
| 0.00 | 3.56 | 0.00 | 2.21 | 15.87 | 83.69 | 36.77 | 286.85 | 0.6039 | -702.0 | -547.1 | |
| 0.00 | 0.98 | 0.00 | 0.60 | 13.95 | 83.15 | 36.23 | 283.78 | 0.5929 | -783.0 | -579.8 | |
| 0.00 | 2.22 | 0.00 | 1.36 | 13.39 | 82.82 | 35.90 | 282.90 | 0.5875 | -682.0 | -619.6 | |
| 0.00 | 1.07 | 0.00 | 0.65 | 14.55 | 82.91 | 36.00 | 284.84 | 0.5908 | -567.0 | -501.8 | |
| 0.00 | 1.42 | 0.00 | 0.87 | 13.76 | 82.38 | 35.47 | 283.61 | 0.5821 | -795.0 | -597.9 | |
| 0.00 | 0.80 | 0.00 | 0.49 | 14.01 | 82.27 | 35.36 | 284.07 | 0.5811 | -729.0 | -622.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
