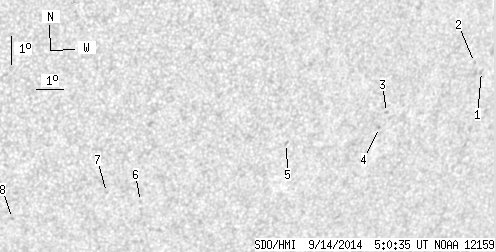

SDO HMI 2014-09-14 05:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.70 | 0.00 | 6.49 | -23.27 | 75.64 | 29.28 | 221.93 | 0.6728 | 131.6 | 162.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-14 05:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.87 | 0.00 | 1.32 | -21.49 | 82.15 | 35.79 | 229.89 | 0.7138 | 593.0 | 469.6 | |
| 0.00 | 0.89 | 0.00 | 0.62 | -21.16 | 81.78 | 35.42 | 229.99 | 0.7079 | 322.0 | 379.3 | |
| 0.00 | 1.42 | 0.00 | 0.97 | -22.64 | 78.72 | 32.36 | 225.83 | 0.6910 | 638.0 | 511.8 | |
| 0.00 | 0.53 | 0.00 | 0.37 | -23.15 | 78.59 | 32.22 | 225.15 | 0.6939 | 717.0 | 607.5 | |
| 0.00 | 1.60 | 0.00 | 1.06 | -23.46 | 75.12 | 28.75 | 221.65 | 0.6662 | 651.0 | 511.1 | |
| 0.00 | 1.16 | 0.00 | 0.75 | -25.20 | 70.10 | 23.74 | 214.68 | 0.6425 | -516.0 | -384.8 | |
| 0.00 | 1.16 | 0.00 | 0.73 | -24.80 | 68.79 | 22.43 | 213.58 | 0.6284 | -640.0 | -550.5 | |
| 0.00 | 1.07 | 0.00 | 0.67 | -25.57 | 65.57 | 19.21 | 209.01 | 0.6143 | -712.0 | -554.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
