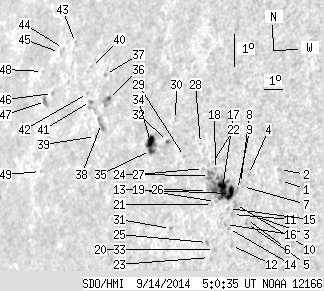

SDO HMI 2014-09-14 05:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.05 | 132.40 | 22.58 | 113.37 | 13.03 | 351.19 | -55.17 | 79.13 | 0.8146 | -152.4 | 19.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-14 05:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.07 | 0.00 | 0.81 | 12.99 | 356.85 | -49.51 | 79.04 | 0.7571 | -711.0 | -555.3 | |
| 0.00 | 1.78 | 0.00 | 1.35 | 13.32 | 356.72 | -49.65 | 78.62 | 0.7588 | -658.0 | -538.0 | |
| 0.00 | 2.31 | 0.00 | 1.78 | 11.80 | 355.96 | -50.41 | 80.63 | 0.7668 | -673.0 | -555.5 | |
| 0.00 | 1.16 | 0.00 | 0.90 | 13.03 | 355.28 | -51.08 | 79.05 | 0.7743 | -605.0 | -458.9 | |
| 0.00 | 0.98 | 0.00 | 0.76 | 11.55 | 355.58 | -50.79 | 80.96 | 0.7709 | -562.0 | -532.3 | |
| 0.00 | 0.27 | 0.00 | 0.21 | 11.67 | 355.55 | -50.82 | 80.80 | 0.7712 | -657.0 | -639.3 | |
| 0.00 | 0.80 | 0.00 | 0.63 | 12.64 | 355.09 | -51.27 | 79.55 | 0.7763 | -665.0 | -540.4 | |
| 0.00 | 0.62 | 0.00 | 0.49 | 12.72 | 354.97 | -51.39 | 79.45 | 0.7776 | -552.0 | -513.7 | |
| 0.00 | 1.42 | 0.00 | 1.12 | 12.53 | 354.88 | -51.49 | 79.70 | 0.7786 | -654.0 | -548.3 | |
| 0.00 | 2.76 | 0.00 | 2.17 | 12.07 | 354.90 | -51.46 | 80.29 | 0.7783 | -736.0 | -666.1 | |
| 0.00 | 2.31 | 0.00 | 1.82 | 11.76 | 354.84 | -51.53 | 80.69 | 0.7790 | -628.0 | -518.7 | |
| 0.00 | 1.51 | 0.00 | 1.18 | 10.83 | 355.02 | -51.35 | 81.89 | 0.7770 | -570.0 | -453.4 | |
| 6.14 | 39.24 | 4.86 | 31.34 | 12.38 | 354.57 | -51.79 | 79.90 | 0.7819 | -843.8 | -172.1 | |
| 0.00 | 0.98 | 0.00 | 0.77 | 11.32 | 354.75 | -51.62 | 81.26 | 0.7799 | -636.0 | -534.3 | |
| 0.00 | 1.33 | 0.00 | 1.06 | 11.92 | 354.59 | -51.77 | 80.49 | 0.7816 | -453.0 | -454.0 | |
| 0.00 | 1.07 | 0.00 | 0.84 | 11.43 | 354.57 | -51.79 | 81.12 | 0.7818 | -589.0 | -550.2 | |
| 9.52 | -13.00 | 7.60 | -13.00 | 12.49 | 354.13 | -52.23 | 79.77 | 0.7865 | -626.6 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.86 | 13.02 | 353.62 | -52.74 | 79.10 | 0.7920 | -428.0 | -371.8 | |
| 0.00 | 0.98 | 0.00 | 0.79 | 12.07 | 353.90 | -52.47 | 80.31 | 0.7890 | -304.0 | -265.8 | |
| 0.00 | 2.05 | 0.00 | 1.63 | 10.63 | 354.22 | -52.15 | 82.14 | 0.7856 | -549.0 | -425.2 | |
| 0.00 | 0.53 | 0.00 | 0.43 | 11.96 | 353.77 | -52.59 | 80.44 | 0.7903 | -120.0 | -78.5 | |
| 0.00 | 0.89 | 0.00 | 0.72 | 13.21 | 353.41 | -52.96 | 78.86 | 0.7942 | -265.0 | -227.2 | |
| 0.00 | 0.89 | 0.00 | 0.71 | 10.37 | 354.03 | -52.34 | 82.47 | 0.7877 | -488.0 | -510.6 | |
| 0.00 | 5.96 | 0.00 | 4.84 | 12.81 | 353.37 | -52.99 | 79.37 | 0.7945 | 229.0 | 31.2 | |
| 0.00 | 1.87 | 0.00 | 1.50 | 10.80 | 353.82 | -52.54 | 81.91 | 0.7898 | -400.0 | -362.8 | |
| 0.00 | 1.07 | 0.00 | 0.87 | 12.35 | 353.40 | -52.96 | 79.94 | 0.7941 | -84.0 | -65.5 | |
| 0.00 | 1.42 | 0.00 | 1.17 | 12.99 | 353.01 | -53.36 | 79.15 | 0.7983 | 409.0 | 389.8 | |
| 0.00 | 0.89 | 0.00 | 0.74 | 13.72 | 352.62 | -53.75 | 78.24 | 0.8024 | -326.0 | -219.0 | |
| 0.00 | 0.98 | 0.00 | 0.82 | 13.25 | 351.92 | -54.45 | 78.84 | 0.8094 | 335.0 | 331.3 | |
| 0.00 | 0.71 | 0.00 | 0.61 | 14.30 | 351.06 | -55.30 | 77.56 | 0.8180 | -353.0 | -303.0 | |
| 0.00 | 1.42 | 0.00 | 1.20 | 11.04 | 351.84 | -54.53 | 81.58 | 0.8102 | -497.0 | -389.9 | |
| 0.62 | 1.51 | 0.54 | 1.30 | 13.61 | 350.87 | -55.49 | 78.42 | 0.8197 | 733.9 | 623.0 | |
| 0.00 | 0.71 | 0.00 | 0.60 | 10.39 | 351.85 | -54.52 | 82.38 | 0.8103 | -415.0 | -324.2 | |
| 5.96 | 16.46 | 5.24 | 14.45 | 13.51 | 349.96 | -56.41 | 78.54 | 0.8285 | 667.4 | 493.3 | |
| 3.20 | -34.00 | 2.81 | -34.00 | 13.25 | 350.05 | -56.31 | 78.86 | 0.8276 | 639.1 | 999999 | |
| 1.25 | 6.32 | 1.18 | 6.00 | 14.54 | 347.08 | -59.29 | 77.34 | 0.8550 | 42.7 | 363.8 | |
| 0.00 | 1.16 | 0.00 | 1.11 | 15.23 | 346.58 | -59.79 | 76.54 | 0.8594 | 605.0 | 518.8 | |
| 0.00 | 8.01 | 0.00 | 7.62 | 13.76 | 346.98 | -59.38 | 78.26 | 0.8558 | 475.0 | 394.3 | |
| 0.00 | 0.71 | 0.00 | 0.68 | 13.34 | 346.78 | -59.58 | 78.75 | 0.8576 | 332.0 | 369.6 | |
| 0.00 | 0.80 | 0.00 | 0.79 | 15.38 | 345.62 | -60.75 | 76.38 | 0.8676 | -173.0 | -183.3 | |
| 0.36 | 6.41 | 0.35 | 6.23 | 14.34 | 346.04 | -60.32 | 77.58 | 0.8639 | 570.5 | 472.1 | |
| 0.00 | 1.16 | 0.00 | 1.14 | 14.55 | 345.75 | -60.61 | 77.33 | 0.8664 | 414.0 | 309.9 | |
| 0.00 | 0.80 | 0.00 | 0.83 | 15.98 | 344.25 | -62.11 | 75.71 | 0.8788 | 512.0 | 423.7 | |
| 0.00 | 0.89 | 0.00 | 0.94 | 15.72 | 343.57 | -62.79 | 76.01 | 0.8842 | 465.0 | 410.2 | |
| 0.00 | 0.71 | 0.00 | 0.75 | 15.57 | 343.38 | -62.99 | 76.17 | 0.8858 | 300.0 | 366.0 | |
| 0.00 | 0.98 | 0.00 | 1.03 | 14.31 | 343.55 | -62.82 | 77.59 | 0.8845 | 423.0 | 465.5 | |
| 0.00 | 3.47 | 0.00 | 3.70 | 14.03 | 343.20 | -63.16 | 77.91 | 0.8872 | 589.0 | 423.7 | |
| 0.00 | 0.80 | 0.00 | 0.87 | 14.89 | 342.55 | -63.82 | 76.94 | 0.8922 | 406.0 | 319.4 | |
| 0.00 | 1.16 | 0.00 | 1.21 | 11.94 | 343.80 | -62.56 | 80.30 | 0.8828 | 613.0 | 502.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
