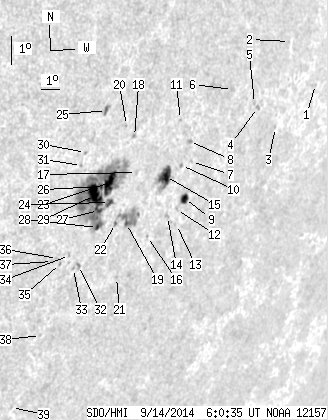

SDO HMI 2014-09-14 06:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 68.95 | 274.83 | 57.10 | 226.76 | -15.00 | 94.49 | 48.67 | 245.07 | 0.8019 | -238.7 | -214.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-14 06:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.27 | 0.00 | 0.27 | -12.53 | 104.04 | 58.22 | 251.37 | 0.8777 | 301.0 | 344.0 | |
| 0.00 | 0.62 | 0.00 | 0.60 | -10.95 | 102.03 | 56.22 | 252.51 | 0.8576 | 418.0 | 405.1 | |
| 0.00 | 0.80 | 0.00 | 0.79 | -13.69 | 102.15 | 56.33 | 249.49 | 0.8654 | 426.0 | 307.9 | |
| 0.00 | 1.60 | 0.00 | 1.51 | -12.91 | 100.88 | 55.07 | 249.94 | 0.8528 | 534.0 | 482.2 | |
| 0.00 | 1.07 | 0.00 | 1.00 | -12.76 | 100.67 | 54.85 | 250.03 | 0.8506 | 531.0 | 494.7 | |
| 0.00 | 2.49 | 0.00 | 2.24 | -12.18 | 99.32 | 53.50 | 250.24 | 0.8371 | 58.0 | 166.4 | |
| 0.00 | 1.07 | 0.00 | 0.94 | -14.32 | 97.87 | 52.06 | 247.26 | 0.8307 | 623.0 | 524.6 | |
| 0.00 | 2.31 | 0.00 | 2.02 | -13.65 | 97.56 | 51.74 | 247.91 | 0.8257 | -358.0 | -233.7 | |
| 5.07 | 7.12 | 4.54 | 6.37 | -15.52 | 97.93 | 52.11 | 245.92 | 0.8350 | 494.2 | 241.6 | |
| 0.00 | 1.25 | 0.00 | 1.09 | -14.40 | 97.39 | 51.57 | 246.98 | 0.8266 | 653.0 | 594.0 | |
| 0.00 | 0.89 | 0.00 | 0.76 | -12.88 | 96.88 | 51.06 | 248.54 | 0.8169 | -472.0 | -406.1 | |
| 0.00 | 1.07 | 0.00 | 0.95 | -15.84 | 97.63 | 51.82 | 245.44 | 0.8335 | 293.0 | 216.0 | |
| 0.00 | 0.44 | 0.00 | 0.40 | -16.35 | 97.82 | 52.00 | 244.95 | 0.8369 | -335.0 | -350.4 | |
| 0.00 | 1.96 | 0.00 | 1.73 | -16.03 | 97.24 | 51.43 | 245.07 | 0.8308 | 522.0 | 436.5 | |
| 14.32 | 24.64 | 12.36 | 21.26 | -14.68 | 96.68 | 50.86 | 246.38 | 0.8211 | 707.2 | 293.9 | |
| 0.00 | 0.98 | 0.00 | 0.85 | -16.60 | 96.44 | 50.63 | 244.10 | 0.8257 | 519.0 | 427.1 | |
| 0.00 | 1.42 | 0.00 | 1.19 | -14.40 | 95.18 | 49.36 | 246.08 | 0.8062 | 42.0 | 112.2 | |
| 0.00 | 1.60 | 0.00 | 1.31 | -13.20 | 94.74 | 48.92 | 247.30 | 0.7978 | -532.0 | -405.8 | |
| 1.33 | 23.58 | 1.13 | 19.94 | -16.05 | 95.22 | 49.40 | 244.19 | 0.8127 | -291.6 | -20.8 | |
| 0.00 | 1.07 | 0.00 | 0.86 | -12.80 | 94.26 | 48.44 | 247.57 | 0.7916 | 689.0 | 657.0 | |
| 0.00 | 1.25 | 0.00 | 1.07 | -17.83 | 95.37 | 49.55 | 242.24 | 0.8209 | 166.0 | 177.6 | |
| 0.44 | -19.00 | 0.37 | -19.00 | -15.99 | 94.67 | 48.85 | 244.01 | 0.8075 | -524.8 | 999999 | |
| 15.04 | 181.23 | 12.23 | 146.65 | -14.60 | 93.95 | 48.14 | 245.32 | 0.7954 | -738.9 | -344.8 | |
| 3.03 | -23.00 | 2.48 | -23.00 | -15.26 | 94.15 | 48.34 | 244.63 | 0.7998 | -458.3 | 999999 | |
| 1.16 | 4.18 | 0.91 | 3.29 | -12.22 | 93.19 | 47.37 | 247.82 | 0.7788 | -590.5 | -468.2 | |
| 1.33 | -23.00 | 1.08 | -23.00 | -14.69 | 93.61 | 47.79 | 245.05 | 0.7924 | -786.3 | 999999 | |
| 3.56 | -23.00 | 2.90 | -23.00 | -15.48 | 93.70 | 47.88 | 244.18 | 0.7964 | -576.1 | 999999 | |
| 1.87 | -23.00 | 1.53 | -23.00 | -16.04 | 93.83 | 48.01 | 243.58 | 0.7999 | 418.5 | 999999 | |
| 21.80 | -23.00 | 17.57 | -23.00 | -14.96 | 93.36 | 47.54 | 244.63 | 0.7911 | -938.7 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.63 | -13.50 | 92.54 | 46.73 | 245.99 | 0.7773 | -672.0 | -621.3 | |
| 0.00 | 0.98 | 0.00 | 0.77 | -13.91 | 92.47 | 46.65 | 245.47 | 0.7782 | -763.0 | -680.4 | |
| 0.00 | 2.58 | 0.00 | 2.12 | -17.23 | 93.33 | 47.51 | 241.97 | 0.8001 | -573.0 | -454.4 | |
| 0.00 | 1.51 | 0.00 | 1.24 | -17.31 | 93.12 | 47.30 | 241.78 | 0.7985 | -447.0 | -379.5 | |
| 0.00 | 1.25 | 0.00 | 1.01 | -16.85 | 92.78 | 46.96 | 242.15 | 0.7934 | -578.0 | -474.7 | |
| 0.00 | 1.42 | 0.00 | 1.15 | -17.08 | 92.44 | 46.62 | 241.72 | 0.7912 | -516.0 | -416.8 | |
| 0.00 | 0.98 | 0.00 | 0.78 | -16.90 | 92.24 | 46.42 | 241.83 | 0.7886 | -728.0 | -590.2 | |
| 0.00 | 0.80 | 0.00 | 0.64 | -16.97 | 92.04 | 46.22 | 241.64 | 0.7870 | -499.0 | -410.4 | |
| 0.00 | 0.89 | 0.00 | 0.73 | -19.45 | 92.34 | 46.52 | 238.96 | 0.8008 | -416.0 | -354.1 | |
| 0.00 | 0.71 | 0.00 | 0.60 | -21.83 | 91.92 | 46.10 | 236.08 | 0.8083 | -294.0 | -271.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
