SDO HMI 2014-09-14 06:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.86 | 0.00 | 7.25 | -23.39 | 75.03 | 29.21 | 221.79 | 0.6726 | 98.1 | 147.3 | |
|
previous
or next observation for the same group /

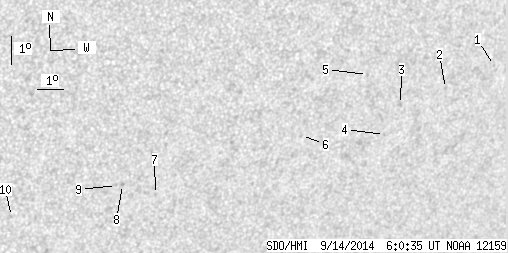

back to the solar disc SDO HMI 2014-09-14 06:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.80 | 0.00 | 0.57 | -21.54 | 82.15 | 36.33 | 230.25 | 0.7191 | 599.0 | 467.6 | |
| 0.00 | 1.25 | 0.00 | 0.87 | -22.18 | 80.37 | 34.56 | 228.15 | 0.7074 | 448.0 | 409.8 | |
| 0.00 | 1.96 | 0.00 | 1.35 | -22.61 | 78.72 | 32.90 | 226.32 | 0.6957 | 653.0 | 552.7 | |
| 0.00 | 0.89 | 0.00 | 0.62 | -23.63 | 78.37 | 32.56 | 224.91 | 0.7007 | 629.0 | 497.1 | |
| 0.00 | 1.07 | 0.00 | 0.71 | -21.47 | 77.16 | 31.34 | 226.28 | 0.6721 | 679.0 | 517.1 | |
| 0.00 | 0.89 | 0.00 | 0.59 | -23.43 | 75.13 | 29.31 | 222.22 | 0.6708 | 584.0 | 492.8 | |
| 0.00 | 0.98 | 0.00 | 0.63 | -25.19 | 70.11 | 24.29 | 215.29 | 0.6466 | -500.0 | -363.7 | |
| 0.00 | 1.60 | 0.00 | 1.02 | -24.77 | 68.82 | 23.00 | 214.27 | 0.6323 | -659.0 | -515.8 | |
| 0.00 | 0.44 | 0.00 | 0.28 | -24.79 | 68.61 | 22.79 | 214.01 | 0.6310 | -693.0 | -585.8 | |
| 0.00 | 0.98 | 0.00 | 0.61 | -25.72 | 65.02 | 19.20 | 208.87 | 0.6159 | -759.0 | -553.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
