SDO HMI 2014-09-14 08:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.34 | 0.00 | 8.71 | -24.36 | 70.42 | 25.70 | 217.37 | 0.6521 | -210.3 | -193.3 | |
|
previous
or next observation for the same group /

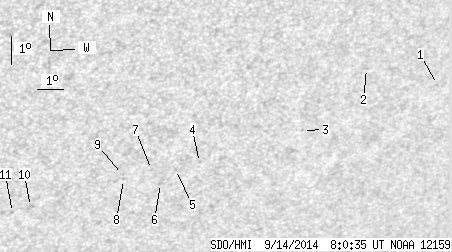

back to the solar disc SDO HMI 2014-09-14 08:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.07 | 0.00 | 0.75 | -22.23 | 80.11 | 35.39 | 228.75 | 0.7153 | 559.0 | 485.1 | |
| 0.00 | 1.25 | 0.00 | 0.84 | -21.46 | 77.11 | 32.39 | 227.21 | 0.6817 | 471.0 | 484.1 | |
| 0.00 | 0.80 | 0.00 | 0.54 | -23.45 | 75.16 | 30.44 | 223.25 | 0.6807 | 550.0 | 439.8 | |
| 0.00 | 0.53 | 0.00 | 0.35 | -24.33 | 71.50 | 26.78 | 218.78 | 0.6577 | -488.0 | -420.8 | |
| 0.00 | 1.51 | 0.00 | 0.99 | -24.53 | 70.65 | 25.93 | 217.71 | 0.6527 | -225.0 | -271.6 | |
| 0.00 | 1.42 | 0.00 | 0.93 | -25.00 | 70.20 | 25.48 | 216.76 | 0.6538 | -559.0 | -406.8 | |
| 0.00 | 0.89 | 0.00 | 0.58 | -24.47 | 69.76 | 25.04 | 216.82 | 0.6450 | -337.0 | -338.1 | |
| 0.00 | 0.53 | 0.00 | 0.34 | -24.77 | 68.80 | 24.08 | 215.47 | 0.6405 | -645.0 | -516.3 | |
| 0.00 | 0.98 | 0.00 | 0.63 | -24.59 | 68.72 | 24.00 | 215.57 | 0.6381 | -637.0 | -483.4 | |
| 0.00 | 3.11 | 0.00 | 1.97 | -25.56 | 65.59 | 20.87 | 211.04 | 0.6254 | -321.0 | -405.3 | |
| 0.00 | 1.25 | 0.00 | 0.79 | -25.75 | 64.98 | 20.26 | 210.15 | 0.6233 | -681.0 | -539.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
