SDO HMI 2014-09-14 08:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.75 | 129.67 | 25.98 | 104.96 | 12.87 | 352.04 | -52.68 | 79.29 | 0.7897 | -200.6 | -33.3 | |
|
previous
or next observation for the same group /

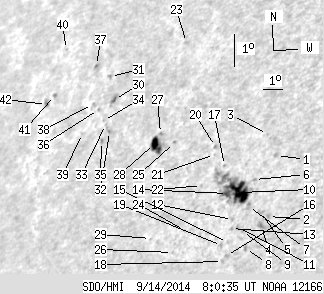

back to the solar disc SDO HMI 2014-09-14 08:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.22 | 0.00 | 1.66 | 13.71 | 355.85 | -48.87 | 78.05 | 0.7502 | -284.0 | -298.0 | |
| 0.00 | 1.42 | 0.00 | 1.06 | 11.85 | 355.96 | -48.77 | 80.53 | 0.7484 | -714.0 | -657.2 | |
| 0.00 | 0.71 | 0.00 | 0.54 | 14.30 | 355.25 | -49.47 | 77.30 | 0.7573 | -570.0 | -501.5 | |
| 0.00 | 3.65 | 0.00 | 2.73 | 11.55 | 355.70 | -49.02 | 80.93 | 0.7513 | -647.0 | -617.7 | |
| 0.00 | 3.03 | 0.00 | 2.27 | 11.97 | 355.55 | -49.17 | 80.39 | 0.7531 | -509.0 | -560.5 | |
| 0.00 | 1.51 | 0.00 | 1.15 | 12.90 | 355.03 | -49.70 | 79.17 | 0.7592 | -667.0 | -567.6 | |
| 0.00 | 3.47 | 0.00 | 2.63 | 12.06 | 354.95 | -49.77 | 80.27 | 0.7598 | -676.0 | -621.3 | |
| 0.00 | 1.78 | 0.00 | 1.35 | 10.80 | 355.11 | -49.61 | 81.94 | 0.7579 | -552.0 | -485.3 | |
| 0.00 | 0.89 | 0.00 | 0.68 | 11.29 | 354.86 | -49.87 | 81.29 | 0.7608 | -542.0 | -539.7 | |
| 21.98 | 55.61 | 16.85 | 42.96 | 12.44 | 354.42 | -50.30 | 79.78 | 0.7657 | -667.9 | -83.1 | |
| 0.00 | 1.87 | 0.00 | 1.43 | 11.39 | 354.59 | -50.13 | 81.16 | 0.7637 | -598.0 | -545.1 | |
| 0.00 | 1.07 | 0.00 | 0.82 | 11.60 | 354.30 | -50.42 | 80.88 | 0.7670 | -438.0 | -398.1 | |
| 0.00 | 1.25 | 0.00 | 0.96 | 11.33 | 354.31 | -50.41 | 81.24 | 0.7668 | -492.0 | -453.9 | |
| 3.20 | -10.00 | 2.49 | -10.00 | 12.36 | 353.86 | -50.86 | 79.90 | 0.7719 | 195.7 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.69 | 10.89 | 354.22 | -50.50 | 81.81 | 0.7678 | -448.0 | -415.6 | |
| 0.00 | 2.05 | 0.00 | 1.57 | 10.50 | 354.26 | -50.46 | 82.32 | 0.7674 | -470.0 | -384.9 | |
| 0.00 | 0.89 | 0.00 | 0.70 | 13.18 | 353.48 | -51.24 | 78.85 | 0.7761 | -299.0 | -264.3 | |
| 0.00 | 1.07 | 0.00 | 0.82 | 10.30 | 354.11 | -50.61 | 82.58 | 0.7690 | -459.0 | -364.8 | |
| 0.00 | 1.42 | 0.00 | 1.10 | 10.78 | 353.96 | -50.76 | 81.96 | 0.7707 | -356.0 | -332.1 | |
| 0.00 | 1.51 | 0.00 | 1.20 | 13.71 | 352.87 | -51.85 | 78.19 | 0.7828 | -429.0 | -350.7 | |
| 0.00 | 0.27 | 0.00 | 0.21 | 13.46 | 352.89 | -51.83 | 78.50 | 0.7825 | -183.0 | -143.0 | |
| 0.00 | 0.80 | 0.00 | 0.64 | 12.48 | 352.53 | -52.19 | 79.77 | 0.7861 | 407.0 | 352.9 | |
| 0.00 | 1.78 | 0.00 | 1.50 | 16.67 | 350.28 | -54.44 | 74.61 | 0.8106 | -213.0 | -182.8 | |
| 0.00 | 0.27 | 0.00 | 0.22 | 11.05 | 352.05 | -52.67 | 81.58 | 0.7912 | -428.0 | -443.3 | |
| 0.00 | 1.25 | 0.00 | 1.03 | 13.62 | 350.77 | -53.95 | 78.36 | 0.8044 | 534.0 | 502.6 | |
| 0.00 | 0.27 | 0.00 | 0.22 | 10.34 | 351.61 | -53.11 | 82.48 | 0.7959 | -282.0 | -278.3 | |
| 0.00 | 1.07 | 0.00 | 0.90 | 13.82 | 349.96 | -54.76 | 78.14 | 0.8127 | 612.0 | 551.4 | |
| 5.52 | 16.19 | 4.69 | 13.71 | 13.49 | 349.74 | -54.98 | 78.54 | 0.8147 | 464.0 | 532.3 | |
| 0.00 | 0.27 | 0.00 | 0.22 | 10.64 | 350.39 | -54.34 | 82.07 | 0.8084 | -292.0 | -300.3 | |
| 0.98 | 5.07 | 0.89 | 4.61 | 14.57 | 347.08 | -57.64 | 77.27 | 0.8402 | -241.0 | -24.6 | |
| 0.00 | 2.14 | 0.00 | 1.97 | 15.23 | 346.56 | -58.16 | 76.50 | 0.8450 | 710.0 | 529.2 | |
| 0.00 | 1.25 | 0.00 | 1.13 | 13.60 | 347.17 | -57.55 | 78.44 | 0.8393 | 575.0 | 506.1 | |
| 0.00 | 0.27 | 0.00 | 0.24 | 13.78 | 346.87 | -57.85 | 78.22 | 0.8421 | 537.0 | 496.0 | |
| 0.00 | 0.89 | 0.00 | 0.82 | 13.89 | 346.71 | -58.01 | 78.10 | 0.8436 | 459.0 | 420.1 | |
| 0.00 | 1.78 | 0.00 | 1.63 | 13.25 | 346.84 | -57.89 | 78.85 | 0.8424 | 386.0 | 298.6 | |
| 0.00 | 0.71 | 0.00 | 0.66 | 14.18 | 346.29 | -58.43 | 77.75 | 0.8474 | 565.0 | 566.4 | |
| 0.36 | 1.33 | 0.34 | 1.26 | 15.47 | 345.61 | -59.11 | 76.24 | 0.8536 | -174.0 | -127.1 | |
| 0.00 | 1.25 | 0.00 | 1.17 | 14.30 | 345.88 | -58.84 | 77.62 | 0.8510 | 466.0 | 415.8 | |
| 0.00 | 0.98 | 0.00 | 0.92 | 13.38 | 345.65 | -59.07 | 78.70 | 0.8531 | 333.0 | 310.4 | |
| 0.00 | 0.27 | 0.00 | 0.27 | 15.75 | 343.57 | -61.15 | 75.94 | 0.8710 | 473.0 | 453.7 | |
| 0.00 | 1.69 | 0.00 | 1.70 | 14.32 | 343.49 | -61.24 | 77.60 | 0.8717 | 586.0 | 418.1 | |
| 0.71 | 3.56 | 0.72 | 3.61 | 14.00 | 343.11 | -61.61 | 77.96 | 0.8748 | 424.9 | 312.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
