SDO HMI 2014-09-14 11:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.28 | 47.68 | 7.17 | 27.82 | -15.54 | 65.69 | 22.62 | 224.44 | 0.5312 | 712.0 | 571.1 | |
|
previous
or next observation for the same group /

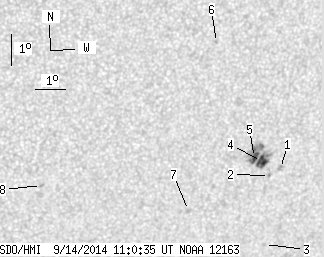

back to the solar disc SDO HMI 2014-09-14 11:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.85 | 0.00 | 1.68 | -15.75 | 66.78 | 23.71 | 225.54 | 0.5443 | 855.0 | 614.4 | |
| 0.00 | 1.33 | 0.00 | 0.79 | -15.96 | 66.43 | 23.36 | 224.83 | 0.5428 | 638.0 | 491.7 | |
| 0.00 | 1.42 | 0.00 | 0.85 | -18.24 | 66.56 | 23.49 | 222.04 | 0.5674 | 448.0 | 405.6 | |
| 7.83 | 37.18 | 4.58 | 21.71 | -15.48 | 66.10 | 23.03 | 225.07 | 0.5345 | 859.0 | 669.6 | |
| 4.45 | -4.00 | 2.59 | -4.00 | -15.34 | 65.85 | 22.77 | 224.95 | 0.5304 | 1069.6 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -11.55 | 64.21 | 21.14 | 228.43 | 0.4741 | 755.0 | 527.3 | |
| 0.00 | 1.96 | 0.00 | 1.14 | -16.97 | 63.80 | 20.73 | 220.11 | 0.5274 | 734.0 | 518.0 | |
| 0.00 | 1.78 | 0.00 | 1.00 | -15.94 | 58.83 | 15.75 | 213.90 | 0.4700 | -758.0 | -643.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
