SDO HMI 2014-09-14 12:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.26 | 236.91 | 47.51 | 209.08 | -14.87 | 94.37 | 51.84 | 246.55 | 0.8302 | -233.9 | -207.1 | |
|
previous
or next observation for the same group /

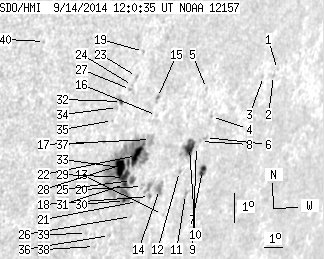

back to the solar disc SDO HMI 2014-09-14 12:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.27 | 0.00 | 0.28 | -12.59 | 100.98 | 58.45 | 251.38 | 0.8796 | 465.0 | 454.7 | |
| 0.00 | 1.16 | 0.00 | 1.19 | -12.76 | 100.80 | 58.28 | 251.14 | 0.8786 | 553.0 | 533.4 | |
| 0.00 | 0.71 | 0.00 | 0.72 | -12.72 | 100.20 | 57.68 | 250.99 | 0.8738 | 613.0 | 552.5 | |
| 0.00 | 0.89 | 0.00 | 0.84 | -13.72 | 97.62 | 55.09 | 249.06 | 0.8551 | -309.0 | -242.9 | |
| 0.00 | 0.98 | 0.00 | 0.91 | -12.76 | 97.03 | 54.50 | 249.93 | 0.8475 | -558.0 | -492.4 | |
| 0.00 | 1.87 | 0.00 | 1.78 | -14.38 | 97.53 | 55.00 | 248.29 | 0.8562 | 546.0 | 523.7 | |
| 4.54 | 6.58 | 4.39 | 6.38 | -15.46 | 97.79 | 55.26 | 247.17 | 0.8613 | 406.3 | 153.5 | |
| 0.00 | 0.62 | 0.00 | 0.59 | -14.48 | 97.30 | 54.77 | 248.09 | 0.8545 | 537.0 | 475.4 | |
| 0.00 | 0.27 | 0.00 | 0.25 | -14.62 | 97.13 | 54.60 | 247.87 | 0.8536 | 361.0 | 374.7 | |
| 10.14 | 16.90 | 9.48 | 15.79 | -14.61 | 96.75 | 54.22 | 247.75 | 0.8503 | 669.9 | 451.5 | |
| 0.00 | 2.85 | 0.00 | 2.73 | -16.17 | 97.14 | 54.61 | 246.16 | 0.8581 | 347.0 | 265.5 | |
| 0.00 | 1.60 | 0.00 | 1.50 | -15.36 | 96.49 | 53.96 | 246.82 | 0.8503 | 177.0 | 180.8 | |
| 0.00 | 0.36 | 0.00 | 0.33 | -16.71 | 96.12 | 53.59 | 245.18 | 0.8513 | 328.0 | 434.0 | |
| 1.33 | 8.36 | 1.23 | 7.67 | -15.85 | 95.62 | 53.09 | 245.94 | 0.8444 | -121.3 | 58.5 | |
| 0.36 | 2.58 | 0.31 | 2.25 | -12.78 | 94.49 | 51.96 | 249.00 | 0.8249 | 550.5 | 514.1 | |
| 0.00 | 0.27 | 0.00 | 0.23 | -13.37 | 94.61 | 52.09 | 248.37 | 0.8278 | -211.0 | -248.3 | |
| 0.00 | 7.11 | 0.00 | 6.28 | -14.13 | 94.55 | 52.02 | 247.48 | 0.8296 | 71.0 | 56.9 | |
| 0.44 | 7.65 | 0.40 | 6.93 | -16.03 | 95.16 | 52.63 | 245.57 | 0.8411 | -434.2 | -86.0 | |
| 0.00 | 1.24 | 0.00 | 1.05 | -11.21 | 93.37 | 50.85 | 250.42 | 0.8095 | -600.0 | -481.6 | |
| 0.00 | 2.13 | 0.00 | 1.91 | -15.65 | 94.66 | 52.13 | 245.79 | 0.8356 | -364.0 | -362.7 | |
| 0.00 | 1.60 | 0.00 | 1.44 | -16.13 | 94.58 | 52.05 | 245.22 | 0.8365 | -546.0 | -385.7 | |
| 11.38 | 156.15 | 9.95 | 135.52 | -14.58 | 93.99 | 51.46 | 246.74 | 0.8261 | -684.0 | -327.1 | |
| 0.00 | 1.60 | 0.00 | 1.35 | -11.98 | 93.23 | 50.70 | 249.45 | 0.8106 | -362.0 | -341.4 | |
| 0.00 | 1.07 | 0.00 | 0.90 | -12.26 | 93.10 | 50.57 | 249.09 | 0.8103 | -618.0 | -512.9 | |
| 2.31 | -22.00 | 2.04 | -22.00 | -15.39 | 94.01 | 51.48 | 245.83 | 0.8290 | -405.9 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.64 | -16.60 | 94.45 | 51.92 | 244.64 | 0.8369 | -338.0 | -311.4 | |
| 0.00 | 1.16 | 0.00 | 0.97 | -12.38 | 93.04 | 50.51 | 248.92 | 0.8100 | -523.0 | -367.3 | |
| 1.96 | -22.00 | 1.70 | -22.00 | -14.77 | 93.65 | 51.12 | 246.39 | 0.8237 | -715.7 | 999999 | |
| 4.36 | -22.00 | 3.80 | -22.00 | -15.25 | 93.61 | 51.08 | 245.82 | 0.8250 | -610.2 | 999999 | |
| 1.24 | -22.00 | 1.10 | -22.00 | -16.02 | 93.88 | 51.35 | 245.06 | 0.8300 | 359.2 | 999999 | |
| 2.13 | -22.00 | 1.87 | -22.00 | -15.49 | 93.69 | 51.16 | 245.59 | 0.8265 | -547.0 | 999999 | |
| 1.24 | 3.47 | 1.04 | 2.89 | -12.72 | 92.69 | 50.16 | 248.38 | 0.8079 | -402.1 | -434.2 | |
| 11.83 | -22.00 | 10.20 | -22.00 | -14.90 | 93.29 | 50.76 | 246.10 | 0.8209 | -957.9 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.67 | -12.90 | 92.55 | 50.02 | 248.12 | 0.8071 | -459.0 | -405.8 | |
| 0.00 | 0.80 | 0.00 | 0.67 | -13.30 | 92.42 | 49.89 | 247.59 | 0.8073 | -554.0 | -499.1 | |
| 0.00 | 1.24 | 0.00 | 1.10 | -17.13 | 93.53 | 51.00 | 243.67 | 0.8308 | -402.0 | -299.4 | |
| 0.00 | 1.16 | 0.00 | 0.97 | -13.95 | 92.22 | 49.69 | 246.75 | 0.8076 | -574.0 | -470.5 | |
| 0.00 | 1.24 | 0.00 | 1.09 | -17.42 | 92.89 | 50.36 | 243.07 | 0.8263 | -335.0 | -269.0 | |
| 0.00 | 1.07 | 0.00 | 0.92 | -16.94 | 92.32 | 49.79 | 243.36 | 0.8195 | -605.0 | -506.7 | |
| 0.00 | 0.44 | 0.00 | 0.34 | -10.43 | 88.60 | 46.07 | 249.48 | 0.7585 | -646.0 | -566.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
