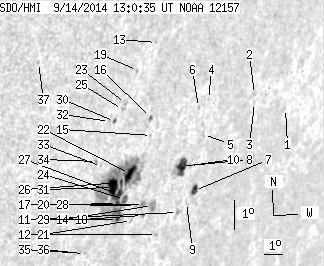

SDO HMI 2014-09-14 13:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.94 | 222.54 | 46.05 | 199.08 | -14.84 | 94.35 | 52.38 | 246.79 | 0.8349 | -243.6 | -207.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-14 13:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.80 | 0.00 | 0.88 | -13.38 | 102.32 | 60.34 | 251.08 | 0.8956 | 408.0 | 375.8 | |
| 0.00 | 1.42 | 0.00 | 1.46 | -12.69 | 100.16 | 58.18 | 251.19 | 0.8777 | 519.0 | 438.5 | |
| 0.00 | 0.80 | 0.00 | 0.82 | -12.95 | 100.26 | 58.28 | 250.93 | 0.8791 | 457.0 | 390.7 | |
| 0.00 | 0.27 | 0.00 | 0.25 | -12.56 | 97.49 | 55.51 | 250.50 | 0.8556 | -351.0 | -331.3 | |
| 0.00 | 1.78 | 0.00 | 1.71 | -13.68 | 97.60 | 55.62 | 249.28 | 0.8594 | -315.0 | -187.6 | |
| 0.00 | 1.16 | 0.00 | 1.09 | -12.76 | 97.01 | 55.03 | 250.11 | 0.8520 | -432.0 | -472.2 | |
| 4.27 | 6.22 | 4.20 | 6.12 | -15.50 | 97.80 | 55.82 | 247.33 | 0.8659 | 396.5 | 205.9 | |
| 0.00 | 1.87 | 0.00 | 1.79 | -14.63 | 97.18 | 55.20 | 248.08 | 0.8585 | 399.0 | 274.7 | |
| 0.00 | 1.16 | 0.00 | 1.13 | -15.85 | 97.50 | 55.52 | 246.84 | 0.8645 | 188.0 | 171.7 | |
| 11.20 | 17.34 | 10.63 | 16.43 | -14.61 | 96.73 | 54.75 | 247.94 | 0.8548 | 621.8 | 432.5 | |
| 0.00 | 1.87 | 0.00 | 1.81 | -16.13 | 97.11 | 55.13 | 246.39 | 0.8622 | 361.0 | 250.5 | |
| 0.00 | 1.51 | 0.00 | 1.44 | -16.75 | 96.22 | 54.24 | 245.38 | 0.8568 | 537.0 | 379.8 | |
| 0.00 | 0.89 | 0.00 | 0.76 | -10.41 | 94.16 | 52.18 | 251.84 | 0.8199 | -463.0 | -391.7 | |
| 0.00 | 7.38 | 0.00 | 6.87 | -15.75 | 95.60 | 53.62 | 246.26 | 0.8486 | 3.0 | 36.8 | |
| 0.00 | 0.44 | 0.00 | 0.40 | -13.41 | 94.73 | 52.76 | 248.58 | 0.8340 | -424.0 | -327.2 | |
| 0.71 | 2.22 | 0.63 | 1.96 | -12.81 | 94.50 | 52.52 | 249.17 | 0.8301 | 599.9 | 534.2 | |
| 0.00 | 2.67 | 0.00 | 2.45 | -15.66 | 95.09 | 53.12 | 246.16 | 0.8441 | 218.0 | 173.4 | |
| 0.00 | 1.78 | 0.00 | 1.64 | -16.02 | 95.18 | 53.20 | 245.79 | 0.8459 | -462.0 | -351.2 | |
| 0.00 | 0.89 | 0.00 | 0.76 | -11.21 | 93.41 | 51.43 | 250.64 | 0.8151 | -564.0 | -477.5 | |
| 0.00 | 1.78 | 0.00 | 1.62 | -15.65 | 94.67 | 52.69 | 246.02 | 0.8404 | -412.0 | -369.4 | |
| 0.00 | 1.33 | 0.00 | 1.22 | -16.13 | 94.64 | 52.67 | 245.46 | 0.8417 | -390.0 | -387.9 | |
| 9.42 | 156.83 | 8.35 | 137.90 | -14.54 | 93.98 | 52.00 | 246.99 | 0.8308 | -696.9 | -299.4 | |
| 0.00 | 1.51 | 0.00 | 1.29 | -12.22 | 93.08 | 51.10 | 249.33 | 0.8151 | -564.0 | -468.8 | |
| 2.58 | -22.00 | 2.30 | -22.00 | -15.38 | 94.01 | 52.03 | 246.05 | 0.8338 | -360.7 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.91 | -12.40 | 92.98 | 51.00 | 249.08 | 0.8147 | -433.0 | -365.2 | |
| 1.87 | -22.00 | 1.64 | -22.00 | -14.80 | 93.65 | 51.68 | 246.58 | 0.8288 | -661.2 | 999999 | |
| 5.16 | -22.00 | 4.55 | -22.00 | -15.18 | 93.63 | 51.66 | 246.13 | 0.8298 | -598.6 | 999999 | |
| 1.33 | -22.00 | 1.18 | -22.00 | -15.48 | 93.69 | 51.71 | 245.82 | 0.8313 | -586.6 | 999999 | |
| 1.07 | -22.00 | 0.95 | -22.00 | -16.02 | 93.88 | 51.90 | 245.29 | 0.8348 | 314.2 | 999999 | |
| 0.71 | 1.60 | 0.60 | 1.36 | -12.75 | 92.68 | 50.70 | 248.56 | 0.8131 | -387.5 | -297.6 | |
| 12.62 | -22.00 | 11.02 | -22.00 | -14.92 | 93.24 | 51.26 | 246.28 | 0.8255 | -953.0 | 999999 | |
| 0.00 | 1.33 | 0.00 | 1.12 | -12.72 | 92.43 | 50.45 | 248.49 | 0.8106 | -331.0 | -323.2 | |
| 0.00 | 0.80 | 0.00 | 0.68 | -14.16 | 92.45 | 50.47 | 246.83 | 0.8157 | -582.0 | -486.8 | |
| 0.00 | 1.24 | 0.00 | 1.05 | -13.97 | 92.15 | 50.17 | 246.93 | 0.8122 | -435.0 | -454.4 | |
| 0.00 | 0.80 | 0.00 | 0.70 | -16.99 | 92.57 | 50.59 | 243.65 | 0.8268 | -461.0 | -427.0 | |
| 0.00 | 0.89 | 0.00 | 0.78 | -16.97 | 92.42 | 50.44 | 243.60 | 0.8253 | -550.0 | -520.7 | |
| 0.00 | 0.89 | 0.00 | 0.68 | -10.48 | 88.59 | 46.61 | 249.64 | 0.7644 | -541.0 | -457.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
