SDO HMI 2014-09-14 13:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 103.75 | 486.24 | 74.03 | 346.10 | 15.33 | 88.16 | 46.18 | 284.40 | 0.7208 | 442.4 | 262.9 | |
|
previous
or next observation for the same group /

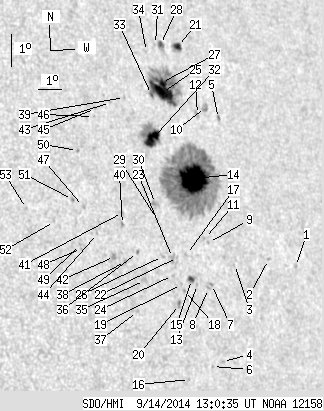

back to the solar disc SDO HMI 2014-09-14 13:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.51 | 0.00 | 1.17 | 11.79 | 92.55 | 50.57 | 279.36 | 0.7686 | -451.0 | -368.3 | |
| 0.00 | 1.16 | 0.00 | 0.87 | 12.12 | 91.33 | 49.35 | 279.82 | 0.7552 | -526.0 | -476.8 | |
| 0.00 | 0.36 | 0.00 | 0.26 | 12.11 | 89.74 | 47.76 | 279.86 | 0.7370 | -490.0 | -457.8 | |
| 0.00 | 1.24 | 0.00 | 0.89 | 9.26 | 88.61 | 46.63 | 275.94 | 0.7236 | -465.0 | -421.1 | |
| 0.00 | 1.96 | 0.00 | 1.45 | 16.55 | 90.27 | 48.29 | 285.82 | 0.7460 | 350.0 | 327.0 | |
| 0.00 | 0.89 | 0.00 | 0.63 | 9.15 | 88.14 | 46.16 | 275.78 | 0.7181 | -368.0 | -347.0 | |
| 0.00 | 1.51 | 0.00 | 1.08 | 11.61 | 88.58 | 46.60 | 279.20 | 0.7233 | -531.0 | -439.4 | |
| 0.00 | 1.24 | 0.00 | 0.89 | 11.50 | 88.42 | 46.44 | 279.05 | 0.7214 | -445.0 | -428.1 | |
| 0.00 | 0.98 | 0.00 | 0.70 | 12.88 | 88.74 | 46.76 | 280.95 | 0.7256 | -174.0 | -61.9 | |
| 0.00 | 4.18 | 0.00 | 3.07 | 16.94 | 89.78 | 47.80 | 286.39 | 0.7410 | 559.0 | 488.2 | |
| 0.00 | 1.24 | 0.00 | 0.89 | 13.01 | 88.59 | 46.61 | 281.14 | 0.7240 | -259.0 | -180.1 | |
| 0.00 | 2.49 | 0.00 | 1.81 | 16.76 | 89.35 | 47.37 | 286.21 | 0.7359 | 511.0 | 377.1 | |
| 0.00 | 0.89 | 0.00 | 0.63 | 11.66 | 87.96 | 45.98 | 279.29 | 0.7160 | -458.0 | -368.4 | |
| 46.77 | 287.35 | 33.52 | 205.50 | 14.85 | 88.58 | 46.60 | 283.69 | 0.7251 | 1151.2 | 405.1 | |
| 2.31 | 4.09 | 1.63 | 2.88 | 11.84 | 87.73 | 45.75 | 279.54 | 0.7133 | -811.6 | -619.4 | |
| 0.00 | 0.80 | 0.00 | 0.56 | 8.85 | 87.08 | 45.11 | 275.32 | 0.7053 | -640.0 | -528.9 | |
| 0.00 | 1.33 | 0.00 | 0.94 | 12.60 | 87.68 | 45.70 | 280.63 | 0.7130 | -392.0 | -301.3 | |
| 0.00 | 0.98 | 0.00 | 0.68 | 11.53 | 87.36 | 45.38 | 279.13 | 0.7087 | -600.0 | -509.5 | |
| 0.00 | 0.89 | 0.00 | 0.62 | 11.72 | 87.27 | 45.29 | 279.40 | 0.7076 | -576.0 | -546.9 | |
| 0.00 | 2.93 | 0.00 | 2.04 | 11.13 | 87.06 | 45.08 | 278.57 | 0.7049 | -703.0 | -636.6 | |
| 3.73 | 5.07 | 2.73 | 3.70 | 18.89 | 89.16 | 47.18 | 289.12 | 0.7368 | -565.2 | -454.4 | |
| 0.00 | 1.24 | 0.00 | 0.87 | 12.55 | 87.27 | 45.29 | 280.57 | 0.7080 | -389.0 | -317.6 | |
| 0.00 | 4.18 | 0.00 | 2.91 | 12.57 | 87.06 | 45.08 | 280.61 | 0.7054 | -562.0 | -482.5 | |
| 0.00 | 1.07 | 0.00 | 0.74 | 12.03 | 86.94 | 44.96 | 279.85 | 0.7037 | -506.0 | -419.0 | |
| 25.52 | 83.13 | 18.20 | 59.47 | 17.57 | 88.00 | 46.02 | 287.51 | 0.7216 | 824.9 | 137.0 | |
| 0.00 | 1.69 | 0.00 | 1.17 | 12.64 | 86.63 | 44.66 | 280.73 | 0.7003 | -615.0 | -502.1 | |
| 7.02 | -25.00 | 5.02 | -25.00 | 17.87 | 88.05 | 46.07 | 287.92 | 0.7227 | 698.3 | 999999 | |
| 1.69 | 5.42 | 1.22 | 3.91 | 19.02 | 88.41 | 46.43 | 289.44 | 0.7287 | 635.7 | 487.1 | |
| 0.00 | 0.71 | 0.00 | 0.49 | 13.76 | 86.68 | 44.70 | 282.34 | 0.7017 | 242.0 | 303.1 | |
| 0.00 | 3.47 | 0.00 | 2.41 | 14.25 | 86.71 | 44.74 | 283.03 | 0.7025 | 354.0 | 385.5 | |
| 0.00 | 1.96 | 0.00 | 1.40 | 19.04 | 88.19 | 46.21 | 289.51 | 0.7262 | 466.0 | 374.9 | |
| 16.00 | 34.94 | 11.21 | 24.46 | 16.22 | 87.12 | 45.14 | 285.77 | 0.7096 | 861.3 | 461.0 | |
| 0.71 | -25.00 | 0.50 | -25.00 | 17.55 | 87.49 | 45.51 | 287.57 | 0.7158 | 689.9 | 999999 | |
| 0.00 | 0.53 | 0.00 | 0.38 | 18.87 | 87.71 | 45.73 | 289.35 | 0.7205 | 679.0 | 594.2 | |
| 0.00 | 3.20 | 0.00 | 2.18 | 11.98 | 85.72 | 43.74 | 279.84 | 0.6887 | -489.0 | -396.1 | |
| 0.00 | 1.33 | 0.00 | 0.91 | 12.85 | 85.60 | 43.62 | 281.11 | 0.6878 | -683.0 | -588.9 | |
| 0.00 | 1.16 | 0.00 | 0.78 | 11.08 | 85.24 | 43.26 | 278.54 | 0.6824 | -536.0 | -436.1 | |
| 0.00 | 1.60 | 0.00 | 1.08 | 12.62 | 85.04 | 43.06 | 280.82 | 0.6806 | -715.0 | -581.8 | |
| 0.00 | 0.89 | 0.00 | 0.62 | 17.56 | 86.28 | 44.30 | 287.80 | 0.7017 | 603.0 | 514.2 | |
| 0.00 | 1.60 | 0.00 | 1.08 | 13.74 | 85.16 | 43.18 | 282.46 | 0.6831 | -494.0 | -403.2 | |
| 0.00 | 0.71 | 0.00 | 0.48 | 14.10 | 85.24 | 43.27 | 282.98 | 0.6845 | -276.0 | -168.2 | |
| 0.00 | 2.67 | 0.00 | 1.79 | 12.81 | 84.61 | 42.63 | 281.14 | 0.6754 | -737.0 | -689.5 | |
| 0.00 | 0.80 | 0.00 | 0.55 | 17.46 | 85.63 | 43.65 | 287.78 | 0.6938 | 529.0 | 379.0 | |
| 0.00 | 0.80 | 0.00 | 0.53 | 13.56 | 84.06 | 42.08 | 282.31 | 0.6691 | -510.0 | -400.2 | |
| 0.00 | 0.98 | 0.00 | 0.66 | 17.33 | 84.94 | 42.96 | 287.73 | 0.6853 | 610.0 | 536.4 | |
| 0.00 | 0.89 | 0.00 | 0.60 | 17.10 | 84.79 | 42.81 | 287.42 | 0.6830 | 602.0 | 544.0 | |
| 0.00 | 1.51 | 0.00 | 1.00 | 14.42 | 83.67 | 41.69 | 283.64 | 0.6651 | -467.0 | -354.8 | |
| 0.00 | 0.71 | 0.00 | 0.47 | 13.16 | 83.31 | 41.33 | 281.79 | 0.6592 | -771.0 | -653.8 | |
| 0.00 | 1.07 | 0.00 | 0.70 | 13.29 | 83.29 | 41.31 | 281.98 | 0.6591 | -669.0 | -590.4 | |
| 0.00 | 1.33 | 0.00 | 0.89 | 16.13 | 83.84 | 41.86 | 286.17 | 0.6697 | -340.0 | -396.8 | |
| 0.00 | 1.69 | 0.00 | 1.11 | 14.67 | 83.27 | 41.29 | 284.08 | 0.6604 | -611.0 | -474.7 | |
| 0.00 | 0.71 | 0.00 | 0.46 | 14.06 | 82.39 | 40.41 | 283.28 | 0.6484 | -747.0 | -567.6 | |
| 0.00 | 1.16 | 0.00 | 0.74 | 14.54 | 81.35 | 39.37 | 284.20 | 0.6357 | -665.0 | -535.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
