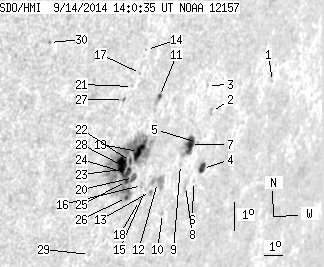

SDO HMI 2014-09-14 14:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.84 | 222.14 | 43.01 | 201.60 | -14.92 | 94.37 | 52.94 | 246.92 | 0.8401 | -222.4 | -184.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-14 14:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.44 | 0.00 | 0.48 | -13.06 | 100.95 | 59.53 | 251.18 | 0.8889 | 443.0 | 392.0 | |
| 0.00 | 2.40 | 0.00 | 2.34 | -13.65 | 97.59 | 56.17 | 249.49 | 0.8638 | -243.0 | -114.3 | |
| 0.00 | 0.80 | 0.00 | 0.76 | -12.76 | 97.06 | 55.64 | 250.31 | 0.8571 | -546.0 | -478.2 | |
| 4.53 | 6.58 | 4.53 | 6.56 | -15.50 | 97.81 | 56.38 | 247.53 | 0.8704 | 437.5 | 262.3 | |
| 0.00 | 1.60 | 0.00 | 1.56 | -14.59 | 97.16 | 55.74 | 248.30 | 0.8628 | 352.0 | 282.5 | |
| 0.00 | 0.98 | 0.00 | 0.97 | -15.88 | 97.46 | 56.03 | 246.99 | 0.8687 | 198.0 | 180.2 | |
| 9.87 | 17.16 | 9.50 | 16.50 | -14.61 | 96.78 | 55.36 | 248.15 | 0.8598 | 614.6 | 408.2 | |
| 0.00 | 3.91 | 0.00 | 3.85 | -16.00 | 97.06 | 55.63 | 246.72 | 0.8658 | 391.0 | 190.5 | |
| 0.00 | 1.33 | 0.00 | 1.28 | -15.22 | 96.47 | 55.04 | 247.36 | 0.8589 | 209.0 | 188.0 | |
| 0.00 | 1.42 | 0.00 | 1.37 | -16.77 | 96.11 | 54.68 | 245.53 | 0.8605 | 530.0 | 383.9 | |
| 1.24 | 4.53 | 1.12 | 4.06 | -12.84 | 94.52 | 53.09 | 249.35 | 0.8353 | 581.2 | 522.2 | |
| 0.00 | 13.42 | 0.00 | 12.60 | -15.69 | 95.40 | 53.97 | 246.46 | 0.8514 | 60.0 | 117.1 | |
| 0.36 | 2.04 | 0.33 | 1.91 | -15.95 | 95.13 | 53.70 | 246.06 | 0.8499 | -413.5 | -316.7 | |
| 0.00 | 0.53 | 0.00 | 0.46 | -11.24 | 93.41 | 51.98 | 250.80 | 0.8204 | -619.0 | -527.2 | |
| 0.00 | 0.80 | 0.00 | 0.74 | -15.85 | 94.83 | 53.40 | 246.06 | 0.8471 | -345.0 | -318.3 | |
| 0.00 | 2.49 | 0.00 | 2.29 | -15.70 | 94.55 | 53.13 | 246.13 | 0.8443 | -427.0 | -372.8 | |
| 0.00 | 0.98 | 0.00 | 0.85 | -11.99 | 93.31 | 51.88 | 249.89 | 0.8217 | -474.0 | -401.3 | |
| 0.00 | 1.07 | 0.00 | 0.99 | -16.19 | 94.64 | 53.21 | 245.61 | 0.8465 | -388.0 | -343.8 | |
| 8.71 | 155.30 | 7.82 | 138.34 | -14.54 | 93.99 | 52.56 | 247.21 | 0.8357 | -673.9 | -300.8 | |
| 2.93 | -19.00 | 2.65 | -19.00 | -15.38 | 94.02 | 52.59 | 246.28 | 0.8387 | -343.4 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.84 | -12.37 | 93.01 | 51.58 | 249.34 | 0.8201 | -549.0 | -434.1 | |
| 1.42 | -19.00 | 1.27 | -19.00 | -14.83 | 93.67 | 52.24 | 246.76 | 0.8339 | -656.7 | 999999 | |
| 0.98 | -19.00 | 0.87 | -19.00 | -15.06 | 93.70 | 52.27 | 246.52 | 0.8349 | -532.2 | 999999 | |
| 1.07 | -19.00 | 0.95 | -19.00 | -15.21 | 93.65 | 52.22 | 246.32 | 0.8350 | -550.2 | 999999 | |
| 1.60 | -19.00 | 1.44 | -19.00 | -15.48 | 93.69 | 52.27 | 246.04 | 0.8362 | -523.1 | 999999 | |
| 1.33 | -19.00 | 1.21 | -19.00 | -16.01 | 93.89 | 52.46 | 245.51 | 0.8396 | 355.6 | 999999 | |
| 0.00 | 1.24 | 0.00 | 1.07 | -12.74 | 92.67 | 51.24 | 248.77 | 0.8181 | -564.0 | -483.8 | |
| 12.80 | -19.00 | 11.32 | -19.00 | -14.91 | 93.24 | 51.81 | 246.50 | 0.8304 | -935.5 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.95 | -17.74 | 92.66 | 51.24 | 243.08 | 0.8350 | -286.0 | -221.3 | |
| 0.00 | 1.07 | 0.00 | 0.83 | -10.54 | 88.63 | 47.20 | 249.81 | 0.7709 | -542.0 | -509.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
