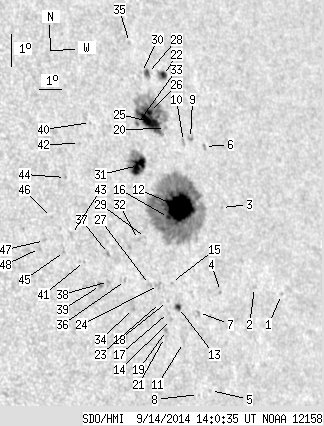

SDO HMI 2014-09-14 14:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 87.65 | 464.61 | 63.17 | 334.23 | 15.42 | 88.22 | 46.79 | 284.45 | 0.7280 | 468.8 | 298.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-14 14:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.69 | 11.78 | 92.59 | 51.16 | 279.36 | 0.7750 | -471.0 | -416.8 | |
| 0.00 | 1.42 | 0.00 | 1.08 | 12.12 | 91.36 | 49.93 | 279.81 | 0.7616 | -612.0 | -479.9 | |
| 0.00 | 1.07 | 0.00 | 0.80 | 14.65 | 90.49 | 49.06 | 283.21 | 0.7530 | 520.0 | 462.7 | |
| 0.00 | 1.24 | 0.00 | 0.92 | 12.15 | 89.75 | 48.32 | 279.89 | 0.7435 | -295.0 | -238.1 | |
| 0.00 | 0.71 | 0.00 | 0.51 | 9.23 | 88.68 | 47.25 | 275.92 | 0.7310 | -495.0 | -411.9 | |
| 0.00 | 2.22 | 0.00 | 1.66 | 16.56 | 90.29 | 48.86 | 285.75 | 0.7524 | 472.0 | 295.9 | |
| 0.00 | 1.60 | 0.00 | 1.16 | 11.61 | 88.61 | 47.19 | 279.19 | 0.7302 | -507.0 | -428.6 | |
| 0.00 | 0.71 | 0.00 | 0.51 | 9.16 | 88.13 | 46.70 | 275.80 | 0.7245 | -270.0 | -331.8 | |
| 0.00 | 2.76 | 0.00 | 2.04 | 16.86 | 89.72 | 48.30 | 286.22 | 0.7464 | 569.0 | 420.8 | |
| 0.00 | 2.58 | 0.00 | 1.90 | 16.80 | 89.37 | 47.94 | 286.18 | 0.7424 | 489.0 | 368.6 | |
| 0.00 | 0.89 | 0.00 | 0.63 | 10.77 | 87.76 | 46.33 | 278.04 | 0.7200 | -511.0 | -465.7 | |
| 45.87 | 275.57 | 33.22 | 198.97 | 14.83 | 88.61 | 47.19 | 283.60 | 0.7319 | 1130.1 | 424.0 | |
| 2.22 | 3.64 | 1.58 | 2.59 | 11.84 | 87.76 | 46.33 | 279.53 | 0.7202 | -777.6 | -624.0 | |
| 0.00 | 1.24 | 0.00 | 0.88 | 11.51 | 87.38 | 45.95 | 279.08 | 0.7155 | -573.0 | -481.5 | |
| 0.00 | 0.53 | 0.00 | 0.38 | 12.62 | 87.63 | 46.20 | 280.62 | 0.7189 | -290.0 | -250.5 | |
| 0.27 | -12.00 | 0.19 | -12.00 | 14.58 | 87.99 | 46.57 | 283.31 | 0.7245 | 1398.3 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.82 | 11.73 | 87.29 | 45.86 | 279.39 | 0.7145 | -616.0 | -534.6 | |
| 0.00 | 0.98 | 0.00 | 0.69 | 12.06 | 87.32 | 45.89 | 279.86 | 0.7150 | -580.0 | -456.7 | |
| 0.00 | 1.42 | 0.00 | 1.00 | 11.20 | 87.09 | 45.66 | 278.65 | 0.7120 | -722.0 | -640.9 | |
| 0.00 | 1.69 | 0.00 | 1.23 | 17.26 | 88.68 | 47.25 | 286.91 | 0.7353 | -92.0 | -74.3 | |
| 0.00 | 0.80 | 0.00 | 0.56 | 11.00 | 86.96 | 45.53 | 278.37 | 0.7104 | -384.0 | -396.3 | |
| 3.64 | 7.47 | 2.69 | 5.50 | 18.87 | 89.17 | 47.74 | 289.00 | 0.7429 | -570.0 | -284.8 | |
| 0.00 | 0.36 | 0.00 | 0.25 | 12.06 | 87.01 | 45.58 | 279.87 | 0.7113 | -574.0 | -592.8 | |
| 0.00 | 4.09 | 0.00 | 2.87 | 12.58 | 87.04 | 45.61 | 280.59 | 0.7118 | -552.0 | -488.0 | |
| 15.02 | 85.16 | 10.82 | 61.50 | 17.54 | 88.03 | 46.60 | 287.38 | 0.7283 | 892.3 | 258.1 | |
| 2.58 | -25.00 | 1.86 | -25.00 | 17.81 | 88.12 | 46.70 | 287.73 | 0.7297 | 747.3 | 999999 | |
| 0.00 | 2.04 | 0.00 | 1.43 | 12.64 | 86.65 | 45.23 | 280.71 | 0.7073 | -576.0 | -522.0 | |
| 1.87 | 5.24 | 1.36 | 3.82 | 19.00 | 88.46 | 47.03 | 289.29 | 0.7353 | 608.0 | 464.7 | |
| 0.00 | 0.62 | 0.00 | 0.44 | 14.07 | 86.82 | 45.39 | 282.71 | 0.7103 | 487.0 | 438.6 | |
| 0.00 | 1.33 | 0.00 | 0.97 | 19.05 | 88.20 | 46.77 | 289.41 | 0.7325 | 558.0 | 389.2 | |
| 15.38 | 34.31 | 10.88 | 24.25 | 16.26 | 87.12 | 45.69 | 285.74 | 0.7161 | 854.1 | 492.2 | |
| 0.00 | 1.51 | 0.00 | 1.05 | 14.03 | 86.50 | 45.08 | 282.69 | 0.7064 | 396.0 | 372.2 | |
| 0.80 | -25.00 | 0.57 | -25.00 | 17.53 | 87.48 | 46.05 | 287.45 | 0.7219 | 676.4 | 999999 | |
| 0.00 | 2.04 | 0.00 | 1.41 | 11.98 | 85.81 | 44.38 | 279.81 | 0.6967 | -610.0 | -525.4 | |
| 0.00 | 1.33 | 0.00 | 0.97 | 20.01 | 88.00 | 46.57 | 290.75 | 0.7320 | 606.0 | 496.9 | |
| 0.00 | 1.60 | 0.00 | 1.10 | 12.85 | 85.65 | 44.22 | 281.07 | 0.6952 | -718.0 | -553.3 | |
| 0.00 | 1.69 | 0.00 | 1.15 | 13.72 | 85.12 | 43.69 | 282.38 | 0.6893 | -461.0 | -427.3 | |
| 0.00 | 1.24 | 0.00 | 0.84 | 12.88 | 84.93 | 43.50 | 281.17 | 0.6863 | -753.0 | -564.3 | |
| 0.00 | 2.58 | 0.00 | 1.74 | 12.79 | 84.57 | 43.14 | 281.07 | 0.6817 | -766.0 | -634.0 | |
| 0.00 | 0.53 | 0.00 | 0.37 | 17.74 | 85.43 | 44.00 | 288.10 | 0.6985 | 593.0 | 531.2 | |
| 0.00 | 0.80 | 0.00 | 0.54 | 13.57 | 84.06 | 42.63 | 282.26 | 0.6760 | -430.0 | -343.1 | |
| 0.00 | 0.71 | 0.00 | 0.48 | 17.14 | 84.77 | 43.34 | 287.38 | 0.6895 | 674.0 | 585.9 | |
| 0.00 | 1.42 | 0.00 | 0.95 | 14.43 | 83.71 | 42.28 | 283.58 | 0.6726 | -483.0 | -349.7 | |
| 0.00 | 0.89 | 0.00 | 0.60 | 16.16 | 83.89 | 42.46 | 286.12 | 0.6772 | -429.0 | -361.9 | |
| 0.00 | 0.71 | 0.00 | 0.47 | 13.94 | 83.30 | 41.87 | 282.90 | 0.6669 | -672.0 | -553.4 | |
| 0.00 | 0.62 | 0.00 | 0.41 | 15.01 | 83.00 | 41.58 | 284.54 | 0.6645 | -445.0 | -362.3 | |
| 0.00 | 1.60 | 0.00 | 1.05 | 14.34 | 82.56 | 41.13 | 283.60 | 0.6579 | -516.0 | -405.5 | |
| 0.00 | 1.60 | 0.00 | 1.05 | 14.11 | 82.30 | 40.87 | 283.30 | 0.6544 | -585.0 | -568.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
