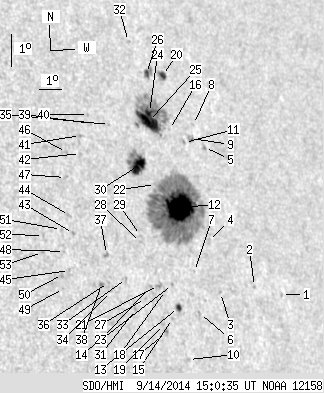

SDO HMI 2014-09-14 15:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 98.66 | 466.09 | 71.79 | 338.25 | 15.44 | 88.14 | 47.27 | 284.43 | 0.7335 | 471.4 | 278.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-14 15:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.07 | 0.00 | 0.84 | 11.79 | 92.63 | 51.75 | 279.36 | 0.7814 | -472.0 | -406.4 | |
| 0.00 | 1.07 | 0.00 | 0.82 | 12.15 | 91.39 | 50.52 | 279.84 | 0.7681 | -608.0 | -523.8 | |
| 0.00 | 0.71 | 0.00 | 0.53 | 12.13 | 89.76 | 48.88 | 279.84 | 0.7498 | -331.0 | -259.6 | |
| 0.00 | 2.84 | 0.00 | 2.12 | 13.70 | 89.61 | 48.73 | 281.96 | 0.7487 | 341.0 | 335.5 | |
| 0.00 | 2.40 | 0.00 | 1.82 | 16.53 | 90.31 | 49.43 | 285.66 | 0.7586 | 524.0 | 295.6 | |
| 0.00 | 1.69 | 0.00 | 1.23 | 11.59 | 88.65 | 47.77 | 279.14 | 0.7370 | -480.0 | -422.7 | |
| 0.00 | 0.71 | 0.00 | 0.52 | 12.86 | 88.73 | 47.85 | 280.87 | 0.7383 | -196.0 | -112.4 | |
| 0.00 | 0.80 | 0.00 | 0.60 | 17.27 | 90.04 | 49.16 | 286.67 | 0.7564 | 391.0 | 291.0 | |
| 0.00 | 4.53 | 0.00 | 3.40 | 16.87 | 89.75 | 48.87 | 286.16 | 0.7528 | 551.0 | 421.1 | |
| 0.00 | 2.13 | 0.00 | 1.54 | 10.26 | 87.87 | 46.99 | 277.32 | 0.7278 | -430.0 | -283.2 | |
| 0.00 | 1.78 | 0.00 | 1.32 | 16.77 | 89.43 | 48.55 | 286.08 | 0.7491 | 546.0 | 413.0 | |
| 47.73 | 271.35 | 34.91 | 197.86 | 14.84 | 88.57 | 47.70 | 283.57 | 0.7378 | 1145.2 | 422.9 | |
| 2.49 | 3.73 | 1.79 | 2.68 | 11.85 | 87.75 | 46.87 | 279.53 | 0.7266 | -720.6 | -536.1 | |
| 0.00 | 0.89 | 0.00 | 0.64 | 12.56 | 87.65 | 46.77 | 280.51 | 0.7256 | -438.0 | -336.9 | |
| 0.00 | 0.89 | 0.00 | 0.63 | 11.55 | 87.41 | 46.54 | 279.11 | 0.7225 | -600.0 | -521.1 | |
| 0.00 | 0.98 | 0.00 | 0.72 | 17.23 | 88.87 | 47.99 | 286.75 | 0.7435 | 160.0 | 95.8 | |
| 0.00 | 2.49 | 0.00 | 1.77 | 11.15 | 87.06 | 46.18 | 278.57 | 0.7182 | -718.0 | -626.8 | |
| 0.00 | 0.80 | 0.00 | 0.57 | 12.41 | 87.29 | 46.42 | 280.32 | 0.7214 | -412.0 | -347.9 | |
| 0.00 | 1.16 | 0.00 | 0.82 | 11.40 | 86.98 | 46.10 | 278.92 | 0.7173 | -643.0 | -520.5 | |
| 3.29 | 6.84 | 2.45 | 5.09 | 18.88 | 89.14 | 48.27 | 288.93 | 0.7488 | -548.3 | -322.2 | |
| 0.00 | 2.84 | 0.00 | 2.02 | 12.59 | 87.02 | 46.14 | 280.58 | 0.7182 | -577.0 | -455.1 | |
| 0.00 | 1.16 | 0.00 | 0.83 | 15.63 | 87.70 | 46.82 | 284.73 | 0.7285 | 283.0 | 258.0 | |
| 0.00 | 1.24 | 0.00 | 0.88 | 12.59 | 86.66 | 45.79 | 280.60 | 0.7140 | -611.0 | -532.6 | |
| 5.24 | 81.15 | 3.82 | 59.20 | 17.82 | 88.13 | 47.26 | 287.66 | 0.7361 | 650.6 | 164.3 | |
| 20.98 | -24.00 | 15.25 | -24.00 | 17.55 | 87.99 | 47.12 | 287.32 | 0.7341 | 859.7 | 999999 | |
| 2.31 | 7.64 | 1.70 | 5.63 | 19.01 | 88.43 | 47.55 | 289.22 | 0.7411 | 568.2 | 263.7 | |
| 0.00 | 1.07 | 0.00 | 0.75 | 12.25 | 86.36 | 45.49 | 280.14 | 0.7102 | -536.0 | -495.8 | |
| 0.00 | 0.89 | 0.00 | 0.63 | 13.95 | 86.55 | 45.67 | 282.52 | 0.7135 | 360.0 | 337.6 | |
| 0.00 | 1.07 | 0.00 | 0.75 | 14.16 | 86.60 | 45.73 | 282.81 | 0.7143 | 354.0 | 359.9 | |
| 16.62 | 31.91 | 11.87 | 22.76 | 16.27 | 87.12 | 46.24 | 285.69 | 0.7224 | 853.1 | 488.1 | |
| 0.00 | 1.16 | 0.00 | 0.80 | 11.96 | 85.86 | 44.98 | 279.75 | 0.7040 | -671.0 | -586.4 | |
| 0.00 | 1.16 | 0.00 | 0.85 | 20.05 | 87.98 | 47.10 | 290.70 | 0.7380 | 587.0 | 522.8 | |
| 0.00 | 1.24 | 0.00 | 0.86 | 12.92 | 85.68 | 44.80 | 281.13 | 0.7023 | -551.0 | -502.6 | |
| 0.00 | 0.80 | 0.00 | 0.55 | 12.59 | 84.95 | 44.08 | 280.70 | 0.6932 | -660.0 | -579.0 | |
| 0.00 | 0.62 | 0.00 | 0.44 | 17.62 | 86.23 | 45.35 | 287.69 | 0.7140 | 621.0 | 545.6 | |
| 0.00 | 0.80 | 0.00 | 0.55 | 12.87 | 84.89 | 44.01 | 281.11 | 0.6926 | -702.0 | -626.8 | |
| 0.00 | 2.31 | 0.00 | 1.59 | 13.72 | 85.00 | 44.12 | 282.33 | 0.6946 | -564.0 | -517.6 | |
| 0.00 | 2.22 | 0.00 | 1.51 | 12.84 | 84.58 | 43.70 | 281.09 | 0.6888 | -810.0 | -680.1 | |
| 0.00 | 0.62 | 0.00 | 0.43 | 17.72 | 85.45 | 44.57 | 287.97 | 0.7051 | 729.0 | 562.0 | |
| 0.00 | 0.80 | 0.00 | 0.56 | 18.00 | 85.41 | 44.53 | 288.38 | 0.7051 | 550.0 | 440.6 | |
| 0.00 | 1.42 | 0.00 | 0.98 | 17.40 | 84.86 | 43.98 | 287.62 | 0.6976 | 627.0 | 461.7 | |
| 0.00 | 1.33 | 0.00 | 0.92 | 16.85 | 84.70 | 43.82 | 286.88 | 0.6948 | 655.0 | 474.9 | |
| 0.00 | 1.42 | 0.00 | 0.96 | 14.47 | 83.76 | 42.88 | 283.56 | 0.6801 | -464.0 | -359.5 | |
| 0.00 | 2.13 | 0.00 | 1.44 | 15.02 | 83.72 | 42.85 | 284.38 | 0.6803 | -495.0 | -305.9 | |
| 0.00 | 1.42 | 0.00 | 0.95 | 13.37 | 83.33 | 42.46 | 281.98 | 0.6737 | -588.0 | -528.5 | |
| 0.00 | 1.42 | 0.00 | 0.97 | 16.93 | 84.11 | 43.23 | 287.10 | 0.6879 | 649.0 | 515.2 | |
| 0.00 | 1.78 | 0.00 | 1.20 | 16.18 | 83.86 | 42.98 | 286.05 | 0.6836 | -91.0 | -210.9 | |
| 0.00 | 0.53 | 0.00 | 0.36 | 13.96 | 83.26 | 42.38 | 282.87 | 0.6733 | -694.0 | -616.2 | |
| 0.00 | 0.27 | 0.00 | 0.18 | 12.85 | 82.97 | 42.09 | 281.24 | 0.6687 | -685.0 | -621.0 | |
| 0.00 | 1.87 | 0.00 | 1.24 | 13.27 | 83.02 | 42.14 | 281.87 | 0.6696 | -639.0 | -587.1 | |
| 0.00 | 0.98 | 0.00 | 0.65 | 14.63 | 83.29 | 42.41 | 283.86 | 0.6744 | -526.0 | -441.6 | |
| 0.00 | 0.89 | 0.00 | 0.59 | 14.51 | 82.50 | 41.62 | 283.79 | 0.6644 | -554.0 | -499.1 | |
| 0.00 | 1.07 | 0.00 | 0.70 | 14.00 | 82.34 | 41.47 | 283.05 | 0.6618 | -692.0 | -590.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
