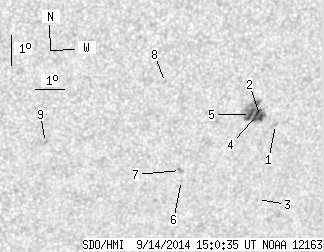

SDO HMI 2014-09-14 15:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.35 | 43.39 | 7.36 | 25.73 | -15.58 | 65.56 | 24.68 | 226.86 | 0.5532 | 709.5 | 602.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-14 15:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.87 | 0.00 | 1.12 | -15.72 | 66.82 | 25.94 | 228.14 | 0.5675 | 744.0 | 547.0 | |
| 2.84 | 34.31 | 1.70 | 20.39 | -15.42 | 66.26 | 25.38 | 227.92 | 0.5588 | 808.5 | 703.3 | |
| 0.00 | 0.98 | 0.00 | 0.60 | -18.17 | 66.55 | 25.67 | 224.64 | 0.5880 | 713.0 | 568.8 | |
| 4.89 | -2.00 | 2.91 | -2.00 | -15.38 | 66.11 | 25.24 | 227.82 | 0.5569 | 926.6 | 999999 | |
| 4.62 | -2.00 | 2.75 | -2.00 | -15.34 | 65.90 | 25.02 | 227.64 | 0.5542 | 1015.0 | 999999 | |
| 0.00 | 0.36 | 0.00 | 0.21 | -17.39 | 63.79 | 22.91 | 222.41 | 0.5530 | 467.0 | 574.8 | |
| 0.00 | 2.93 | 0.00 | 1.74 | -17.05 | 63.71 | 22.84 | 222.75 | 0.5487 | 817.0 | 688.4 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -14.14 | 62.87 | 21.99 | 225.65 | 0.5099 | 620.0 | 513.0 | |
| 0.00 | 1.96 | 0.00 | 1.11 | -15.91 | 59.05 | 18.17 | 217.81 | 0.4912 | -745.0 | -597.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
