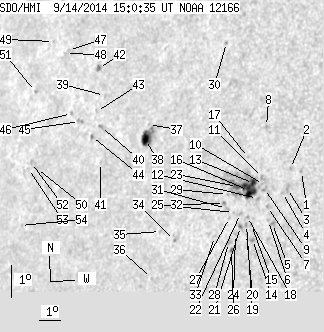

SDO HMI 2014-09-14 15:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.35 | 150.28 | 20.78 | 111.41 | 12.55 | 352.54 | -48.34 | 79.58 | 0.7423 | -283.5 | -111.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-14 15:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.07 | 0.00 | 0.73 | 13.06 | 356.88 | -44.00 | 78.61 | 0.6926 | -683.0 | -616.1 | |
| 0.00 | 1.24 | 0.00 | 0.86 | 13.11 | 356.39 | -44.49 | 78.58 | 0.6986 | -680.0 | -517.1 | |
| 0.00 | 2.84 | 0.00 | 1.96 | 12.50 | 356.39 | -44.48 | 79.45 | 0.6982 | -799.0 | -682.0 | |
| 0.00 | 1.07 | 0.00 | 0.74 | 12.36 | 356.21 | -44.67 | 79.66 | 0.7004 | -648.0 | -610.5 | |
| 0.00 | 2.49 | 0.00 | 1.73 | 11.39 | 355.97 | -44.90 | 81.05 | 0.7029 | -775.0 | -645.3 | |
| 0.00 | 1.60 | 0.00 | 1.11 | 11.47 | 355.78 | -45.09 | 80.95 | 0.7052 | -669.0 | -565.8 | |
| 0.00 | 1.24 | 0.00 | 0.87 | 11.89 | 355.65 | -45.22 | 80.37 | 0.7069 | -776.0 | -725.9 | |
| 0.00 | 1.24 | 0.00 | 0.88 | 14.28 | 355.04 | -45.83 | 77.03 | 0.7157 | -643.0 | -540.7 | |
| 0.00 | 2.31 | 0.00 | 1.62 | 12.41 | 355.41 | -45.47 | 79.63 | 0.7101 | -778.0 | -712.5 | |
| 0.00 | 0.80 | 0.00 | 0.56 | 12.53 | 355.34 | -45.54 | 79.47 | 0.7110 | -426.0 | -556.3 | |
| 0.00 | 2.93 | 0.00 | 2.06 | 12.74 | 355.24 | -45.63 | 79.19 | 0.7122 | -570.0 | -609.7 | |
| 0.00 | 1.69 | 0.00 | 1.19 | 12.09 | 355.17 | -45.71 | 80.10 | 0.7128 | -720.0 | -609.5 | |
| 3.64 | 62.39 | 2.58 | 44.56 | 12.52 | 354.89 | -45.98 | 79.51 | 0.7163 | -796.1 | -176.9 | |
| 0.00 | 1.78 | 0.00 | 1.25 | 10.84 | 355.20 | -45.67 | 81.86 | 0.7121 | -727.0 | -620.2 | |
| 0.00 | 0.98 | 0.00 | 0.69 | 11.29 | 355.07 | -45.81 | 81.23 | 0.7137 | -708.0 | -633.8 | |
| 12.62 | -13.00 | 8.95 | -13.00 | 12.29 | 354.72 | -46.16 | 79.83 | 0.7182 | -762.0 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.57 | 13.28 | 354.49 | -46.39 | 78.47 | 0.7215 | -454.0 | -446.0 | |
| 0.00 | 1.07 | 0.00 | 0.75 | 11.51 | 354.85 | -46.03 | 80.92 | 0.7165 | -751.0 | -631.8 | |
| 0.00 | 1.69 | 0.00 | 1.20 | 11.27 | 354.85 | -46.02 | 81.26 | 0.7164 | -676.0 | -617.5 | |
| 0.00 | 0.80 | 0.00 | 0.57 | 10.97 | 354.91 | -45.96 | 81.68 | 0.7156 | -611.0 | -515.1 | |
| 0.36 | 1.33 | 0.25 | 0.95 | 11.18 | 354.60 | -46.27 | 81.39 | 0.7193 | -660.5 | -584.9 | |
| 0.00 | 1.51 | 0.00 | 1.08 | 11.57 | 354.52 | -46.36 | 80.85 | 0.7204 | -619.0 | -524.0 | |
| 3.38 | -13.00 | 2.42 | -13.00 | 12.37 | 354.21 | -46.67 | 79.75 | 0.7243 | -504.2 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.70 | 10.92 | 354.43 | -46.44 | 81.75 | 0.7213 | -512.0 | -461.3 | |
| 0.00 | 0.71 | 0.00 | 0.51 | 11.58 | 354.21 | -46.67 | 80.85 | 0.7241 | -515.0 | -435.9 | |
| 0.53 | 1.33 | 0.38 | 0.95 | 10.46 | 354.35 | -46.53 | 82.40 | 0.7223 | -604.2 | -565.2 | |
| 0.00 | 0.71 | 0.00 | 0.51 | 11.41 | 354.06 | -46.81 | 81.08 | 0.7258 | -357.0 | -336.1 | |
| 0.00 | 2.76 | 0.00 | 1.97 | 10.66 | 354.17 | -46.70 | 82.12 | 0.7244 | -616.0 | -475.2 | |
| 0.00 | 0.98 | 0.00 | 0.70 | 12.09 | 353.82 | -47.06 | 80.15 | 0.7288 | -227.0 | -175.2 | |
| 0.00 | 1.33 | 0.00 | 0.99 | 16.64 | 352.49 | -48.38 | 74.08 | 0.7472 | -483.0 | -385.3 | |
| 0.00 | 2.58 | 0.00 | 1.86 | 11.67 | 353.87 | -47.01 | 80.73 | 0.7281 | -401.0 | -334.7 | |
| 0.00 | 1.33 | 0.00 | 0.96 | 11.81 | 353.75 | -47.13 | 80.54 | 0.7296 | -418.0 | -322.9 | |
| 0.00 | 0.89 | 0.00 | 0.64 | 10.78 | 353.51 | -47.36 | 81.95 | 0.7322 | -564.0 | -512.6 | |
| 0.00 | 1.07 | 0.00 | 0.80 | 10.50 | 351.72 | -49.15 | 82.34 | 0.7528 | -615.0 | -529.1 | |
| 0.00 | 1.60 | 0.00 | 1.22 | 10.70 | 351.01 | -49.86 | 82.06 | 0.7608 | -413.0 | -319.4 | |
| 0.00 | 1.24 | 0.00 | 0.95 | 9.26 | 350.88 | -49.99 | 83.95 | 0.7625 | 585.0 | 412.8 | |
| 0.00 | 0.62 | 0.00 | 0.49 | 13.84 | 349.60 | -51.28 | 77.99 | 0.7768 | 429.0 | 394.4 | |
| 6.22 | 18.66 | 4.87 | 14.58 | 13.38 | 349.59 | -51.29 | 78.58 | 0.7767 | 593.8 | 606.1 | |
| 0.00 | 0.98 | 0.00 | 0.81 | 14.50 | 347.12 | -53.76 | 77.26 | 0.8028 | -431.0 | -294.6 | |
| 0.00 | 1.60 | 0.00 | 1.32 | 13.55 | 347.23 | -53.65 | 78.43 | 0.8014 | 675.0 | 603.1 | |
| 0.00 | 0.62 | 0.00 | 0.51 | 12.48 | 347.56 | -53.31 | 79.77 | 0.7978 | -270.0 | -341.1 | |
| 1.07 | 2.84 | 0.89 | 2.38 | 15.27 | 346.52 | -54.36 | 76.32 | 0.8091 | 714.4 | 575.6 | |
| 0.00 | 1.07 | 0.00 | 0.89 | 13.98 | 346.88 | -54.00 | 77.91 | 0.8051 | 487.0 | 455.1 | |
| 0.53 | 2.13 | 0.44 | 1.77 | 13.21 | 346.87 | -54.01 | 78.87 | 0.8050 | 326.3 | 238.3 | |
| 0.00 | 2.76 | 0.00 | 2.33 | 13.59 | 346.10 | -54.78 | 78.41 | 0.8128 | 609.0 | 543.7 | |
| 0.00 | 1.24 | 0.00 | 1.07 | 13.79 | 345.59 | -55.29 | 78.18 | 0.8178 | 416.0 | 343.6 | |
| 0.00 | 0.89 | 0.00 | 0.78 | 15.65 | 344.71 | -56.17 | 75.94 | 0.8268 | 351.0 | 383.7 | |
| 0.00 | 0.98 | 0.00 | 0.86 | 15.54 | 344.58 | -56.29 | 76.07 | 0.8279 | 487.0 | 514.5 | |
| 0.00 | 0.62 | 0.00 | 0.56 | 15.83 | 343.77 | -57.11 | 75.75 | 0.8356 | 450.0 | 410.0 | |
| 0.00 | 1.60 | 0.00 | 1.42 | 11.96 | 344.26 | -56.62 | 80.40 | 0.8306 | 248.0 | 290.2 | |
| 0.00 | 0.89 | 0.00 | 0.80 | 14.24 | 343.39 | -57.49 | 77.66 | 0.8388 | 473.0 | 391.3 | |
| 0.00 | 1.60 | 0.00 | 1.43 | 12.11 | 343.93 | -56.95 | 80.22 | 0.8337 | 595.0 | 545.8 | |
| 0.00 | 0.27 | 0.00 | 0.24 | 11.92 | 343.82 | -57.05 | 80.45 | 0.8348 | 417.0 | 426.0 | |
| 0.00 | 0.53 | 0.00 | 0.48 | 10.18 | 343.89 | -56.99 | 82.54 | 0.8345 | 284.0 | 295.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
