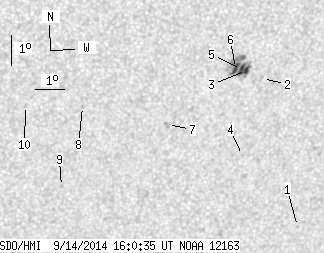

SDO HMI 2014-09-14 16:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.00 | 44.09 | 7.18 | 26.33 | -15.80 | 65.56 | 25.24 | 227.19 | 0.5612 | 457.6 | 493.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-14 16:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.07 | 0.00 | 0.69 | -20.77 | 69.02 | 28.70 | 224.63 | 0.6413 | -675.0 | -571.0 | |
| 0.00 | 1.16 | 0.00 | 0.70 | -15.72 | 66.89 | 26.57 | 228.81 | 0.5742 | 704.0 | 620.8 | |
| 3.55 | 35.01 | 2.13 | 20.91 | -15.42 | 66.29 | 25.97 | 228.57 | 0.5651 | 796.2 | 657.8 | |
| 0.00 | 0.71 | 0.00 | 0.44 | -18.23 | 66.57 | 26.24 | 225.19 | 0.5942 | 805.0 | 676.1 | |
| 4.18 | -3.00 | 2.50 | -3.00 | -15.38 | 66.11 | 25.79 | 228.44 | 0.5628 | 923.6 | 999999 | |
| 4.27 | -3.00 | 2.55 | -3.00 | -15.33 | 65.90 | 25.57 | 228.26 | 0.5600 | 1023.6 | 999999 | |
| 0.00 | 2.40 | 0.00 | 1.43 | -17.05 | 63.77 | 23.45 | 223.51 | 0.5548 | 754.0 | 718.5 | |
| 0.00 | 1.07 | 0.00 | 0.62 | -16.30 | 60.80 | 20.47 | 220.63 | 0.5176 | -644.0 | -455.8 | |
| 0.00 | 1.07 | 0.00 | 0.63 | -18.94 | 60.40 | 20.07 | 216.83 | 0.5436 | -434.0 | -326.8 | |
| 0.00 | 1.60 | 0.00 | 0.91 | -16.18 | 58.88 | 18.56 | 218.04 | 0.4980 | -636.0 | -502.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
