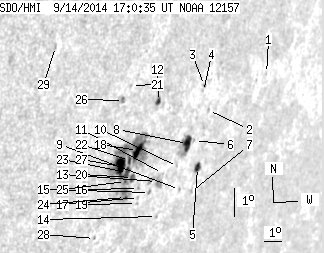

SDO HMI 2014-09-14 17:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.75 | 193.10 | 43.67 | 182.95 | -14.89 | 94.40 | 54.62 | 247.56 | 0.8542 | -230.2 | -173.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-14 17:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.53 | 0.00 | 0.60 | -12.82 | 100.89 | 61.11 | 251.89 | 0.9001 | 428.0 | 413.8 | |
| 0.00 | 1.16 | 0.00 | 1.18 | -13.63 | 97.64 | 57.87 | 250.05 | 0.8774 | -248.0 | -178.2 | |
| 0.00 | 0.98 | 0.00 | 0.98 | -12.78 | 97.09 | 57.32 | 250.82 | 0.8710 | -583.0 | -551.0 | |
| 0.00 | 0.44 | 0.00 | 0.45 | -12.97 | 97.10 | 57.33 | 250.61 | 0.8716 | -348.0 | -322.8 | |
| 4.00 | 6.04 | 4.18 | 6.32 | -15.47 | 97.76 | 57.98 | 248.09 | 0.8827 | 372.2 | 201.4 | |
| 0.00 | 1.24 | 0.00 | 1.27 | -14.54 | 97.18 | 57.41 | 248.91 | 0.8761 | 297.0 | 294.4 | |
| 0.00 | 1.24 | 0.00 | 1.31 | -16.24 | 97.75 | 57.98 | 247.25 | 0.8846 | 207.0 | 144.6 | |
| 8.53 | 19.19 | 8.60 | 19.31 | -14.59 | 96.80 | 57.03 | 248.73 | 0.8732 | 609.2 | 364.3 | |
| 0.00 | 0.80 | 0.00 | 0.82 | -16.09 | 96.97 | 57.20 | 247.15 | 0.8784 | 222.0 | 192.3 | |
| 0.00 | 0.36 | 0.00 | 0.36 | -15.30 | 96.51 | 56.74 | 247.86 | 0.8727 | 378.0 | 352.0 | |
| 0.00 | 0.89 | 0.00 | 0.88 | -15.44 | 95.72 | 55.95 | 247.44 | 0.8668 | 435.0 | 298.9 | |
| 2.04 | 4.09 | 1.91 | 3.83 | -13.02 | 94.60 | 54.83 | 249.75 | 0.8510 | 631.5 | 437.2 | |
| 0.00 | 11.82 | 0.00 | 11.60 | -15.67 | 95.48 | 55.70 | 247.10 | 0.8655 | 30.0 | 109.5 | |
| 0.00 | 1.16 | 0.00 | 1.16 | -16.86 | 95.99 | 56.22 | 245.98 | 0.8729 | 390.0 | 368.7 | |
| 0.00 | 1.60 | 0.00 | 1.56 | -16.00 | 95.22 | 55.45 | 246.65 | 0.8644 | -353.0 | -289.3 | |
| 0.00 | 0.98 | 0.00 | 0.94 | -15.80 | 94.53 | 54.76 | 246.62 | 0.8582 | -473.0 | -407.8 | |
| 0.00 | 0.80 | 0.00 | 0.77 | -16.10 | 94.66 | 54.88 | 246.33 | 0.8601 | -468.0 | -355.1 | |
| 7.91 | 133.02 | 7.39 | 123.61 | -14.51 | 93.99 | 54.22 | 247.85 | 0.8500 | -689.8 | -293.3 | |
| 0.00 | 1.16 | 0.00 | 1.12 | -16.29 | 94.62 | 54.85 | 246.11 | 0.8604 | -395.0 | -324.6 | |
| 2.75 | -18.00 | 2.60 | -18.00 | -15.39 | 94.05 | 54.27 | 246.90 | 0.8530 | -310.3 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.56 | -12.33 | 92.96 | 53.19 | 249.96 | 0.8347 | -508.0 | -445.1 | |
| 2.13 | -18.00 | 1.98 | -18.00 | -14.80 | 93.66 | 53.89 | 247.41 | 0.8481 | -658.8 | 999999 | |
| 4.44 | -18.00 | 4.14 | -18.00 | -15.19 | 93.70 | 53.93 | 246.99 | 0.8495 | -500.9 | 999999 | |
| 0.89 | -18.00 | 0.84 | -18.00 | -16.02 | 93.92 | 54.14 | 246.15 | 0.8538 | 386.7 | 999999 | |
| 0.62 | -18.00 | 0.58 | -18.00 | -15.48 | 93.70 | 53.93 | 246.67 | 0.8504 | -490.0 | 999999 | |
| 0.00 | 2.49 | 0.00 | 2.22 | -12.78 | 92.68 | 52.91 | 249.34 | 0.8335 | -759.0 | -522.2 | |
| 12.44 | -18.00 | 11.45 | -18.00 | -14.95 | 93.24 | 53.47 | 247.09 | 0.8449 | -918.9 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.74 | -17.23 | 92.75 | 52.98 | 244.36 | 0.8480 | -493.0 | -432.7 | |
| 0.00 | 1.69 | 0.00 | 1.36 | -10.68 | 88.79 | 49.02 | 250.36 | 0.7899 | -423.0 | -416.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
