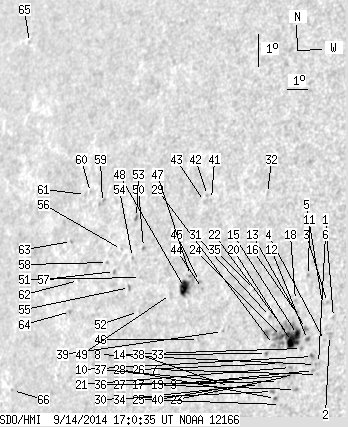

SDO HMI 2014-09-14 17:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.11 | 157.86 | 19.47 | 115.27 | 12.76 | 352.25 | -47.52 | 79.28 | 0.7327 | -229.4 | -150.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-14 17:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.42 | 0.00 | 0.96 | 13.12 | 356.41 | -43.36 | 78.48 | 0.6848 | -658.0 | -495.6 | |
| 0.00 | 3.11 | 0.00 | 2.11 | 12.56 | 356.36 | -43.41 | 79.29 | 0.6850 | -787.0 | -697.0 | |
| 0.00 | 1.16 | 0.00 | 0.79 | 13.55 | 356.06 | -43.72 | 77.88 | 0.6895 | -668.0 | -579.7 | |
| 0.00 | 1.16 | 0.00 | 0.79 | 12.40 | 356.18 | -43.59 | 79.55 | 0.6871 | -678.0 | -607.7 | |
| 0.00 | 1.07 | 0.00 | 0.73 | 13.50 | 355.85 | -43.92 | 77.97 | 0.6919 | -632.0 | -553.7 | |
| 0.00 | 1.07 | 0.00 | 0.73 | 11.68 | 356.07 | -43.70 | 80.59 | 0.6882 | -752.0 | -607.9 | |
| 0.00 | 1.07 | 0.00 | 0.73 | 11.35 | 356.09 | -43.68 | 81.08 | 0.6878 | -697.0 | -654.0 | |
| 0.00 | 0.89 | 0.00 | 0.61 | 11.64 | 355.95 | -43.83 | 80.66 | 0.6896 | -757.0 | -662.6 | |
| 0.00 | 1.33 | 0.00 | 0.91 | 11.46 | 355.90 | -43.87 | 80.93 | 0.6902 | -718.0 | -624.9 | |
| 0.00 | 2.40 | 0.00 | 1.64 | 11.87 | 355.77 | -44.00 | 80.33 | 0.6919 | -815.0 | -667.3 | |
| 0.00 | 1.16 | 0.00 | 0.80 | 14.29 | 355.05 | -44.72 | 76.92 | 0.7024 | -506.0 | -517.4 | |
| 0.44 | 2.04 | 0.31 | 1.41 | 12.36 | 355.46 | -44.32 | 79.64 | 0.6960 | -840.4 | -725.7 | |
| 0.00 | 2.31 | 0.00 | 1.59 | 12.69 | 355.30 | -44.47 | 79.19 | 0.6981 | -696.0 | -636.7 | |
| 0.00 | 1.42 | 0.00 | 0.98 | 12.07 | 355.26 | -44.52 | 80.07 | 0.6983 | -697.0 | -610.2 | |
| 4.53 | 55.36 | 3.14 | 38.72 | 12.48 | 355.00 | -44.78 | 79.50 | 0.7017 | -840.4 | -214.0 | |
| 0.00 | 1.16 | 0.00 | 0.80 | 13.13 | 354.80 | -44.97 | 78.58 | 0.7044 | -607.0 | -549.8 | |
| 0.00 | 1.78 | 0.00 | 1.23 | 10.82 | 355.24 | -44.53 | 81.87 | 0.6981 | -710.0 | -612.6 | |
| 0.00 | 1.07 | 0.00 | 0.74 | 13.49 | 354.68 | -45.10 | 78.09 | 0.7062 | -572.0 | -412.1 | |
| 0.00 | 0.89 | 0.00 | 0.61 | 11.24 | 355.12 | -44.65 | 81.27 | 0.6997 | -617.0 | -569.2 | |
| 9.69 | -15.00 | 6.73 | -15.00 | 12.25 | 354.78 | -44.99 | 79.85 | 0.7042 | -839.8 | 999999 | |
| 0.00 | 1.42 | 0.00 | 0.99 | 11.46 | 354.90 | -44.87 | 80.96 | 0.7024 | -811.0 | -670.7 | |
| 2.58 | -15.00 | 1.80 | -15.00 | 12.44 | 354.61 | -45.16 | 79.57 | 0.7064 | -657.8 | 999999 | |
| 0.00 | 3.55 | 0.00 | 2.47 | 11.18 | 354.83 | -44.94 | 81.36 | 0.7033 | -528.0 | -635.1 | |
| 0.98 | -15.00 | 0.68 | -15.00 | 12.36 | 354.32 | -45.45 | 79.71 | 0.7098 | -569.5 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.68 | 10.32 | 354.69 | -45.09 | 82.59 | 0.7049 | -702.0 | -601.9 | |
| 0.00 | 3.55 | 0.00 | 2.49 | 11.54 | 354.41 | -45.37 | 80.86 | 0.7085 | -580.0 | -559.0 | |
| 0.00 | 0.27 | 0.00 | 0.19 | 11.00 | 354.47 | -45.30 | 81.63 | 0.7076 | -506.0 | -519.7 | |
| 0.00 | 1.24 | 0.00 | 0.87 | 10.48 | 354.44 | -45.33 | 82.37 | 0.7079 | -753.0 | -675.1 | |
| 0.00 | 1.60 | 0.00 | 1.13 | 12.09 | 354.03 | -45.75 | 80.11 | 0.7133 | -250.0 | -205.1 | |
| 0.00 | 1.95 | 0.00 | 1.37 | 10.68 | 354.27 | -45.50 | 82.09 | 0.7100 | -653.0 | -515.9 | |
| 0.00 | 0.98 | 0.00 | 0.69 | 12.92 | 353.70 | -46.07 | 78.96 | 0.7175 | -346.0 | -235.9 | |
| 0.00 | 1.07 | 0.00 | 0.78 | 16.59 | 352.54 | -47.23 | 74.00 | 0.7342 | -451.0 | -437.2 | |
| 0.00 | 1.16 | 0.00 | 0.82 | 11.79 | 353.78 | -45.99 | 80.53 | 0.7161 | -349.0 | -282.7 | |
| 0.00 | 2.93 | 0.00 | 2.08 | 10.84 | 353.66 | -46.11 | 81.87 | 0.7173 | -626.0 | -488.1 | |
| 0.00 | 0.89 | 0.00 | 0.64 | 13.66 | 352.79 | -46.98 | 77.99 | 0.7286 | -123.0 | -192.7 | |
| 0.00 | 1.07 | 0.00 | 0.76 | 10.87 | 353.39 | -46.38 | 81.82 | 0.7206 | -433.0 | -353.1 | |
| 0.00 | 0.62 | 0.00 | 0.44 | 10.83 | 353.22 | -46.55 | 81.89 | 0.7226 | -449.0 | -409.7 | |
| 0.00 | 1.07 | 0.00 | 0.77 | 10.66 | 352.35 | -47.42 | 82.13 | 0.7329 | -330.0 | -259.0 | |
| 0.00 | 0.80 | 0.00 | 0.59 | 12.27 | 351.67 | -48.10 | 79.94 | 0.7410 | -362.0 | -264.7 | |
| 0.00 | 2.93 | 0.00 | 2.15 | 10.52 | 351.78 | -47.99 | 82.32 | 0.7394 | -463.0 | -436.9 | |
| 0.00 | 0.71 | 0.00 | 0.54 | 16.18 | 350.01 | -49.76 | 74.84 | 0.7618 | -346.0 | -354.4 | |
| 0.00 | 1.33 | 0.00 | 1.02 | 16.28 | 349.78 | -49.99 | 74.73 | 0.7644 | -332.0 | -303.5 | |
| 0.00 | 1.16 | 0.00 | 0.89 | 16.09 | 349.70 | -50.07 | 74.99 | 0.7651 | -379.0 | -280.8 | |
| 0.00 | 0.80 | 0.00 | 0.60 | 13.48 | 350.42 | -49.36 | 78.38 | 0.7556 | 447.0 | 434.3 | |
| 0.00 | 1.42 | 0.00 | 1.08 | 13.67 | 350.22 | -49.56 | 78.13 | 0.7579 | 667.0 | 533.7 | |
| 0.00 | 1.42 | 0.00 | 1.07 | 11.93 | 350.63 | -49.15 | 80.42 | 0.7528 | 413.0 | 475.0 | |
| 0.00 | 1.42 | 0.00 | 1.09 | 13.81 | 349.74 | -50.03 | 77.97 | 0.7632 | 695.0 | 618.4 | |
| 8.89 | 16.88 | 6.81 | 12.91 | 13.43 | 349.56 | -50.21 | 78.48 | 0.7651 | 689.2 | 545.4 | |
| 0.00 | 1.24 | 0.00 | 0.96 | 13.15 | 348.95 | -50.82 | 78.86 | 0.7716 | 341.0 | 251.6 | |
| 0.00 | 1.07 | 0.00 | 0.86 | 14.43 | 347.20 | -52.58 | 77.29 | 0.7907 | -345.0 | -246.6 | |
| 0.00 | 1.07 | 0.00 | 0.86 | 13.52 | 347.34 | -52.44 | 78.44 | 0.7889 | 662.0 | 601.8 | |
| 0.00 | 0.71 | 0.00 | 0.57 | 12.50 | 347.54 | -52.23 | 79.74 | 0.7865 | -318.0 | -270.1 | |
| 0.00 | 1.60 | 0.00 | 1.31 | 15.29 | 346.53 | -53.24 | 76.24 | 0.7979 | 702.0 | 609.3 | |
| 0.00 | 0.98 | 0.00 | 0.79 | 14.08 | 346.75 | -53.03 | 77.76 | 0.7952 | 507.0 | 464.1 | |
| 0.00 | 1.87 | 0.00 | 1.51 | 13.17 | 346.88 | -52.89 | 78.90 | 0.7936 | 319.0 | 308.0 | |
| 0.00 | 0.27 | 0.00 | 0.22 | 14.26 | 346.11 | -53.67 | 77.55 | 0.8018 | 648.0 | 575.7 | |
| 0.00 | 1.42 | 0.00 | 1.18 | 13.57 | 345.97 | -53.80 | 78.42 | 0.8030 | 500.0 | 430.1 | |
| 0.00 | 0.89 | 0.00 | 0.74 | 13.80 | 345.52 | -54.25 | 78.14 | 0.8076 | 480.0 | 398.0 | |
| 0.00 | 3.73 | 0.00 | 3.19 | 15.56 | 344.60 | -55.18 | 76.00 | 0.8172 | 572.0 | 434.5 | |
| 0.00 | 0.62 | 0.00 | 0.54 | 15.80 | 343.83 | -55.94 | 75.75 | 0.8246 | 517.0 | 461.4 | |
| 0.00 | 1.78 | 0.00 | 1.56 | 15.71 | 343.59 | -56.19 | 75.87 | 0.8269 | 426.0 | 341.5 | |
| 0.00 | 0.80 | 0.00 | 0.69 | 13.12 | 344.18 | -55.59 | 79.01 | 0.8207 | 547.0 | 457.6 | |
| 0.00 | 1.16 | 0.00 | 1.02 | 14.24 | 343.39 | -56.39 | 77.66 | 0.8285 | 467.0 | 384.3 | |
| 0.00 | 1.69 | 0.00 | 1.46 | 12.15 | 344.05 | -55.72 | 80.18 | 0.8219 | 696.0 | 614.1 | |
| 0.00 | 0.98 | 0.00 | 1.00 | 19.87 | 337.88 | -61.89 | 71.25 | 0.8780 | 440.0 | 368.1 | |
| 0.00 | 0.89 | 0.00 | 0.82 | 9.48 | 341.55 | -58.22 | 83.32 | 0.8463 | -232.0 | -283.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
