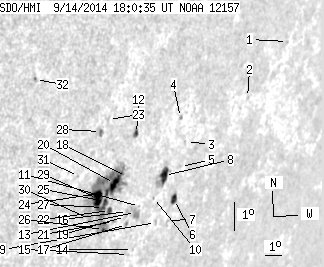

SDO HMI 2014-09-14 18:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.41 | 191.01 | 40.17 | 183.46 | -14.86 | 94.37 | 55.15 | 247.79 | 0.8585 | -186.9 | -213.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-14 18:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 1.10 | -11.08 | 103.26 | 64.04 | 254.51 | 0.9173 | 311.0 | 295.2 | |
| 0.00 | 1.07 | 0.00 | 1.24 | -12.60 | 101.15 | 61.93 | 252.35 | 0.9055 | 160.0 | 261.3 | |
| 0.00 | 0.62 | 0.00 | 0.65 | -13.61 | 97.73 | 58.51 | 250.27 | 0.8823 | -64.0 | -116.4 | |
| 0.00 | 1.42 | 0.00 | 1.45 | -12.77 | 97.05 | 57.83 | 250.99 | 0.8752 | -564.0 | -524.5 | |
| 0.00 | 0.71 | 0.00 | 0.75 | -14.40 | 97.69 | 58.47 | 249.40 | 0.8839 | 492.0 | 441.5 | |
| 4.00 | 5.95 | 4.25 | 6.33 | -15.47 | 97.80 | 58.58 | 248.27 | 0.8872 | 350.2 | 207.6 | |
| 0.00 | 0.44 | 0.00 | 0.47 | -16.13 | 97.62 | 58.40 | 247.51 | 0.8875 | 85.0 | 92.0 | |
| 8.09 | 16.35 | 8.29 | 16.74 | -14.59 | 96.82 | 57.60 | 248.92 | 0.8777 | 563.8 | 358.0 | |
| 0.00 | 1.24 | 0.00 | 1.30 | -16.12 | 96.96 | 57.74 | 247.30 | 0.8825 | 287.0 | 148.6 | |
| 0.00 | 0.89 | 0.00 | 0.91 | -15.26 | 96.46 | 57.24 | 248.07 | 0.8765 | 223.0 | 239.0 | |
| 0.00 | 0.27 | 0.00 | 0.27 | -15.47 | 95.74 | 56.52 | 247.60 | 0.8715 | 369.0 | 388.0 | |
| 1.51 | 4.00 | 1.44 | 3.80 | -13.02 | 94.65 | 55.43 | 249.95 | 0.8561 | 607.2 | 490.3 | |
| 0.00 | 7.91 | 0.00 | 7.91 | -15.65 | 95.59 | 56.37 | 247.35 | 0.8707 | 38.0 | 57.4 | |
| 0.00 | 0.80 | 0.00 | 0.82 | -16.89 | 95.97 | 56.74 | 246.13 | 0.8770 | 350.0 | 358.8 | |
| 0.00 | 0.89 | 0.00 | 0.91 | -17.03 | 95.80 | 56.58 | 245.92 | 0.8761 | 320.0 | 297.8 | |
| 0.00 | 2.04 | 0.00 | 2.01 | -15.56 | 95.10 | 55.88 | 247.28 | 0.8666 | 240.0 | 256.0 | |
| 0.00 | 2.04 | 0.00 | 2.03 | -15.99 | 95.22 | 56.00 | 246.85 | 0.8688 | -337.0 | -273.5 | |
| 0.00 | 1.51 | 0.00 | 1.45 | -14.38 | 94.58 | 55.36 | 248.40 | 0.8592 | 265.0 | 205.9 | |
| 0.00 | 0.80 | 0.00 | 0.79 | -15.72 | 95.05 | 55.83 | 247.09 | 0.8667 | 144.0 | 123.1 | |
| 7.29 | 125.63 | 6.91 | 118.27 | -14.54 | 93.98 | 54.76 | 248.02 | 0.8547 | -717.4 | -348.2 | |
| 0.00 | 1.42 | 0.00 | 1.38 | -15.81 | 94.42 | 55.20 | 246.76 | 0.8619 | -484.0 | -407.9 | |
| 2.49 | -20.00 | 2.38 | -20.00 | -15.41 | 94.04 | 54.82 | 247.07 | 0.8576 | -313.5 | 999999 | |
| 0.00 | 1.60 | 0.00 | 1.45 | -12.39 | 92.94 | 53.72 | 250.08 | 0.8396 | -508.0 | -317.4 | |
| 2.04 | -20.00 | 1.93 | -20.00 | -14.79 | 93.64 | 54.42 | 247.61 | 0.8525 | -667.6 | 999999 | |
| 2.31 | -20.00 | 2.19 | -20.00 | -15.09 | 93.70 | 54.48 | 247.30 | 0.8539 | -435.6 | 999999 | |
| 1.24 | -20.00 | 1.19 | -20.00 | -16.02 | 93.96 | 54.74 | 246.37 | 0.8587 | 375.0 | 999999 | |
| 0.27 | -20.00 | 0.25 | -20.00 | -15.28 | 93.66 | 54.44 | 247.08 | 0.8541 | -563.7 | 999999 | |
| 0.62 | 3.02 | 0.56 | 2.73 | -12.74 | 92.63 | 53.41 | 249.57 | 0.8378 | -652.3 | -457.1 | |
| 11.55 | -20.00 | 10.78 | -20.00 | -14.94 | 93.21 | 53.99 | 247.29 | 0.8493 | -925.7 | 999999 | |
| 0.00 | 7.73 | 0.00 | 7.21 | -15.56 | 92.96 | 53.74 | 246.51 | 0.8491 | -230.0 | -304.5 | |
| 0.00 | 0.53 | 0.00 | 0.48 | -14.10 | 91.92 | 52.70 | 247.76 | 0.8356 | -608.0 | -552.3 | |
| 0.00 | 1.24 | 0.00 | 1.01 | -10.71 | 88.86 | 49.64 | 250.56 | 0.7962 | -596.0 | -482.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
