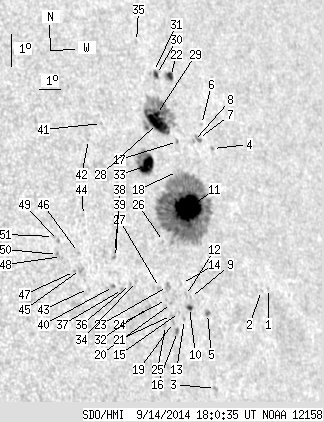

SDO HMI 2014-09-14 18:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 88.05 | 449.36 | 66.05 | 335.95 | 15.29 | 88.15 | 48.93 | 284.06 | 0.7521 | 415.6 | 267.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-14 18:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.80 | 0.00 | 0.64 | 12.05 | 91.74 | 52.52 | 279.69 | 0.7895 | -433.0 | -363.8 | |
| 0.00 | 0.98 | 0.00 | 0.78 | 12.03 | 91.38 | 52.16 | 279.66 | 0.7857 | -491.0 | -419.3 | |
| 0.00 | 1.95 | 0.00 | 1.47 | 9.32 | 88.50 | 49.28 | 276.09 | 0.7545 | -573.0 | -476.3 | |
| 0.00 | 1.51 | 0.00 | 1.18 | 16.50 | 90.36 | 51.14 | 285.44 | 0.7768 | 438.0 | 274.8 | |
| 0.53 | 2.49 | 0.40 | 1.87 | 11.59 | 88.62 | 49.40 | 279.11 | 0.7556 | -567.2 | -489.5 | |
| 0.00 | 1.07 | 0.00 | 0.83 | 17.27 | 90.10 | 50.87 | 286.46 | 0.7747 | 376.0 | 305.5 | |
| 0.00 | 3.29 | 0.00 | 2.55 | 16.86 | 89.79 | 50.57 | 285.97 | 0.7711 | 527.0 | 437.2 | |
| 0.00 | 1.07 | 0.00 | 0.82 | 16.80 | 89.52 | 50.30 | 285.91 | 0.7682 | 551.0 | 515.0 | |
| 0.00 | 0.36 | 0.00 | 0.26 | 12.14 | 87.95 | 48.73 | 279.86 | 0.7481 | -468.0 | -441.8 | |
| 1.42 | 2.58 | 1.06 | 1.91 | 11.85 | 87.83 | 48.61 | 279.47 | 0.7467 | -726.1 | -558.2 | |
| 42.20 | 268.15 | 31.84 | 201.70 | 14.84 | 88.61 | 49.39 | 283.43 | 0.7567 | 1168.9 | 432.7 | |
| 0.00 | 1.69 | 0.00 | 1.25 | 12.22 | 87.74 | 48.51 | 279.98 | 0.7457 | -231.0 | -275.7 | |
| 0.00 | 1.07 | 0.00 | 0.79 | 11.51 | 87.52 | 48.30 | 279.02 | 0.7431 | -467.0 | -373.6 | |
| 0.00 | 0.36 | 0.00 | 0.26 | 12.60 | 87.64 | 48.42 | 280.49 | 0.7447 | -368.0 | -298.8 | |
| 0.00 | 0.71 | 0.00 | 0.52 | 11.74 | 87.34 | 48.12 | 279.34 | 0.7410 | -517.0 | -505.5 | |
| 0.00 | 2.22 | 0.00 | 1.63 | 11.18 | 87.12 | 47.90 | 278.58 | 0.7384 | -650.0 | -602.8 | |
| 0.00 | 0.98 | 0.00 | 0.74 | 16.87 | 88.76 | 49.54 | 286.08 | 0.7600 | 436.0 | 345.6 | |
| 0.00 | 0.98 | 0.00 | 0.74 | 15.97 | 88.44 | 49.22 | 284.93 | 0.7558 | 33.0 | 43.9 | |
| 0.00 | 1.51 | 0.00 | 1.10 | 11.47 | 87.00 | 47.78 | 278.97 | 0.7371 | -573.0 | -493.4 | |
| 0.00 | 1.16 | 0.00 | 0.84 | 12.04 | 87.04 | 47.82 | 279.76 | 0.7377 | -678.0 | -578.2 | |
| 0.00 | 1.60 | 0.00 | 1.17 | 11.69 | 86.96 | 47.74 | 279.27 | 0.7366 | -637.0 | -552.9 | |
| 2.93 | 6.04 | 2.25 | 4.64 | 18.85 | 89.18 | 49.96 | 288.63 | 0.7668 | -617.8 | -365.9 | |
| 0.00 | 4.53 | 0.00 | 3.31 | 12.57 | 86.98 | 47.76 | 280.47 | 0.7372 | -502.0 | -427.4 | |
| 0.00 | 0.98 | 0.00 | 0.71 | 12.18 | 86.84 | 47.62 | 279.95 | 0.7354 | -715.0 | -578.6 | |
| 0.00 | 0.80 | 0.00 | 0.58 | 11.41 | 86.62 | 47.40 | 278.90 | 0.7326 | -621.0 | -545.3 | |
| 0.00 | 0.44 | 0.00 | 0.33 | 13.93 | 87.16 | 47.94 | 282.31 | 0.7398 | 673.0 | 617.6 | |
| 0.00 | 1.78 | 0.00 | 1.29 | 12.57 | 86.62 | 47.40 | 280.49 | 0.7329 | -707.0 | -570.0 | |
| 20.35 | 76.86 | 15.25 | 57.76 | 17.50 | 88.01 | 48.79 | 287.00 | 0.7526 | 825.6 | 190.3 | |
| 2.93 | -28.00 | 2.20 | -28.00 | 17.77 | 88.07 | 48.85 | 287.36 | 0.7535 | 744.1 | 999999 | |
| 1.87 | 3.91 | 1.42 | 2.97 | 18.98 | 88.53 | 49.31 | 288.88 | 0.7601 | 569.8 | 370.8 | |
| 0.00 | 1.24 | 0.00 | 0.94 | 19.08 | 88.43 | 49.21 | 289.03 | 0.7592 | 473.0 | 463.3 | |
| 0.00 | 3.20 | 0.00 | 2.29 | 12.02 | 85.98 | 46.76 | 279.75 | 0.7253 | -673.0 | -611.9 | |
| 15.82 | 30.74 | 11.63 | 22.58 | 16.28 | 87.12 | 47.90 | 285.48 | 0.7413 | 831.0 | 519.1 | |
| 0.00 | 1.24 | 0.00 | 0.89 | 12.84 | 85.64 | 46.42 | 280.92 | 0.7216 | -690.0 | -508.7 | |
| 0.00 | 0.53 | 0.00 | 0.40 | 20.06 | 88.00 | 48.78 | 290.39 | 0.7561 | 602.0 | 551.3 | |
| 0.00 | 1.87 | 0.00 | 1.32 | 12.78 | 85.35 | 46.13 | 280.84 | 0.7182 | -657.0 | -528.4 | |
| 0.00 | 1.69 | 0.00 | 1.19 | 12.66 | 84.97 | 45.75 | 280.70 | 0.7135 | -662.0 | -615.6 | |
| 0.00 | 0.80 | 0.00 | 0.56 | 13.65 | 84.89 | 45.67 | 282.08 | 0.7133 | -473.0 | -461.7 | |
| 0.00 | 1.16 | 0.00 | 0.81 | 13.80 | 84.89 | 45.67 | 282.30 | 0.7133 | -501.0 | -351.2 | |
| 0.00 | 1.87 | 0.00 | 1.31 | 12.79 | 84.60 | 45.38 | 280.89 | 0.7092 | -766.0 | -679.2 | |
| 0.00 | 0.89 | 0.00 | 0.64 | 17.73 | 85.46 | 46.24 | 287.69 | 0.7244 | 590.0 | 420.2 | |
| 0.00 | 0.89 | 0.00 | 0.63 | 17.30 | 84.73 | 45.51 | 287.21 | 0.7153 | 726.0 | 538.1 | |
| 0.00 | 1.42 | 0.00 | 0.98 | 12.82 | 83.51 | 44.29 | 281.01 | 0.6960 | -595.0 | -468.6 | |
| 0.00 | 0.27 | 0.00 | 0.18 | 15.03 | 83.84 | 44.62 | 284.15 | 0.7019 | -496.0 | -499.0 | |
| 0.00 | 3.02 | 0.00 | 2.07 | 13.42 | 83.30 | 44.08 | 281.89 | 0.6939 | -640.0 | -603.5 | |
| 0.00 | 1.07 | 0.00 | 0.73 | 13.94 | 83.34 | 44.12 | 282.64 | 0.6947 | -663.0 | -513.8 | |
| 0.00 | 0.89 | 0.00 | 0.61 | 13.38 | 83.03 | 43.81 | 281.86 | 0.6905 | -741.0 | -683.4 | |
| 0.00 | 1.24 | 0.00 | 0.84 | 13.88 | 82.59 | 43.37 | 282.63 | 0.6855 | -506.0 | -564.4 | |
| 0.00 | 1.33 | 0.00 | 0.90 | 14.37 | 82.58 | 43.36 | 283.35 | 0.6859 | -628.0 | -531.7 | |
| 0.00 | 1.24 | 0.00 | 0.84 | 13.95 | 82.44 | 43.22 | 282.76 | 0.6837 | -734.0 | -622.9 | |
| 0.00 | 0.89 | 0.00 | 0.60 | 14.51 | 82.40 | 43.18 | 283.57 | 0.6838 | -598.0 | -497.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
