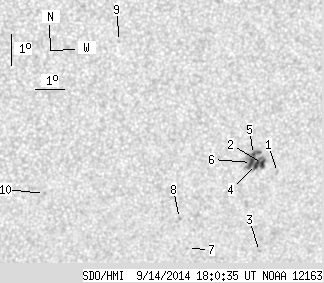

SDO HMI 2014-09-14 18:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.84 | 33.40 | 6.54 | 20.12 | -15.53 | 65.65 | 26.43 | 228.87 | 0.5713 | 722.2 | 631.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-14 18:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.33 | 0.00 | 0.81 | -15.68 | 66.91 | 27.69 | 230.01 | 0.5860 | 716.0 | 473.3 | |
| 2.93 | 26.48 | 1.77 | 15.98 | -15.35 | 66.33 | 27.11 | 229.87 | 0.5769 | 796.7 | 754.6 | |
| 0.00 | 1.42 | 0.00 | 0.88 | -18.27 | 66.68 | 27.46 | 226.41 | 0.6067 | 801.0 | 603.9 | |
| 3.02 | -2.00 | 1.83 | -2.00 | -15.37 | 66.12 | 26.90 | 229.63 | 0.5748 | 943.3 | 999999 | |
| 0.89 | -2.00 | 0.53 | -2.00 | -15.04 | 65.97 | 26.75 | 229.93 | 0.5702 | 1039.7 | 999999 | |
| 4.00 | -2.00 | 2.41 | -2.00 | -15.30 | 65.94 | 26.72 | 229.54 | 0.5721 | 1046.8 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.54 | -18.01 | 64.09 | 24.87 | 223.93 | 0.5786 | 597.0 | 497.7 | |
| 0.00 | 1.33 | 0.00 | 0.80 | -17.00 | 63.66 | 24.44 | 224.74 | 0.5643 | 859.0 | 691.2 | |
| 0.00 | 0.71 | 0.00 | 0.40 | -11.14 | 61.01 | 21.79 | 229.96 | 0.4776 | 648.0 | 390.0 | |
| 0.00 | 1.24 | 0.00 | 0.71 | -15.94 | 58.95 | 19.73 | 220.06 | 0.5064 | -775.0 | -616.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
