SDO HMI 2014-09-14 18:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.98 | 148.61 | 19.96 | 107.36 | 12.74 | 352.24 | -46.98 | 79.28 | 0.7265 | -238.4 | -171.4 | |
|
previous
or next observation for the same group /

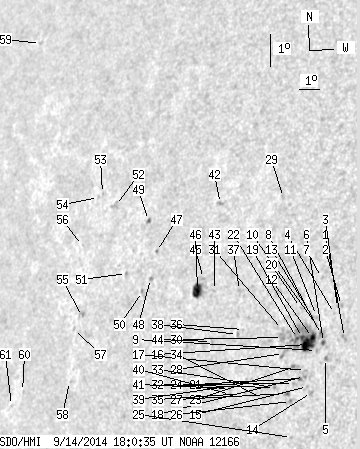

back to the solar disc SDO HMI 2014-09-14 18:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.22 | 0.00 | 1.49 | 12.58 | 356.36 | -42.86 | 79.23 | 0.6781 | -802.0 | -701.5 | |
| 0.00 | 1.42 | 0.00 | 0.96 | 13.53 | 356.02 | -43.20 | 77.86 | 0.6830 | -625.0 | -521.1 | |
| 0.00 | 0.98 | 0.00 | 0.66 | 13.45 | 355.87 | -43.35 | 77.99 | 0.6849 | -688.0 | -587.7 | |
| 0.00 | 0.27 | 0.00 | 0.18 | 13.26 | 355.78 | -43.44 | 78.27 | 0.6858 | -639.0 | -640.0 | |
| 0.00 | 1.60 | 0.00 | 1.09 | 11.88 | 355.69 | -43.53 | 80.30 | 0.6861 | -798.0 | -757.2 | |
| 0.89 | 2.04 | 0.61 | 1.39 | 12.35 | 355.51 | -43.71 | 79.62 | 0.6886 | -827.8 | -730.4 | |
| 0.00 | 0.98 | 0.00 | 0.67 | 14.30 | 354.98 | -44.24 | 76.85 | 0.6966 | -579.0 | -515.5 | |
| 0.00 | 4.00 | 0.00 | 2.73 | 12.59 | 355.37 | -43.85 | 79.29 | 0.6904 | -734.0 | -615.1 | |
| 0.00 | 1.16 | 0.00 | 0.79 | 12.09 | 355.26 | -43.96 | 80.02 | 0.6915 | -730.0 | -621.5 | |
| 0.00 | 0.89 | 0.00 | 0.61 | 12.87 | 355.10 | -44.12 | 78.90 | 0.6940 | -299.0 | -265.8 | |
| 0.00 | 0.62 | 0.00 | 0.43 | 13.14 | 355.04 | -44.18 | 78.52 | 0.6949 | -425.0 | -483.0 | |
| 4.09 | 50.91 | 2.81 | 35.20 | 12.47 | 355.01 | -44.21 | 79.49 | 0.6948 | -849.8 | -281.0 | |
| 0.00 | 1.07 | 0.00 | 0.73 | 13.10 | 354.87 | -44.35 | 78.59 | 0.6969 | -676.0 | -524.3 | |
| 0.00 | 2.49 | 0.00 | 1.70 | 10.81 | 355.30 | -43.92 | 81.87 | 0.6906 | -703.0 | -530.3 | |
| 0.00 | 0.89 | 0.00 | 0.61 | 10.98 | 355.10 | -44.13 | 81.64 | 0.6931 | -685.0 | -619.9 | |
| 10.48 | -12.00 | 7.22 | -12.00 | 12.23 | 354.80 | -44.42 | 79.84 | 0.6972 | -852.0 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.61 | 11.45 | 354.92 | -44.30 | 80.96 | 0.6955 | -817.0 | -698.1 | |
| 0.00 | 1.51 | 0.00 | 1.04 | 11.27 | 354.91 | -44.31 | 81.22 | 0.6955 | -795.0 | -625.9 | |
| 2.04 | -12.00 | 1.41 | -12.00 | 12.43 | 354.59 | -44.63 | 79.57 | 0.7000 | -648.1 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.62 | 13.32 | 354.30 | -44.92 | 78.32 | 0.7040 | -410.0 | -398.2 | |
| 0.36 | 1.51 | 0.24 | 1.04 | 11.19 | 354.71 | -44.51 | 81.34 | 0.6979 | -758.8 | -666.5 | |
| 0.53 | -12.00 | 0.37 | -12.00 | 12.38 | 354.38 | -44.84 | 79.65 | 0.7025 | -634.5 | 999999 | |
| 0.00 | 3.91 | 0.00 | 2.71 | 11.53 | 354.47 | -44.75 | 80.86 | 0.7010 | -570.0 | -603.1 | |
| 0.00 | 1.07 | 0.00 | 0.74 | 11.02 | 354.48 | -44.74 | 81.59 | 0.7007 | -591.0 | -494.5 | |
| 0.00 | 0.80 | 0.00 | 0.55 | 9.39 | 354.68 | -44.54 | 83.92 | 0.6982 | -569.0 | -489.2 | |
| 0.00 | 1.51 | 0.00 | 1.05 | 10.47 | 354.46 | -44.76 | 82.38 | 0.7010 | -779.0 | -695.2 | |
| 0.00 | 2.22 | 0.00 | 1.54 | 10.70 | 354.28 | -44.94 | 82.06 | 0.7031 | -687.0 | -542.4 | |
| 0.00 | 4.18 | 0.00 | 2.92 | 11.88 | 353.87 | -45.35 | 80.39 | 0.7084 | -215.0 | -255.8 | |
| 0.00 | 2.13 | 0.00 | 1.53 | 16.56 | 352.65 | -46.57 | 73.97 | 0.7266 | -137.0 | -298.3 | |
| 0.00 | 5.24 | 0.00 | 3.68 | 12.35 | 353.73 | -45.49 | 79.72 | 0.7103 | 297.0 | 219.3 | |
| 0.00 | 0.80 | 0.00 | 0.56 | 12.59 | 353.67 | -45.55 | 79.39 | 0.7111 | 266.0 | 158.8 | |
| 0.00 | 1.16 | 0.00 | 0.81 | 10.83 | 353.69 | -45.53 | 81.88 | 0.7103 | -699.0 | -603.1 | |
| 0.00 | 0.71 | 0.00 | 0.50 | 10.83 | 353.42 | -45.80 | 81.87 | 0.7135 | -591.0 | -489.9 | |
| 0.00 | 0.71 | 0.00 | 0.50 | 10.45 | 353.23 | -45.99 | 82.41 | 0.7158 | -447.0 | -422.4 | |
| 0.00 | 0.36 | 0.00 | 0.26 | 10.53 | 352.37 | -46.85 | 82.31 | 0.7261 | -293.0 | -328.0 | |
| 0.00 | 0.89 | 0.00 | 0.64 | 12.44 | 351.95 | -47.27 | 79.68 | 0.7314 | -296.0 | -302.6 | |
| 0.00 | 1.60 | 0.00 | 1.17 | 13.59 | 351.48 | -47.74 | 78.14 | 0.7374 | -329.0 | -262.7 | |
| 0.00 | 1.69 | 0.00 | 1.23 | 12.27 | 351.72 | -47.50 | 79.93 | 0.7340 | -370.0 | -294.8 | |
| 0.00 | 0.71 | 0.00 | 0.51 | 10.73 | 351.88 | -47.34 | 82.04 | 0.7319 | -487.0 | -401.9 | |
| 0.00 | 1.07 | 0.00 | 0.77 | 10.45 | 351.80 | -47.42 | 82.42 | 0.7329 | -499.0 | -463.5 | |
| 0.00 | 1.16 | 0.00 | 0.84 | 10.62 | 351.72 | -47.50 | 82.18 | 0.7338 | -457.0 | -446.3 | |
| 0.00 | 2.49 | 0.00 | 1.88 | 16.12 | 349.82 | -49.40 | 74.89 | 0.7578 | -522.0 | -421.3 | |
| 0.00 | 1.33 | 0.00 | 1.00 | 13.49 | 350.34 | -48.88 | 78.34 | 0.7503 | 387.0 | 438.2 | |
| 0.00 | 1.78 | 0.00 | 1.32 | 11.95 | 350.59 | -48.63 | 80.39 | 0.7469 | 664.0 | 485.8 | |
| 0.00 | 1.16 | 0.00 | 0.87 | 13.80 | 349.72 | -49.50 | 77.96 | 0.7573 | 742.0 | 673.0 | |
| 9.06 | 14.04 | 6.87 | 10.63 | 13.42 | 349.55 | -49.67 | 78.48 | 0.7591 | 743.9 | 531.1 | |
| 0.00 | 1.24 | 0.00 | 0.99 | 14.39 | 347.22 | -52.00 | 77.32 | 0.7846 | -217.0 | -206.6 | |
| 0.00 | 1.87 | 0.00 | 1.48 | 13.56 | 347.18 | -52.04 | 78.38 | 0.7847 | 652.0 | 543.0 | |
| 0.53 | 1.95 | 0.43 | 1.58 | 15.28 | 346.51 | -52.71 | 76.23 | 0.7925 | 670.7 | 554.8 | |
| 0.00 | 1.60 | 0.00 | 1.28 | 13.13 | 346.91 | -52.31 | 78.94 | 0.7875 | 261.0 | 327.5 | |
| 0.00 | 1.07 | 0.00 | 0.87 | 13.59 | 345.94 | -53.28 | 78.38 | 0.7977 | 589.0 | 544.4 | |
| 0.00 | 4.44 | 0.00 | 3.75 | 15.56 | 344.65 | -54.57 | 75.98 | 0.8113 | 323.0 | 434.8 | |
| 0.00 | 0.53 | 0.00 | 0.46 | 15.85 | 343.82 | -55.40 | 75.66 | 0.8195 | 468.0 | 420.0 | |
| 0.00 | 0.89 | 0.00 | 0.77 | 15.71 | 343.65 | -55.57 | 75.84 | 0.8210 | 469.0 | 376.7 | |
| 0.00 | 1.16 | 0.00 | 0.99 | 12.09 | 344.07 | -55.15 | 80.27 | 0.8163 | 674.0 | 571.1 | |
| 0.00 | 0.36 | 0.00 | 0.31 | 14.20 | 343.36 | -55.86 | 77.70 | 0.8235 | 571.0 | 526.5 | |
| 0.00 | 0.98 | 0.00 | 0.84 | 11.65 | 343.71 | -55.51 | 80.80 | 0.8199 | 283.0 | 265.6 | |
| 0.00 | 0.71 | 0.00 | 0.61 | 10.08 | 343.93 | -55.29 | 82.72 | 0.8181 | 280.0 | 301.5 | |
| 0.00 | 1.51 | 0.00 | 1.53 | 19.93 | 337.90 | -61.32 | 71.15 | 0.8735 | 463.0 | 361.8 | |
| 0.00 | 0.71 | 0.00 | 0.65 | 9.52 | 341.45 | -57.77 | 83.29 | 0.8421 | -330.0 | -345.2 | |
| 0.00 | 0.53 | 0.00 | 0.49 | 9.04 | 340.94 | -58.28 | 83.83 | 0.8471 | -312.0 | -315.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
