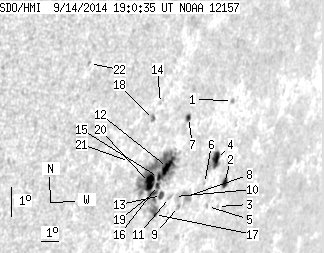

SDO HMI 2014-09-14 19:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.14 | 179.47 | 44.39 | 174.46 | -14.87 | 94.27 | 55.61 | 247.93 | 0.8624 | -280.5 | -226.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-14 19:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.13 | 0.00 | 2.21 | -12.74 | 97.08 | 58.42 | 251.19 | 0.8797 | -565.0 | -449.2 | |
| 3.91 | 5.78 | 4.23 | 6.25 | -15.46 | 97.73 | 59.07 | 248.44 | 0.8908 | 301.8 | 165.9 | |
| 0.00 | 0.89 | 0.00 | 0.97 | -16.20 | 97.65 | 58.98 | 247.62 | 0.8919 | 119.0 | 70.7 | |
| 8.26 | 15.90 | 8.62 | 16.56 | -14.60 | 96.87 | 58.20 | 249.10 | 0.8823 | 516.1 | 323.9 | |
| 0.00 | 0.71 | 0.00 | 0.76 | -16.12 | 97.01 | 58.34 | 247.49 | 0.8870 | 232.0 | 132.1 | |
| 0.00 | 0.62 | 0.00 | 0.65 | -15.32 | 96.47 | 57.80 | 248.18 | 0.8810 | 275.0 | 262.7 | |
| 2.04 | 3.55 | 1.97 | 3.43 | -13.01 | 94.65 | 55.98 | 250.13 | 0.8607 | 594.0 | 433.6 | |
| 0.00 | 8.44 | 0.00 | 8.57 | -15.64 | 95.55 | 56.88 | 247.53 | 0.8748 | 66.0 | 59.9 | |
| 0.00 | 2.40 | 0.00 | 2.42 | -15.93 | 95.21 | 56.55 | 247.11 | 0.8729 | -324.0 | -247.1 | |
| 0.00 | 1.87 | 0.00 | 1.86 | -15.56 | 94.83 | 56.16 | 247.38 | 0.8689 | 50.0 | 63.4 | |
| 0.00 | 1.69 | 0.00 | 1.67 | -15.56 | 94.55 | 55.88 | 247.28 | 0.8667 | -290.0 | -258.5 | |
| 8.53 | 130.78 | 8.21 | 124.93 | -14.54 | 94.04 | 55.37 | 248.22 | 0.8597 | -665.8 | -317.1 | |
| 2.58 | -12.00 | 2.50 | -12.00 | -15.44 | 94.06 | 55.39 | 247.23 | 0.8624 | -309.8 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.57 | -12.38 | 92.92 | 54.25 | 250.26 | 0.8443 | -398.0 | -341.0 | |
| 2.22 | -12.00 | 2.12 | -12.00 | -14.82 | 93.65 | 54.98 | 247.78 | 0.8573 | -653.7 | 999999 | |
| 1.78 | -12.00 | 1.71 | -12.00 | -15.08 | 93.69 | 55.02 | 247.50 | 0.8584 | -476.8 | 999999 | |
| 0.89 | -12.00 | 0.87 | -12.00 | -16.04 | 93.91 | 55.24 | 246.52 | 0.8629 | 308.5 | 999999 | |
| 0.00 | 1.69 | 0.00 | 1.55 | -12.87 | 92.70 | 54.03 | 249.64 | 0.8437 | -570.0 | -467.2 | |
| 3.20 | -12.00 | 3.06 | -12.00 | -15.32 | 93.51 | 54.84 | 247.18 | 0.8576 | -567.3 | 999999 | |
| 11.73 | -12.00 | 11.10 | -12.00 | -14.93 | 93.20 | 54.53 | 247.49 | 0.8539 | -927.2 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.89 | -14.12 | 91.84 | 53.18 | 247.92 | 0.8399 | -519.0 | -410.7 | |
| 0.00 | 1.42 | 0.00 | 1.17 | -10.70 | 88.89 | 50.22 | 250.78 | 0.8019 | -586.0 | -391.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
