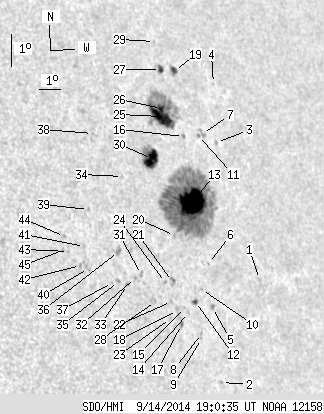

SDO HMI 2014-09-14 19:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 94.08 | 440.97 | 71.26 | 333.36 | 15.28 | 88.16 | 49.50 | 283.99 | 0.7583 | 459.3 | 261.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-14 19:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.51 | 0.00 | 1.21 | 12.21 | 91.13 | 52.46 | 279.89 | 0.7890 | -425.0 | -372.9 | |
| 0.00 | 1.07 | 0.00 | 0.81 | 9.32 | 88.57 | 49.90 | 276.11 | 0.7614 | -605.0 | -513.7 | |
| 0.00 | 1.69 | 0.00 | 1.34 | 16.51 | 90.37 | 51.70 | 285.40 | 0.7827 | 430.0 | 286.5 | |
| 0.00 | 0.53 | 0.00 | 0.43 | 18.29 | 90.94 | 52.27 | 287.61 | 0.7901 | 263.0 | 213.2 | |
| 0.00 | 2.40 | 0.00 | 1.83 | 11.60 | 88.64 | 49.98 | 279.11 | 0.7620 | -651.0 | -495.7 | |
| 0.00 | 0.89 | 0.00 | 0.68 | 12.93 | 88.80 | 50.13 | 280.86 | 0.7640 | -185.0 | -139.4 | |
| 0.00 | 3.64 | 0.00 | 2.85 | 16.84 | 89.79 | 51.12 | 285.88 | 0.7769 | 493.0 | 413.9 | |
| 0.00 | 1.51 | 0.00 | 1.14 | 10.87 | 87.95 | 49.28 | 278.15 | 0.7542 | -601.0 | -491.8 | |
| 0.00 | 0.89 | 0.00 | 0.67 | 10.72 | 87.91 | 49.25 | 277.95 | 0.7538 | -430.0 | -336.3 | |
| 0.00 | 1.07 | 0.00 | 0.81 | 12.18 | 88.26 | 49.60 | 279.89 | 0.7579 | -337.0 | -294.0 | |
| 0.00 | 1.16 | 0.00 | 0.90 | 16.80 | 89.57 | 50.90 | 285.85 | 0.7746 | 602.0 | 571.2 | |
| 1.24 | 2.67 | 0.93 | 2.00 | 11.85 | 87.89 | 49.23 | 279.46 | 0.7537 | -703.9 | -563.3 | |
| 42.82 | 270.36 | 32.66 | 205.63 | 14.85 | 88.60 | 49.93 | 283.40 | 0.7627 | 1140.4 | 421.2 | |
| 0.00 | 1.07 | 0.00 | 0.79 | 11.55 | 87.49 | 48.82 | 279.07 | 0.7491 | -499.0 | -372.7 | |
| 0.00 | 0.62 | 0.00 | 0.46 | 11.72 | 87.34 | 48.68 | 279.29 | 0.7474 | -547.0 | -517.0 | |
| 0.00 | 1.69 | 0.00 | 1.30 | 16.84 | 88.84 | 50.17 | 285.98 | 0.7668 | 446.0 | 456.6 | |
| 0.44 | 1.78 | 0.33 | 1.31 | 11.22 | 87.09 | 48.42 | 278.63 | 0.7444 | -692.4 | -575.9 | |
| 0.00 | 3.11 | 0.00 | 2.30 | 11.66 | 87.00 | 48.34 | 279.22 | 0.7435 | -668.0 | -560.8 | |
| 2.40 | 4.89 | 1.86 | 3.79 | 18.86 | 89.18 | 50.51 | 288.56 | 0.7727 | -637.9 | -372.2 | |
| 0.00 | 1.78 | 0.00 | 1.32 | 13.91 | 87.45 | 48.78 | 282.23 | 0.7494 | 414.0 | 401.1 | |
| 0.00 | 3.64 | 0.00 | 2.69 | 12.55 | 86.99 | 48.32 | 280.42 | 0.7435 | -440.0 | -457.3 | |
| 0.00 | 1.33 | 0.00 | 0.98 | 11.95 | 86.79 | 48.13 | 279.62 | 0.7412 | -678.0 | -618.7 | |
| 0.00 | 1.24 | 0.00 | 0.91 | 11.45 | 86.63 | 47.96 | 278.94 | 0.7392 | -634.0 | -543.5 | |
| 0.00 | 0.98 | 0.00 | 0.72 | 12.55 | 86.66 | 47.99 | 280.43 | 0.7398 | -697.0 | -632.1 | |
| 21.77 | 71.61 | 16.48 | 54.38 | 17.54 | 88.01 | 49.35 | 286.99 | 0.7587 | 820.7 | 153.3 | |
| 4.44 | -25.00 | 3.37 | -25.00 | 17.78 | 88.10 | 49.44 | 287.29 | 0.7599 | 689.8 | 999999 | |
| 2.49 | 3.91 | 1.91 | 3.00 | 18.96 | 88.52 | 49.85 | 288.77 | 0.7658 | 555.2 | 347.8 | |
| 0.00 | 0.98 | 0.00 | 0.71 | 12.02 | 86.07 | 47.40 | 279.73 | 0.7328 | -709.0 | -649.8 | |
| 0.00 | 0.89 | 0.00 | 0.68 | 19.83 | 88.59 | 49.92 | 289.89 | 0.7678 | 424.0 | 306.6 | |
| 18.48 | 28.70 | 13.72 | 21.30 | 16.32 | 87.10 | 48.43 | 285.48 | 0.7474 | 807.1 | 469.6 | |
| 0.00 | 2.22 | 0.00 | 1.60 | 12.89 | 85.64 | 46.97 | 280.94 | 0.7281 | -708.0 | -495.4 | |
| 0.00 | 0.71 | 0.00 | 0.51 | 12.82 | 85.35 | 46.69 | 280.86 | 0.7247 | -668.0 | -592.8 | |
| 0.00 | 1.95 | 0.00 | 1.39 | 12.64 | 84.95 | 46.28 | 280.64 | 0.7199 | -629.0 | -541.3 | |
| 0.00 | 1.16 | 0.00 | 0.83 | 15.90 | 85.61 | 46.94 | 285.08 | 0.7301 | 610.0 | 470.7 | |
| 0.00 | 1.24 | 0.00 | 0.88 | 12.77 | 84.58 | 45.91 | 280.83 | 0.7155 | -656.0 | -685.6 | |
| 0.00 | 4.35 | 0.00 | 3.09 | 13.67 | 84.80 | 46.13 | 282.07 | 0.7187 | -538.0 | -440.8 | |
| 0.00 | 0.62 | 0.00 | 0.44 | 12.76 | 84.31 | 45.64 | 280.84 | 0.7123 | -655.0 | -472.4 | |
| 0.00 | 0.71 | 0.00 | 0.51 | 17.31 | 84.68 | 46.01 | 287.15 | 0.7212 | 609.0 | 566.8 | |
| 0.00 | 1.24 | 0.00 | 0.87 | 15.04 | 83.82 | 45.15 | 284.10 | 0.7083 | -417.0 | -354.7 | |
| 0.00 | 2.31 | 0.00 | 1.60 | 13.27 | 83.37 | 44.70 | 281.63 | 0.7013 | -589.0 | -613.1 | |
| 0.00 | 1.78 | 0.00 | 1.23 | 13.95 | 83.36 | 44.69 | 282.59 | 0.7017 | -743.0 | -497.8 | |
| 0.00 | 1.42 | 0.00 | 0.98 | 13.39 | 83.05 | 44.38 | 281.83 | 0.6975 | -769.0 | -645.4 | |
| 0.00 | 1.07 | 0.00 | 0.73 | 13.86 | 82.64 | 43.97 | 282.53 | 0.6929 | -718.0 | -571.7 | |
| 0.00 | 1.16 | 0.00 | 0.79 | 14.32 | 82.58 | 43.91 | 283.21 | 0.6926 | -650.0 | -568.0 | |
| 0.00 | 1.42 | 0.00 | 0.97 | 13.91 | 82.39 | 43.72 | 282.63 | 0.6899 | -732.0 | -610.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
