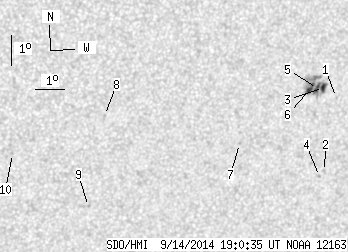

SDO HMI 2014-09-14 19:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.02 | 40.36 | 6.69 | 24.43 | -15.71 | 65.51 | 26.85 | 229.01 | 0.5778 | 467.0 | 509.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-14 19:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.36 | 0.00 | 0.22 | -15.68 | 66.89 | 28.22 | 230.55 | 0.5919 | 301.0 | 518.5 | |
| 0.00 | 1.42 | 0.00 | 0.89 | -18.12 | 66.86 | 28.19 | 227.34 | 0.6127 | 603.0 | 447.0 | |
| 3.02 | 33.50 | 1.84 | 20.32 | -15.33 | 66.38 | 27.71 | 230.52 | 0.5832 | 722.6 | 637.8 | |
| 0.00 | 1.16 | 0.00 | 0.72 | -18.27 | 66.70 | 28.04 | 226.99 | 0.6126 | 814.0 | 631.2 | |
| 3.29 | -3.00 | 2.00 | -3.00 | -15.34 | 66.17 | 27.50 | 230.28 | 0.5811 | 926.6 | 999999 | |
| 4.71 | -3.00 | 2.85 | -3.00 | -15.33 | 65.92 | 27.25 | 230.05 | 0.5782 | 989.4 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.48 | -17.00 | 63.67 | 25.00 | 225.38 | 0.5700 | 778.0 | 658.6 | |
| 0.00 | 0.89 | 0.00 | 0.51 | -15.83 | 58.92 | 20.26 | 220.94 | 0.5103 | -744.0 | -587.6 | |
| 0.00 | 1.16 | 0.00 | 0.68 | -18.83 | 58.73 | 20.06 | 216.93 | 0.5424 | -652.0 | -507.7 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -16.95 | 55.98 | 17.31 | 215.18 | 0.4961 | -709.0 | -470.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
