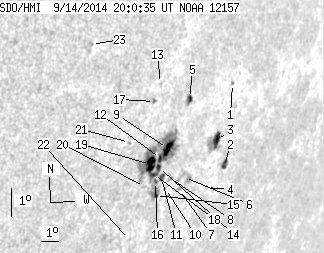

SDO HMI 2014-09-14 20:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.61 | 167.13 | 44.42 | 164.92 | -14.88 | 94.27 | 56.16 | 248.11 | 0.8668 | -293.0 | -209.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-14 20:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 1.31 | -12.80 | 97.09 | 58.98 | 251.30 | 0.8842 | -503.0 | -476.1 | |
| 3.47 | 5.15 | 3.81 | 5.67 | -15.46 | 97.73 | 59.62 | 248.61 | 0.8948 | 323.5 | 173.4 | |
| 7.11 | 17.24 | 7.54 | 18.25 | -14.59 | 96.85 | 58.73 | 249.28 | 0.8863 | 536.4 | 308.3 | |
| 0.00 | 0.27 | 0.00 | 0.29 | -16.11 | 96.93 | 58.82 | 247.66 | 0.8905 | 310.0 | 272.0 | |
| 2.40 | 5.33 | 2.36 | 5.24 | -13.00 | 94.65 | 56.54 | 250.32 | 0.8653 | 528.9 | 463.0 | |
| 0.00 | 11.55 | 0.00 | 11.86 | -15.61 | 95.39 | 57.28 | 247.70 | 0.8777 | 83.0 | 147.6 | |
| 0.00 | 1.78 | 0.00 | 1.82 | -15.99 | 95.26 | 57.15 | 247.25 | 0.8777 | -323.0 | -279.2 | |
| 0.00 | 2.31 | 0.00 | 2.31 | -15.55 | 94.56 | 56.44 | 247.48 | 0.8711 | -347.0 | -241.5 | |
| 8.26 | 114.35 | 8.07 | 110.86 | -14.52 | 93.97 | 55.86 | 248.41 | 0.8637 | -627.8 | -345.2 | |
| 0.00 | 0.62 | 0.00 | 0.62 | -15.86 | 94.40 | 56.29 | 247.09 | 0.8707 | -469.0 | -387.6 | |
| 2.22 | -9.00 | 2.19 | -9.00 | -15.46 | 94.01 | 55.90 | 247.39 | 0.8665 | -335.8 | 999999 | |
| 2.22 | -9.00 | 2.16 | -9.00 | -14.82 | 93.70 | 55.58 | 247.99 | 0.8622 | -647.2 | 999999 | |
| 0.00 | 1.16 | 0.00 | 1.07 | -12.33 | 92.83 | 54.72 | 250.48 | 0.8482 | -163.0 | -267.8 | |
| 2.67 | -9.00 | 2.60 | -9.00 | -15.10 | 93.70 | 55.58 | 247.67 | 0.8630 | -441.5 | 999999 | |
| 1.51 | -9.00 | 1.49 | -9.00 | -16.03 | 93.91 | 55.80 | 246.73 | 0.8673 | 373.9 | 999999 | |
| 0.89 | -9.00 | 0.87 | -9.00 | -15.56 | 93.71 | 55.60 | 247.18 | 0.8644 | -410.6 | 999999 | |
| 0.00 | 1.24 | 0.00 | 1.16 | -12.89 | 92.68 | 54.57 | 249.80 | 0.8484 | -584.0 | -517.0 | |
| 2.58 | -9.00 | 2.50 | -9.00 | -15.31 | 93.50 | 55.39 | 247.38 | 0.8620 | -596.1 | 999999 | |
| 11.28 | -9.00 | 10.83 | -9.00 | -14.95 | 93.20 | 55.08 | 247.67 | 0.8585 | -917.6 | 999999 | |
| 0.00 | 1.42 | 0.00 | 1.37 | -15.66 | 93.14 | 55.03 | 246.87 | 0.8601 | -414.0 | -371.4 | |
| 0.00 | 1.16 | 0.00 | 1.06 | -14.09 | 91.76 | 53.64 | 248.11 | 0.8439 | -511.0 | -434.8 | |
| 0.00 | 0.71 | 0.00 | 0.70 | -17.37 | 93.04 | 54.93 | 244.96 | 0.8642 | -97.0 | -132.9 | |
| 0.00 | 1.60 | 0.00 | 1.33 | -10.69 | 88.86 | 50.75 | 250.99 | 0.8070 | -463.0 | -396.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
