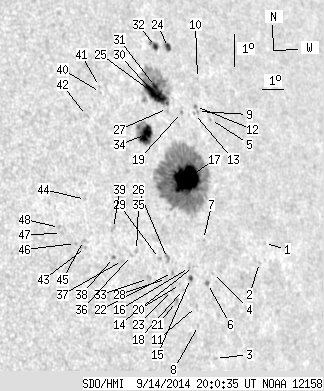

SDO HMI 2014-09-14 20:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 90.19 | 437.94 | 69.09 | 334.70 | 15.31 | 88.18 | 50.06 | 283.98 | 0.7645 | 450.3 | 273.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-14 20:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.27 | 0.00 | 0.22 | 12.52 | 91.81 | 53.69 | 280.27 | 0.8017 | -321.0 | -318.3 | |
| 0.00 | 0.80 | 0.00 | 0.65 | 11.98 | 91.39 | 53.27 | 279.59 | 0.7974 | -361.0 | -359.9 | |
| 0.00 | 1.16 | 0.00 | 0.89 | 9.33 | 88.54 | 50.43 | 276.15 | 0.7673 | -587.0 | -502.3 | |
| 0.00 | 0.80 | 0.00 | 0.62 | 11.88 | 88.99 | 50.87 | 279.48 | 0.7719 | -317.0 | -245.9 | |
| 0.00 | 1.24 | 0.00 | 1.00 | 16.49 | 90.37 | 52.26 | 285.33 | 0.7885 | 361.0 | 267.7 | |
| 0.71 | 2.22 | 0.55 | 1.71 | 11.61 | 88.67 | 50.56 | 279.12 | 0.7684 | -558.4 | -411.2 | |
| 0.00 | 0.62 | 0.00 | 0.48 | 12.94 | 88.83 | 50.72 | 280.85 | 0.7704 | -191.0 | -148.3 | |
| 0.00 | 1.16 | 0.00 | 0.88 | 10.40 | 87.95 | 49.84 | 277.53 | 0.7605 | -412.0 | -359.1 | |
| 0.00 | 1.24 | 0.00 | 0.99 | 16.79 | 89.82 | 51.71 | 285.76 | 0.7830 | 378.0 | 348.6 | |
| 0.00 | 0.80 | 0.00 | 0.64 | 17.78 | 90.22 | 52.10 | 286.98 | 0.7879 | 481.0 | 420.1 | |
| 0.00 | 1.33 | 0.00 | 1.01 | 10.97 | 87.99 | 49.87 | 278.29 | 0.7608 | -533.0 | -460.2 | |
| 0.00 | 1.42 | 0.00 | 1.13 | 16.95 | 89.78 | 51.67 | 285.97 | 0.7827 | 517.0 | 420.8 | |
| 0.00 | 0.89 | 0.00 | 0.70 | 16.75 | 89.65 | 51.54 | 285.72 | 0.7812 | 510.0 | 426.9 | |
| 0.00 | 0.98 | 0.00 | 0.75 | 12.18 | 88.14 | 50.03 | 279.88 | 0.7626 | -396.0 | -316.3 | |
| 1.07 | 2.75 | 0.81 | 2.09 | 11.83 | 87.91 | 49.79 | 279.43 | 0.7600 | -651.3 | -500.7 | |
| 0.00 | 1.07 | 0.00 | 0.81 | 12.17 | 87.95 | 49.83 | 279.86 | 0.7605 | -530.0 | -453.0 | |
| 42.91 | 265.74 | 33.08 | 204.23 | 14.84 | 88.58 | 50.46 | 283.34 | 0.7684 | 1111.8 | 420.7 | |
| 0.00 | 0.80 | 0.00 | 0.60 | 11.54 | 87.50 | 49.39 | 279.04 | 0.7554 | -491.0 | -429.7 | |
| 0.00 | 1.33 | 0.00 | 1.04 | 16.84 | 89.03 | 50.91 | 285.90 | 0.7747 | 457.0 | 398.5 | |
| 0.00 | 0.71 | 0.00 | 0.53 | 11.70 | 87.40 | 49.28 | 279.26 | 0.7543 | -494.0 | -487.2 | |
| 0.00 | 2.84 | 0.00 | 2.12 | 11.21 | 87.09 | 48.98 | 278.60 | 0.7508 | -639.0 | -558.0 | |
| 0.00 | 1.16 | 0.00 | 0.86 | 12.09 | 87.12 | 49.00 | 279.78 | 0.7512 | -644.0 | -580.1 | |
| 0.00 | 2.49 | 0.00 | 1.85 | 11.56 | 86.99 | 48.87 | 279.07 | 0.7496 | -475.0 | -458.3 | |
| 2.93 | 4.53 | 2.30 | 3.56 | 18.85 | 89.18 | 51.06 | 288.47 | 0.7784 | -552.0 | -384.8 | |
| 0.80 | 77.03 | 0.62 | 59.06 | 17.17 | 88.45 | 50.34 | 286.39 | 0.7689 | 431.2 | 199.7 | |
| 0.00 | 3.47 | 0.00 | 2.58 | 12.53 | 86.99 | 48.88 | 280.38 | 0.7499 | -515.0 | -444.9 | |
| 0.00 | 1.51 | 0.00 | 1.16 | 17.02 | 88.40 | 50.28 | 286.20 | 0.7682 | 190.0 | 220.1 | |
| 0.00 | 0.89 | 0.00 | 0.66 | 11.94 | 86.80 | 48.68 | 279.59 | 0.7475 | -721.0 | -659.7 | |
| 0.00 | 1.07 | 0.00 | 0.79 | 12.57 | 86.62 | 48.51 | 280.43 | 0.7457 | -709.0 | -662.4 | |
| 18.84 | -25.00 | 14.41 | -25.00 | 17.50 | 87.98 | 49.87 | 286.86 | 0.7642 | 831.3 | 999999 | |
| 3.47 | -25.00 | 2.66 | -25.00 | 17.74 | 88.07 | 49.96 | 287.17 | 0.7655 | 733.7 | 999999 | |
| 2.49 | 5.51 | 1.93 | 4.27 | 18.94 | 88.56 | 50.44 | 288.66 | 0.7720 | 434.8 | 363.7 | |
| 0.00 | 3.02 | 0.00 | 2.21 | 12.02 | 85.98 | 47.86 | 279.71 | 0.7381 | -656.0 | -617.1 | |
| 16.97 | 28.43 | 12.73 | 21.32 | 16.34 | 87.08 | 48.97 | 285.44 | 0.7533 | 799.0 | 486.1 | |
| 0.00 | 2.13 | 0.00 | 1.55 | 12.90 | 85.64 | 47.53 | 280.93 | 0.7346 | -663.0 | -473.1 | |
| 0.00 | 1.24 | 0.00 | 0.90 | 12.77 | 85.38 | 47.27 | 280.77 | 0.7315 | -593.0 | -495.1 | |
| 0.00 | 1.69 | 0.00 | 1.21 | 12.66 | 84.94 | 46.83 | 280.63 | 0.7263 | -591.0 | -509.4 | |
| 0.00 | 1.42 | 0.00 | 1.01 | 12.79 | 84.57 | 46.45 | 280.83 | 0.7219 | -703.0 | -647.9 | |
| 0.00 | 2.93 | 0.00 | 2.10 | 13.66 | 84.78 | 46.67 | 282.02 | 0.7250 | -479.0 | -436.5 | |
| 0.00 | 0.89 | 0.00 | 0.65 | 17.79 | 85.45 | 47.33 | 287.60 | 0.7368 | 609.0 | 490.2 | |
| 0.00 | 0.80 | 0.00 | 0.58 | 17.98 | 85.47 | 47.35 | 287.85 | 0.7373 | 494.0 | 371.6 | |
| 0.00 | 1.87 | 0.00 | 1.34 | 17.16 | 84.58 | 46.47 | 286.86 | 0.7261 | 631.0 | 589.3 | |
| 0.00 | 0.80 | 0.00 | 0.56 | 13.20 | 83.41 | 45.30 | 281.47 | 0.7085 | -709.0 | -633.1 | |
| 0.00 | 0.71 | 0.00 | 0.50 | 14.64 | 83.78 | 45.67 | 283.47 | 0.7140 | -425.0 | -377.5 | |
| 0.00 | 1.42 | 0.00 | 0.99 | 13.41 | 83.38 | 45.26 | 281.78 | 0.7082 | -696.0 | -660.2 | |
| 0.00 | 0.71 | 0.00 | 0.49 | 13.35 | 83.01 | 44.90 | 281.73 | 0.7037 | -812.0 | -746.9 | |
| 0.00 | 1.07 | 0.00 | 0.74 | 13.71 | 82.48 | 44.37 | 282.28 | 0.6976 | -374.0 | -455.5 | |
| 0.00 | 0.98 | 0.00 | 0.67 | 13.89 | 82.44 | 44.33 | 282.55 | 0.6972 | -801.0 | -736.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
