SDO HMI 2014-09-14 21:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 88.68 | 426.42 | 68.70 | 329.29 | 15.28 | 88.13 | 50.56 | 283.90 | 0.7698 | 422.3 | 249.1 | |
|
previous
or next observation for the same group /

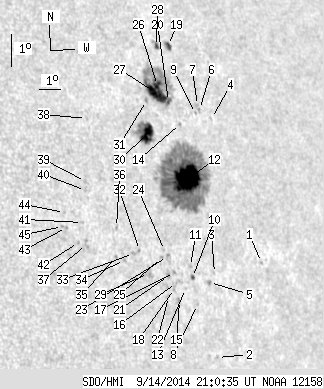

back to the solar disc SDO HMI 2014-09-14 21:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.74 | 11.95 | 91.46 | 53.89 | 279.55 | 0.8037 | -489.0 | -408.2 | |
| 0.00 | 1.24 | 0.00 | 0.97 | 9.34 | 88.58 | 51.02 | 276.17 | 0.7738 | -571.0 | -447.4 | |
| 0.00 | 0.80 | 0.00 | 0.63 | 11.86 | 89.03 | 51.46 | 279.44 | 0.7783 | -297.0 | -228.3 | |
| 0.00 | 0.62 | 0.00 | 0.51 | 16.50 | 90.40 | 52.84 | 285.29 | 0.7944 | 375.0 | 316.0 | |
| 0.00 | 1.87 | 0.00 | 1.46 | 11.61 | 88.71 | 51.15 | 279.12 | 0.7749 | -611.0 | -502.0 | |
| 0.00 | 0.80 | 0.00 | 0.64 | 16.82 | 89.90 | 52.34 | 285.75 | 0.7896 | 335.0 | 268.6 | |
| 0.00 | 1.60 | 0.00 | 1.28 | 16.95 | 89.85 | 52.29 | 285.91 | 0.7891 | 560.0 | 446.9 | |
| 0.00 | 0.89 | 0.00 | 0.68 | 11.01 | 87.98 | 50.42 | 278.34 | 0.7669 | -502.0 | -464.1 | |
| 0.00 | 0.98 | 0.00 | 0.78 | 16.72 | 89.66 | 52.09 | 285.64 | 0.7870 | 361.0 | 388.4 | |
| 0.80 | 1.95 | 0.61 | 1.50 | 11.84 | 87.94 | 50.38 | 279.42 | 0.7665 | -607.7 | -502.2 | |
| 0.00 | 1.07 | 0.00 | 0.82 | 12.18 | 87.93 | 50.37 | 279.87 | 0.7664 | -547.0 | -446.7 | |
| 43.54 | 258.20 | 33.93 | 200.70 | 14.82 | 88.57 | 51.00 | 283.28 | 0.7742 | 1066.0 | 410.3 | |
| 0.00 | 0.27 | 0.00 | 0.20 | 11.54 | 87.53 | 49.97 | 279.04 | 0.7619 | -464.0 | -423.3 | |
| 0.00 | 0.71 | 0.00 | 0.56 | 16.50 | 88.80 | 51.24 | 285.42 | 0.7779 | -126.0 | -66.6 | |
| 0.00 | 1.69 | 0.00 | 1.28 | 11.21 | 87.16 | 49.60 | 278.60 | 0.7578 | -577.0 | -539.5 | |
| 0.00 | 1.07 | 0.00 | 0.81 | 11.76 | 87.15 | 49.59 | 279.33 | 0.7577 | -553.0 | -477.8 | |
| 0.00 | 1.78 | 0.00 | 1.34 | 12.07 | 87.13 | 49.57 | 279.74 | 0.7575 | -693.0 | -581.4 | |
| 0.00 | 2.04 | 0.00 | 1.54 | 11.59 | 87.01 | 49.45 | 279.11 | 0.7561 | -537.0 | -500.4 | |
| 2.40 | 4.62 | 1.91 | 3.67 | 18.89 | 89.16 | 51.60 | 288.45 | 0.7839 | -528.0 | -353.1 | |
| 1.69 | 75.35 | 1.32 | 58.50 | 17.21 | 88.47 | 50.91 | 286.38 | 0.7750 | 457.6 | 144.0 | |
| 0.00 | 1.95 | 0.00 | 1.47 | 12.01 | 86.83 | 49.27 | 279.66 | 0.7542 | -695.0 | -633.2 | |
| 0.00 | 1.24 | 0.00 | 0.93 | 11.38 | 86.68 | 49.12 | 278.83 | 0.7524 | -576.0 | -519.3 | |
| 0.00 | 2.04 | 0.00 | 1.54 | 12.58 | 86.93 | 49.37 | 280.42 | 0.7554 | -530.0 | -369.0 | |
| 0.00 | 0.36 | 0.00 | 0.27 | 12.77 | 86.84 | 49.27 | 280.68 | 0.7544 | -367.0 | -296.0 | |
| 0.00 | 1.07 | 0.00 | 0.80 | 12.58 | 86.64 | 49.08 | 280.42 | 0.7522 | -653.0 | -569.9 | |
| 4.44 | -20.00 | 3.45 | -20.00 | 17.74 | 88.12 | 50.56 | 287.10 | 0.7719 | 585.1 | 999999 | |
| 18.13 | -20.00 | 14.02 | -20.00 | 17.51 | 87.98 | 50.42 | 286.81 | 0.7701 | 813.8 | 999999 | |
| 1.60 | 4.26 | 1.26 | 3.35 | 18.92 | 88.56 | 50.99 | 288.56 | 0.7777 | 458.9 | 343.9 | |
| 0.00 | 7.73 | 0.00 | 5.71 | 12.15 | 85.92 | 48.36 | 279.88 | 0.7439 | -292.0 | -412.4 | |
| 16.08 | 30.39 | 12.20 | 23.01 | 16.35 | 87.12 | 49.55 | 285.39 | 0.7597 | 775.8 | 482.9 | |
| 0.00 | 1.60 | 0.00 | 1.22 | 17.34 | 87.43 | 49.86 | 286.66 | 0.7640 | 532.0 | 390.7 | |
| 0.00 | 1.16 | 0.00 | 0.85 | 12.88 | 85.69 | 48.13 | 280.87 | 0.7414 | -630.0 | -572.8 | |
| 0.00 | 1.69 | 0.00 | 1.23 | 12.81 | 85.39 | 47.83 | 280.79 | 0.7380 | -661.0 | -570.1 | |
| 0.00 | 1.33 | 0.00 | 0.97 | 12.64 | 84.94 | 47.37 | 280.58 | 0.7327 | -588.0 | -518.2 | |
| 0.00 | 0.98 | 0.00 | 0.70 | 12.80 | 84.61 | 47.05 | 280.81 | 0.7289 | -727.0 | -640.8 | |
| 0.00 | 1.24 | 0.00 | 0.90 | 13.66 | 84.83 | 47.27 | 281.98 | 0.7320 | -405.0 | -327.5 | |
| 0.00 | 3.47 | 0.00 | 2.45 | 13.27 | 83.37 | 45.81 | 281.54 | 0.7146 | -653.0 | -639.1 | |
| 0.00 | 0.89 | 0.00 | 0.64 | 17.06 | 84.46 | 46.90 | 286.66 | 0.7309 | 566.0 | 537.7 | |
| 0.00 | 1.51 | 0.00 | 1.08 | 15.17 | 83.83 | 46.27 | 284.14 | 0.7215 | -169.0 | -165.1 | |
| 0.00 | 0.71 | 0.00 | 0.51 | 14.90 | 83.75 | 46.19 | 283.78 | 0.7204 | -568.0 | -492.9 | |
| 0.00 | 0.98 | 0.00 | 0.69 | 13.95 | 83.36 | 45.80 | 282.49 | 0.7150 | -663.0 | -507.6 | |
| 0.00 | 0.71 | 0.00 | 0.50 | 13.36 | 83.04 | 45.48 | 281.70 | 0.7107 | -756.0 | -686.1 | |
| 0.00 | 1.07 | 0.00 | 0.74 | 13.86 | 82.63 | 45.07 | 282.43 | 0.7061 | -622.0 | -577.0 | |
| 0.00 | 0.71 | 0.00 | 0.50 | 14.32 | 82.66 | 45.10 | 283.08 | 0.7069 | -652.0 | -560.6 | |
| 0.00 | 0.89 | 0.00 | 0.62 | 13.91 | 82.47 | 44.90 | 282.51 | 0.7042 | -783.0 | -646.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
