SDO HMI 2014-09-14 22:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.11 | 158.53 | 43.33 | 161.07 | -14.82 | 94.29 | 57.28 | 248.55 | 0.8755 | -273.1 | -244.7 | |
|
previous
or next observation for the same group /

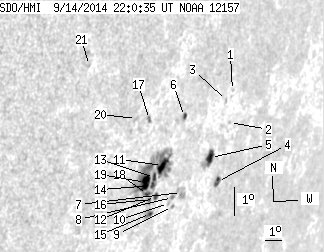

back to the solar disc SDO HMI 2014-09-14 22:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.71 | 0.00 | 0.78 | -12.48 | 97.41 | 60.40 | 252.05 | 0.8943 | -162.0 | -169.0 | |
| 0.00 | 0.80 | 0.00 | 0.89 | -13.53 | 97.65 | 60.64 | 250.99 | 0.8981 | -264.0 | -188.9 | |
| 0.00 | 1.33 | 0.00 | 1.45 | -12.77 | 97.15 | 60.14 | 251.66 | 0.8929 | -556.0 | -431.7 | |
| 3.29 | 5.33 | 3.75 | 6.08 | -15.42 | 97.76 | 60.75 | 248.99 | 0.9028 | 273.2 | 137.0 | |
| 7.20 | 13.60 | 7.92 | 14.92 | -14.56 | 96.90 | 59.89 | 249.66 | 0.8949 | 451.7 | 304.8 | |
| 1.60 | 3.02 | 1.62 | 3.07 | -13.00 | 94.70 | 57.69 | 250.68 | 0.8746 | 521.3 | 484.5 | |
| 0.00 | 8.97 | 0.00 | 9.56 | -15.53 | 95.56 | 58.55 | 248.20 | 0.8872 | 126.0 | 146.4 | |
| 0.00 | 1.87 | 0.00 | 1.96 | -15.63 | 95.07 | 58.06 | 247.93 | 0.8837 | 323.0 | 272.2 | |
| 0.00 | 1.69 | 0.00 | 1.79 | -15.94 | 95.21 | 58.20 | 247.64 | 0.8855 | -370.0 | -304.3 | |
| 0.00 | 1.51 | 0.00 | 1.58 | -15.81 | 94.91 | 57.90 | 247.68 | 0.8830 | -126.0 | -131.4 | |
| 9.06 | 109.74 | 9.13 | 109.33 | -14.49 | 93.99 | 56.98 | 248.83 | 0.8726 | -602.9 | -387.8 | |
| 1.95 | -11.00 | 1.99 | -11.00 | -15.48 | 94.00 | 56.99 | 247.74 | 0.8752 | -300.8 | 999999 | |
| 2.04 | -11.00 | 2.05 | -11.00 | -14.84 | 93.68 | 56.67 | 248.34 | 0.8710 | -576.2 | 999999 | |
| 2.22 | -11.00 | 2.23 | -11.00 | -15.09 | 93.67 | 56.66 | 248.05 | 0.8716 | -448.2 | 999999 | |
| 1.33 | 4.27 | 1.36 | 4.34 | -16.03 | 93.95 | 56.94 | 247.13 | 0.8762 | 308.8 | 187.7 | |
| 0.71 | -11.00 | 0.72 | -11.00 | -15.55 | 93.68 | 56.67 | 247.56 | 0.8729 | -358.2 | 999999 | |
| 0.62 | 2.49 | 0.59 | 2.38 | -12.88 | 92.67 | 55.66 | 250.17 | 0.8577 | -565.1 | -450.0 | |
| 1.60 | -11.00 | 1.60 | -11.00 | -15.36 | 93.49 | 56.48 | 247.70 | 0.8709 | -550.5 | 999999 | |
| 10.49 | -11.00 | 10.37 | -11.00 | -14.95 | 93.21 | 56.20 | 248.06 | 0.8676 | -861.3 | 999999 | |
| 0.00 | 2.49 | 0.00 | 2.33 | -12.76 | 91.92 | 54.91 | 250.05 | 0.8511 | -25.0 | -91.6 | |
| 0.00 | 0.71 | 0.00 | 0.61 | -10.77 | 88.92 | 51.91 | 251.30 | 0.8184 | -416.0 | -416.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
