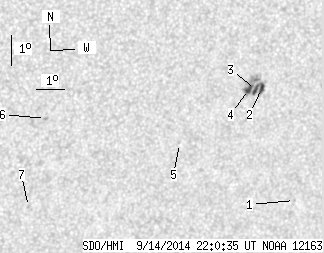

SDO HMI 2014-09-14 22:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.49 | 32.88 | 6.47 | 20.22 | -15.58 | 65.56 | 28.55 | 230.92 | 0.5951 | 523.9 | 544.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-14 22:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.58 | -19.12 | 68.29 | 31.28 | 229.01 | 0.6523 | 611.0 | 465.0 | |
| 3.47 | 28.52 | 2.14 | 17.59 | -15.29 | 66.39 | 29.38 | 232.18 | 0.6013 | 698.7 | 716.2 | |
| 3.02 | -2.00 | 1.87 | -2.00 | -15.31 | 66.18 | 29.17 | 231.95 | 0.5991 | 859.8 | 999999 | |
| 4.00 | -2.00 | 2.46 | -2.00 | -15.30 | 65.92 | 28.91 | 231.74 | 0.5962 | 963.7 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.38 | -16.92 | 63.72 | 26.71 | 227.34 | 0.5869 | 724.0 | 508.3 | |
| 0.00 | 1.69 | 0.00 | 0.98 | -15.84 | 58.95 | 21.94 | 223.19 | 0.5272 | -763.0 | -638.3 | |
| 0.00 | 1.16 | 0.00 | 0.69 | -18.74 | 58.73 | 21.72 | 219.23 | 0.5562 | -560.0 | -464.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
