SDO HMI 2014-09-14 23:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.38 | 143.23 | 41.10 | 148.14 | -14.89 | 94.29 | 57.83 | 248.65 | 0.8800 | -274.9 | -240.2 | |
|
previous
or next observation for the same group /

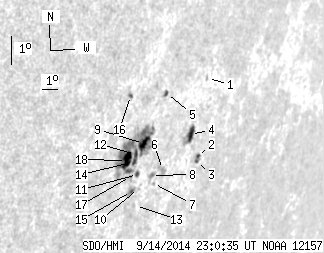

back to the solar disc SDO HMI 2014-09-14 23:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 1.38 | -12.80 | 97.18 | 60.72 | 251.79 | 0.8973 | -450.0 | -353.8 | |
| 1.60 | 4.53 | 1.86 | 5.27 | -15.35 | 97.69 | 61.24 | 249.21 | 0.9060 | 300.7 | 153.3 | |
| 0.98 | -2.00 | 1.14 | -2.00 | -15.51 | 97.71 | 61.25 | 249.04 | 0.9064 | 322.0 | 999999 | |
| 7.11 | 13.86 | 7.96 | 15.48 | -14.55 | 96.86 | 60.40 | 249.82 | 0.8985 | 425.5 | 326.5 | |
| 1.33 | 2.75 | 1.38 | 2.84 | -13.00 | 94.74 | 58.28 | 250.86 | 0.8793 | 521.1 | 386.6 | |
| 0.00 | 6.93 | 0.00 | 7.51 | -15.52 | 95.56 | 59.10 | 248.38 | 0.8912 | 147.0 | 131.8 | |
| 0.00 | 1.24 | 0.00 | 1.34 | -15.94 | 95.20 | 58.74 | 247.82 | 0.8896 | -358.0 | -317.3 | |
| 0.00 | 3.73 | 0.00 | 3.98 | -15.65 | 94.94 | 58.49 | 248.05 | 0.8870 | 281.0 | 189.7 | |
| 8.44 | 98.55 | 8.64 | 99.70 | -14.51 | 93.98 | 57.52 | 248.97 | 0.8769 | -555.5 | -399.6 | |
| 0.00 | 0.36 | 0.00 | 0.37 | -16.00 | 94.33 | 57.87 | 247.47 | 0.8832 | -287.0 | -384.2 | |
| 1.60 | -9.00 | 1.65 | -9.00 | -15.52 | 94.05 | 57.59 | 247.90 | 0.8799 | -281.7 | 999999 | |
| 2.67 | -9.00 | 2.71 | -9.00 | -14.83 | 93.64 | 57.18 | 248.52 | 0.8750 | -519.4 | 999999 | |
| 0.00 | 0.98 | 0.00 | 1.03 | -16.56 | 94.41 | 57.95 | 246.89 | 0.8852 | -281.0 | -221.2 | |
| 1.96 | -9.00 | 1.99 | -9.00 | -15.06 | 93.68 | 57.22 | 248.28 | 0.8759 | -435.1 | 999999 | |
| 1.42 | 5.60 | 1.47 | 5.80 | -16.05 | 93.94 | 57.48 | 247.28 | 0.8804 | 279.2 | 141.8 | |
| 0.80 | 2.04 | 0.78 | 1.98 | -12.83 | 92.61 | 56.15 | 250.38 | 0.8617 | -541.9 | -387.9 | |
| 0.36 | 1.42 | 0.36 | 1.46 | -15.54 | 93.65 | 57.19 | 247.75 | 0.8769 | -369.5 | -274.7 | |
| 11.11 | -9.00 | 11.16 | -9.00 | -14.97 | 93.18 | 56.72 | 248.21 | 0.8718 | -829.4 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
