SDO HMI 2014-09-15 02:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.22 | 27.65 | 3.94 | 17.36 | -15.47 | 65.45 | 30.64 | 233.02 | 0.6167 | 358.5 | 507.6 | |
|
previous
or next observation for the same group /

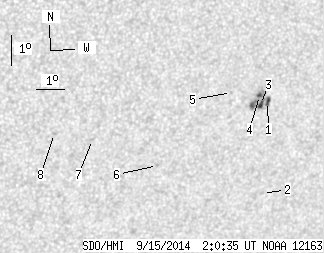

back to the solar disc SDO HMI 2014-09-15 02:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.49 | 21.51 | 1.58 | 13.59 | -15.23 | 66.47 | 31.67 | 234.32 | 0.6259 | 638.2 | 741.1 | |
| 0.00 | 1.07 | 0.00 | 0.70 | -18.28 | 66.86 | 32.05 | 230.71 | 0.6533 | 679.0 | 520.9 | |
| 2.31 | -1.00 | 1.46 | -1.00 | -15.31 | 66.23 | 31.42 | 234.00 | 0.6238 | 787.4 | 999999 | |
| 1.42 | -1.00 | 0.90 | -1.00 | -15.01 | 66.14 | 31.34 | 234.33 | 0.6206 | 962.1 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.55 | -14.84 | 65.10 | 30.29 | 233.64 | 0.6077 | 534.0 | 387.9 | |
| 0.00 | 0.98 | 0.00 | 0.61 | -17.07 | 62.79 | 27.98 | 228.46 | 0.6014 | 328.0 | 148.5 | |
| 0.00 | 1.78 | 0.00 | 1.07 | -16.07 | 60.35 | 25.54 | 227.20 | 0.5667 | -680.0 | -516.5 | |
| 0.00 | 1.42 | 0.00 | 0.84 | -15.80 | 58.99 | 24.19 | 226.03 | 0.5500 | -680.0 | -545.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
