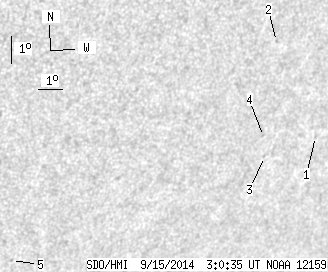

SDO HMI 2014-09-15 03:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.54 | 0.00 | 3.43 | -23.24 | 73.58 | 39.32 | 230.30 | 0.7586 | 309.6 | 254.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-15 03:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 0.93 | -23.17 | 77.21 | 42.95 | 232.83 | 0.7883 | 427.0 | 331.1 | |
| 0.00 | 0.89 | 0.00 | 0.65 | -19.68 | 74.30 | 40.04 | 234.97 | 0.7421 | 556.0 | 496.4 | |
| 0.00 | 0.71 | 0.00 | 0.55 | -23.67 | 75.14 | 40.88 | 231.00 | 0.7736 | 595.0 | 477.8 | |
| 0.00 | 0.80 | 0.00 | 0.61 | -22.95 | 74.83 | 40.57 | 231.59 | 0.7665 | 577.0 | 522.3 | |
| 0.00 | 0.98 | 0.00 | 0.69 | -26.58 | 65.66 | 31.40 | 220.80 | 0.7154 | -607.0 | -494.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
