SDO HMI 2014-09-15 04:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.15 | 120.13 | 34.44 | 135.12 | -14.87 | 94.19 | 60.48 | 249.49 | 0.8995 | -237.9 | -230.2 | |
|
previous
or next observation for the same group /

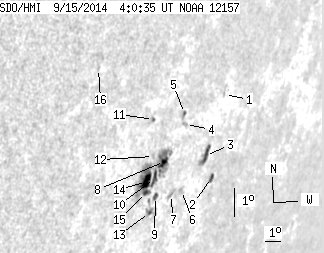

back to the solar disc SDO HMI 2014-09-15 04:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 1.42 | -12.67 | 97.28 | 63.57 | 252.70 | 0.9168 | -517.0 | -417.2 | |
| 2.31 | 3.82 | 2.97 | 4.91 | -15.36 | 97.73 | 64.02 | 249.98 | 0.9242 | 182.6 | 84.5 | |
| 5.87 | 11.20 | 7.24 | 13.79 | -14.56 | 96.87 | 63.16 | 250.59 | 0.9173 | 416.1 | 301.4 | |
| 0.00 | 2.67 | 0.00 | 3.03 | -13.35 | 94.95 | 61.24 | 251.35 | 0.9020 | 521.0 | 408.2 | |
| 0.71 | 3.02 | 0.80 | 3.40 | -12.97 | 94.72 | 61.01 | 251.69 | 0.8997 | 410.0 | 474.4 | |
| 0.00 | 3.47 | 0.00 | 4.14 | -15.55 | 95.74 | 62.03 | 249.23 | 0.9118 | 115.0 | 102.9 | |
| 0.00 | 4.36 | 0.00 | 5.09 | -15.59 | 95.03 | 61.32 | 248.98 | 0.9071 | 246.0 | 121.2 | |
| 2.49 | 73.27 | 2.78 | 80.46 | -14.43 | 94.08 | 60.37 | 249.95 | 0.8980 | -510.2 | -442.6 | |
| 1.87 | 3.38 | 2.10 | 3.81 | -15.55 | 94.03 | 60.33 | 248.74 | 0.9001 | -251.3 | -142.8 | |
| 4.45 | -8.00 | 4.92 | -8.00 | -14.93 | 93.68 | 59.97 | 249.29 | 0.8962 | -431.0 | 999999 | |
| 0.00 | 1.42 | 0.00 | 1.50 | -12.94 | 92.77 | 59.06 | 251.17 | 0.8851 | -456.0 | -392.9 | |
| 0.00 | 1.78 | 0.00 | 1.93 | -14.18 | 93.28 | 59.57 | 249.98 | 0.8916 | -302.0 | -260.5 | |
| 1.07 | 9.16 | 1.20 | 10.31 | -16.05 | 93.90 | 60.19 | 248.16 | 0.9002 | 399.6 | 13.9 | |
| 9.16 | -8.00 | 9.99 | -8.00 | -14.97 | 93.20 | 59.49 | 249.10 | 0.8928 | -822.7 | 999999 | |
| 2.22 | -8.00 | 2.44 | -8.00 | -15.33 | 93.30 | 59.59 | 248.74 | 0.8944 | -573.3 | 999999 | |
| 0.00 | 1.42 | 0.00 | 1.33 | -10.91 | 88.95 | 55.25 | 252.26 | 0.8491 | -145.0 | -246.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
