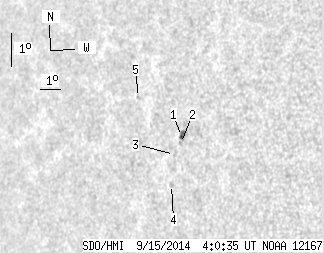

SDO HMI 2014-09-15 04:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.16 | 11.01 | 0.89 | 8.62 | 7.74 | 342.55 | -51.15 | 85.88 | 0.7760 | -609.5 | -506.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-15 04:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.16 | 4.53 | 0.89 | 3.51 | 7.96 | 343.02 | -50.69 | 85.63 | 0.7708 | -780.2 | -606.3 | |
| 0.00 | 1.33 | 0.00 | 1.03 | 7.74 | 343.01 | -50.70 | 85.91 | 0.7710 | -587.0 | -526.2 | |
| 0.00 | 1.24 | 0.00 | 0.97 | 7.39 | 342.77 | -50.93 | 86.35 | 0.7738 | -583.0 | -450.8 | |
| 0.00 | 2.13 | 0.00 | 1.66 | 6.47 | 342.76 | -50.94 | 87.53 | 0.7746 | -615.0 | -471.2 | |
| 0.00 | 1.78 | 0.00 | 1.45 | 8.92 | 340.71 | -53.00 | 84.27 | 0.7952 | -501.0 | -390.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
