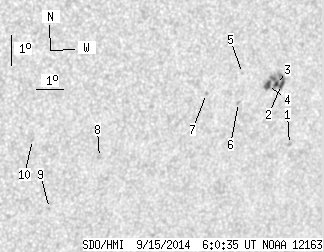

SDO HMI 2014-09-15 06:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.03 | 31.22 | 4.55 | 20.06 | -15.57 | 65.27 | 32.66 | 234.61 | 0.6396 | 268.3 | 436.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-15 06:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.59 | -17.29 | 67.20 | 34.59 | 234.02 | 0.6721 | 696.0 | 505.7 | |
| 2.05 | 22.94 | 1.33 | 14.87 | -15.27 | 66.49 | 33.88 | 236.07 | 0.6504 | 623.5 | 693.7 | |
| 1.78 | -2.00 | 1.15 | -2.00 | -15.26 | 66.30 | 33.69 | 235.94 | 0.6483 | 901.7 | 999999 | |
| 3.20 | -2.00 | 2.07 | -2.00 | -15.27 | 65.97 | 33.35 | 235.66 | 0.6446 | 887.7 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.68 | -14.80 | 64.95 | 32.34 | 235.46 | 0.6301 | 765.0 | 590.7 | |
| 0.00 | 1.69 | 0.00 | 1.08 | -15.75 | 64.97 | 32.36 | 234.22 | 0.6372 | 560.0 | 435.3 | |
| 0.00 | 1.07 | 0.00 | 0.67 | -15.37 | 63.72 | 31.11 | 233.66 | 0.6207 | -746.0 | -588.2 | |
| 0.00 | 1.69 | 0.00 | 1.04 | -17.23 | 60.16 | 27.55 | 227.84 | 0.5982 | -698.0 | -556.6 | |
| 0.00 | 0.80 | 0.00 | 0.49 | -18.83 | 58.65 | 26.03 | 224.22 | 0.5979 | -647.0 | -558.8 | |
| 0.00 | 1.07 | 0.00 | 0.64 | -16.49 | 57.69 | 25.08 | 226.15 | 0.5658 | -535.0 | -479.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
