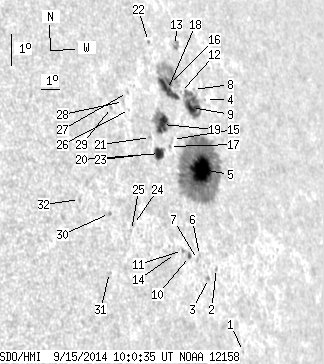

SDO HMI 2014-09-15 10:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 79.39 | 364.23 | 72.17 | 332.10 | 15.53 | 88.21 | 57.79 | 283.88 | 0.8417 | 482.0 | 230.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-15 10:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.62 | 0.00 | 0.58 | 9.22 | 89.15 | 58.72 | 276.42 | 0.8510 | -357.0 | -305.7 | |
| 0.00 | 1.24 | 0.00 | 1.14 | 11.85 | 88.36 | 57.94 | 279.49 | 0.8430 | -465.0 | -368.2 | |
| 0.00 | 1.42 | 0.00 | 1.28 | 11.60 | 87.81 | 57.39 | 279.18 | 0.8380 | -492.0 | -390.4 | |
| 0.00 | 0.36 | 0.00 | 0.34 | 16.92 | 89.86 | 59.43 | 285.46 | 0.8568 | 567.0 | 549.2 | |
| 34.94 | 213.46 | 32.21 | 196.33 | 14.87 | 88.64 | 58.22 | 283.08 | 0.8455 | 958.5 | 323.5 | |
| 0.00 | 0.36 | 0.00 | 0.32 | 12.33 | 87.54 | 57.12 | 280.06 | 0.8353 | -318.0 | -292.0 | |
| 0.00 | 1.60 | 0.00 | 1.43 | 12.23 | 87.39 | 56.97 | 279.93 | 0.8339 | -601.0 | -486.4 | |
| 0.00 | 0.98 | 0.00 | 0.92 | 17.29 | 89.31 | 58.88 | 285.91 | 0.8521 | 204.0 | 166.0 | |
| 8.36 | 31.65 | 7.78 | 29.52 | 16.77 | 88.92 | 58.50 | 285.31 | 0.8485 | -401.2 | 86.6 | |
| 0.98 | 2.40 | 0.86 | 2.12 | 12.36 | 86.98 | 56.56 | 280.09 | 0.8300 | -531.4 | -428.1 | |
| 0.00 | 1.51 | 0.00 | 1.32 | 12.58 | 86.66 | 56.24 | 280.35 | 0.8270 | -364.0 | -374.2 | |
| 0.00 | 0.62 | 0.00 | 0.57 | 17.28 | 88.51 | 58.09 | 285.94 | 0.8450 | 181.0 | 223.7 | |
| 0.00 | 4.45 | 0.00 | 4.15 | 18.70 | 88.96 | 58.54 | 287.60 | 0.8497 | -223.0 | -284.3 | |
| 0.00 | 0.62 | 0.00 | 0.54 | 12.53 | 86.25 | 55.83 | 280.28 | 0.8230 | -565.0 | -562.9 | |
| 0.00 | 1.07 | 0.00 | 0.95 | 15.93 | 87.40 | 56.98 | 284.38 | 0.8344 | 160.0 | 131.8 | |
| 1.51 | 49.07 | 1.38 | 44.61 | 17.61 | 88.02 | 57.60 | 286.36 | 0.8408 | 395.8 | 102.0 | |
| 0.00 | 1.42 | 0.00 | 1.26 | 15.74 | 87.14 | 56.72 | 284.16 | 0.8320 | 246.0 | 302.3 | |
| 13.42 | -16.00 | 12.15 | -16.00 | 17.44 | 87.82 | 57.39 | 286.17 | 0.8389 | 737.4 | 999999 | |
| 12.45 | 28.18 | 11.03 | 24.97 | 16.43 | 87.05 | 56.62 | 285.00 | 0.8313 | 707.9 | 359.3 | |
| 7.73 | 9.78 | 6.76 | 8.54 | 15.59 | 86.51 | 56.08 | 284.00 | 0.8260 | 701.7 | 443.4 | |
| 0.00 | 1.16 | 0.00 | 1.00 | 16.11 | 86.22 | 55.80 | 284.65 | 0.8235 | 622.0 | 567.4 | |
| 0.00 | 0.89 | 0.00 | 0.80 | 18.98 | 87.49 | 57.07 | 288.03 | 0.8368 | -480.0 | -478.4 | |
| 0.00 | 1.07 | 0.00 | 0.91 | 15.65 | 85.31 | 54.88 | 284.13 | 0.8144 | -239.0 | -169.6 | |
| 0.00 | 1.24 | 0.00 | 1.03 | 13.61 | 84.34 | 53.92 | 281.64 | 0.8042 | -413.0 | -366.6 | |
| 0.00 | 0.98 | 0.00 | 0.81 | 13.45 | 84.18 | 53.76 | 281.44 | 0.8025 | -565.0 | -509.0 | |
| 0.00 | 0.53 | 0.00 | 0.46 | 17.06 | 85.46 | 55.04 | 285.85 | 0.8167 | 365.0 | 313.7 | |
| 0.00 | 0.98 | 0.00 | 0.84 | 17.58 | 85.59 | 55.16 | 286.48 | 0.8182 | 449.0 | 442.5 | |
| 0.00 | 1.16 | 0.00 | 0.98 | 17.33 | 85.25 | 54.83 | 286.20 | 0.8148 | 408.0 | 328.9 | |
| 0.00 | 1.33 | 0.00 | 1.11 | 17.21 | 84.54 | 54.12 | 286.11 | 0.8078 | 587.0 | 513.9 | |
| 0.00 | 1.42 | 0.00 | 1.15 | 14.06 | 83.23 | 52.81 | 282.24 | 0.7930 | -512.0 | -449.6 | |
| 0.00 | 1.42 | 0.00 | 1.14 | 12.30 | 82.69 | 52.27 | 280.02 | 0.7869 | -207.0 | -273.9 | |
| 0.00 | 1.24 | 0.00 | 0.98 | 14.63 | 81.89 | 51.47 | 283.02 | 0.7792 | -504.0 | -433.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
